Front Wheel Speed Sensor and Associated Parts: Removal

  1. Remove speed sensor connector.
  2. Remove sensor cable fixing bolt (Upper side).
  3. Remove sensor cable fixing bolt (Lower side).
  4. Remove the speed sensor cable fixing bolts (1) and caliper fixing bolt (2) from caliper side speed sensor cable bracket (3).

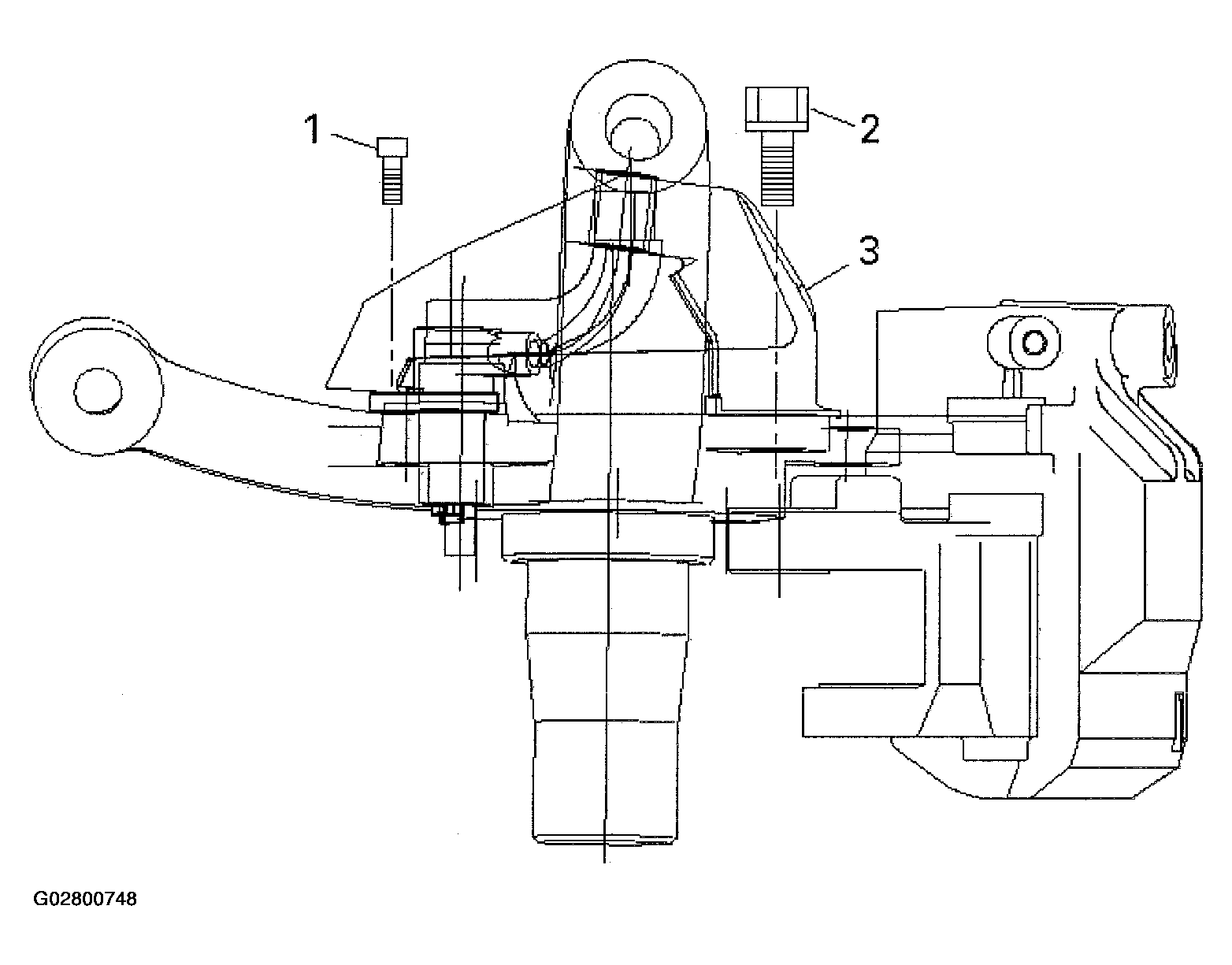

    Fig 1: Removing Speed Sensor Cable Fixing Bolts And Caliper Fixing Bolt
    G02800748Courtesy of ISUZU MOTOR CO.
  5. Remove speed sensor.
