Torque Specifications

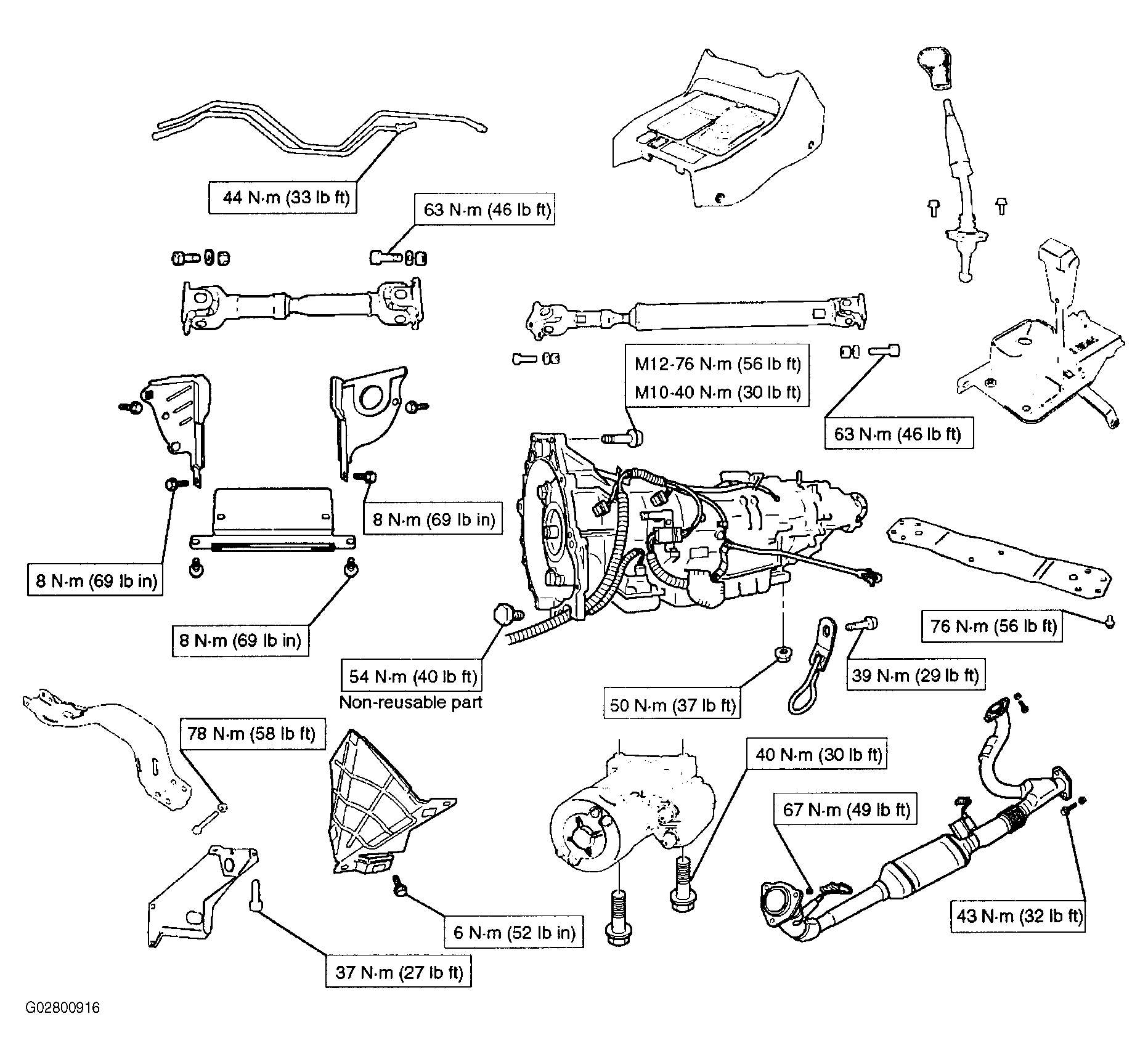

Fig 1: Automatic Transmission Torque Specifications (1 Of 3)
G02800916Courtesy of ISUZU MOTOR CO.

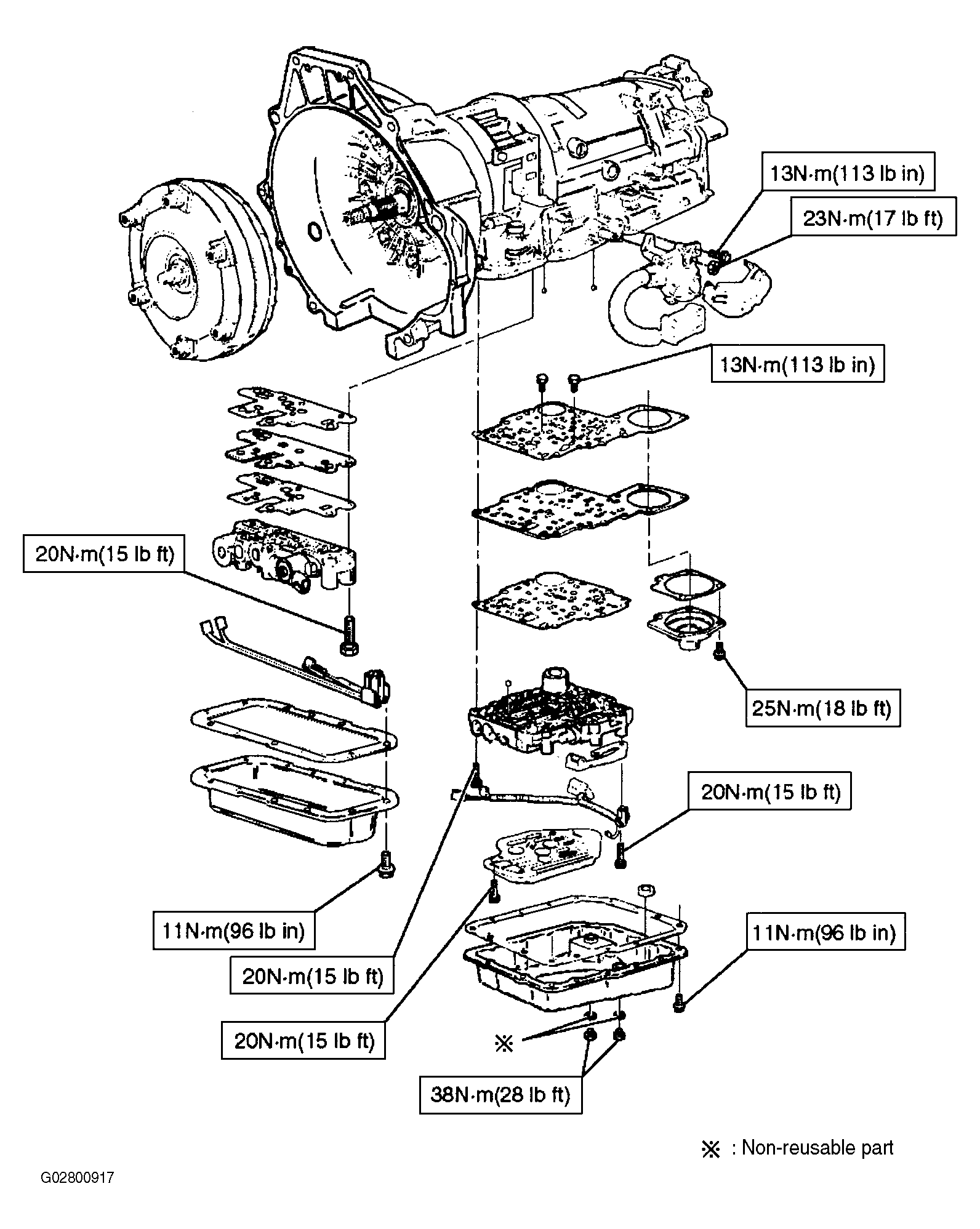

Fig 2: Automatic Transmission Torque Specifications (2 Of 3)
G02800917Courtesy of ISUZU MOTOR CO.

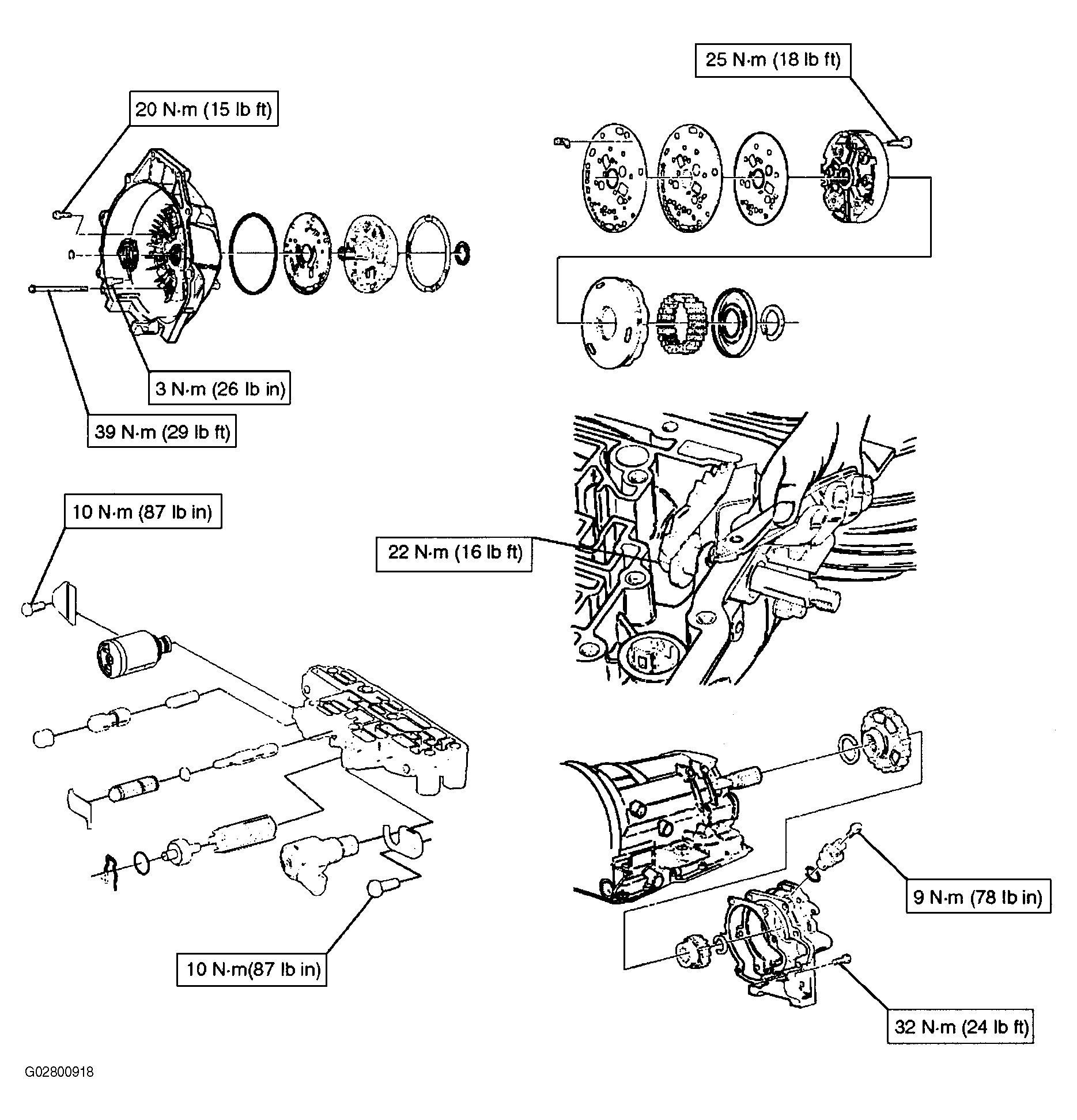

Fig 3: Automatic Transmission Torque Specifications (3 Of 3)
G02800918Courtesy of ISUZU MOTOR CO.
