Torque Specifications

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

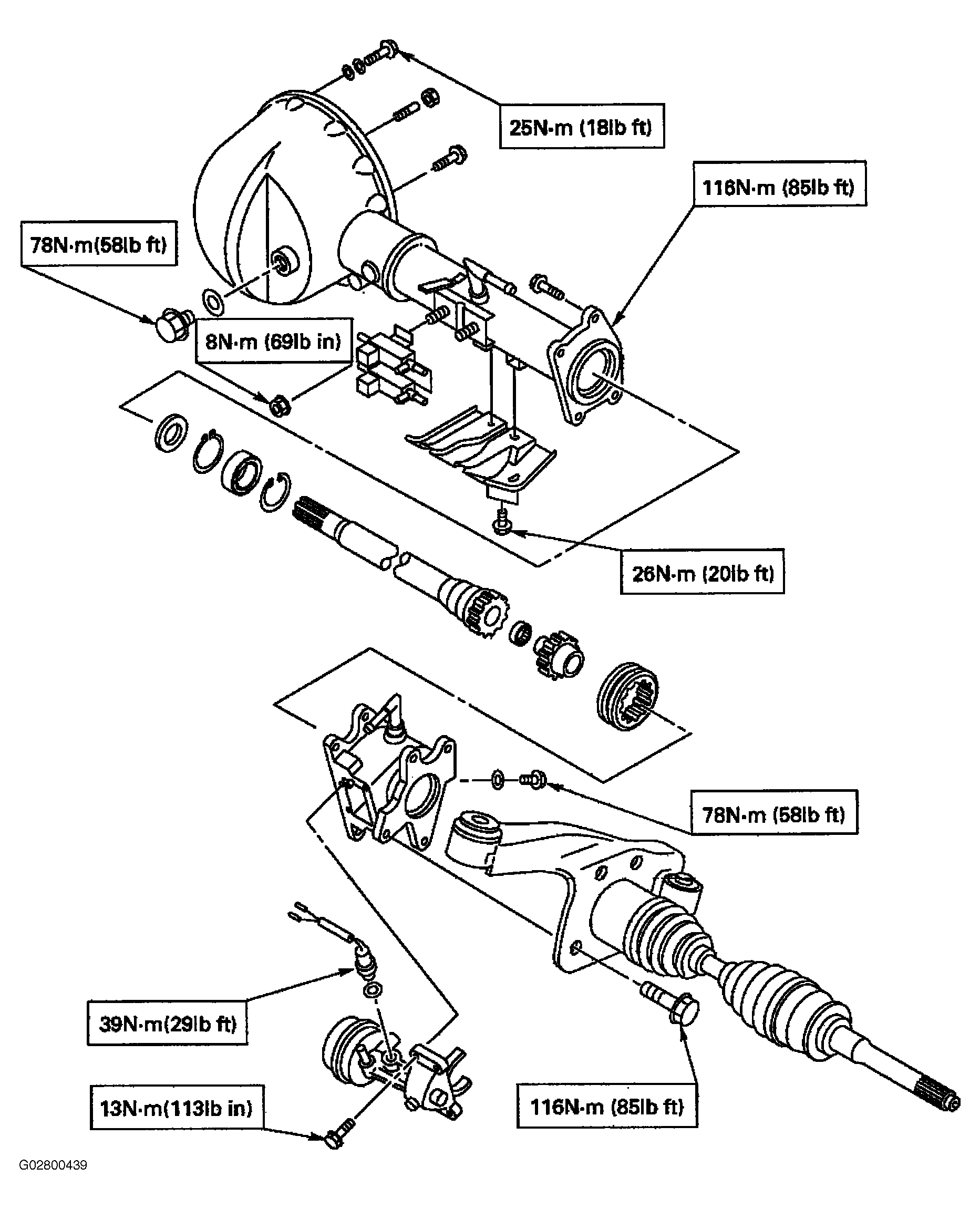

Fig 1: Shift On The Fly System Torque Specifications
G02800439Courtesy of ISUZU MOTOR CO.
