Visual Check

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check and see if the inner shaft has any abnormalities such as wear and damage.

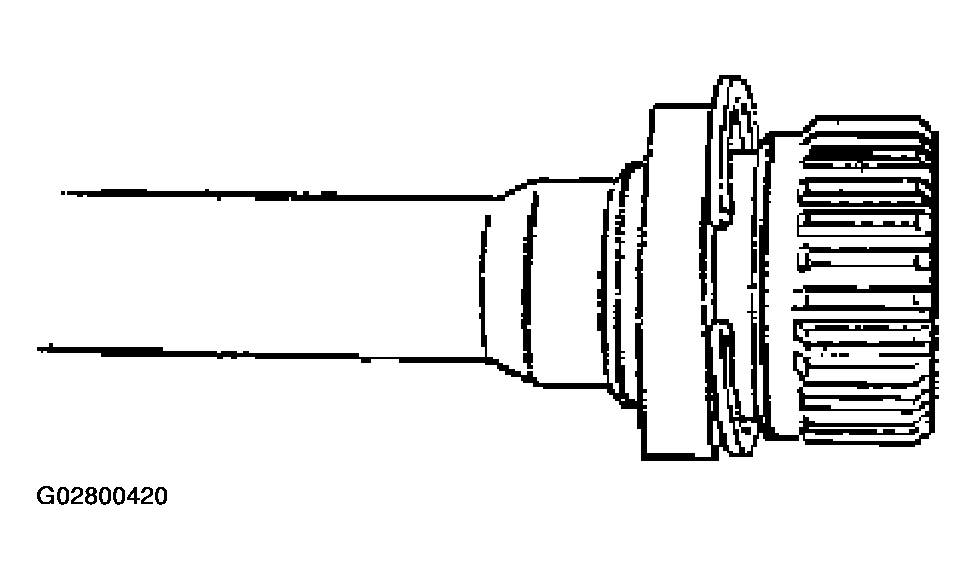

    Fig 1: Checking Inner Shaft
    G02800420Courtesy of ISUZU MOTOR CO.
  2. When inspecting the inner shaft, be sure to check and see if its splined part is twisted, worn, or cracked. If so, replace with a new shaft. In case of an abnormality in its gear part (a slide with sleeve), replace the shaft.

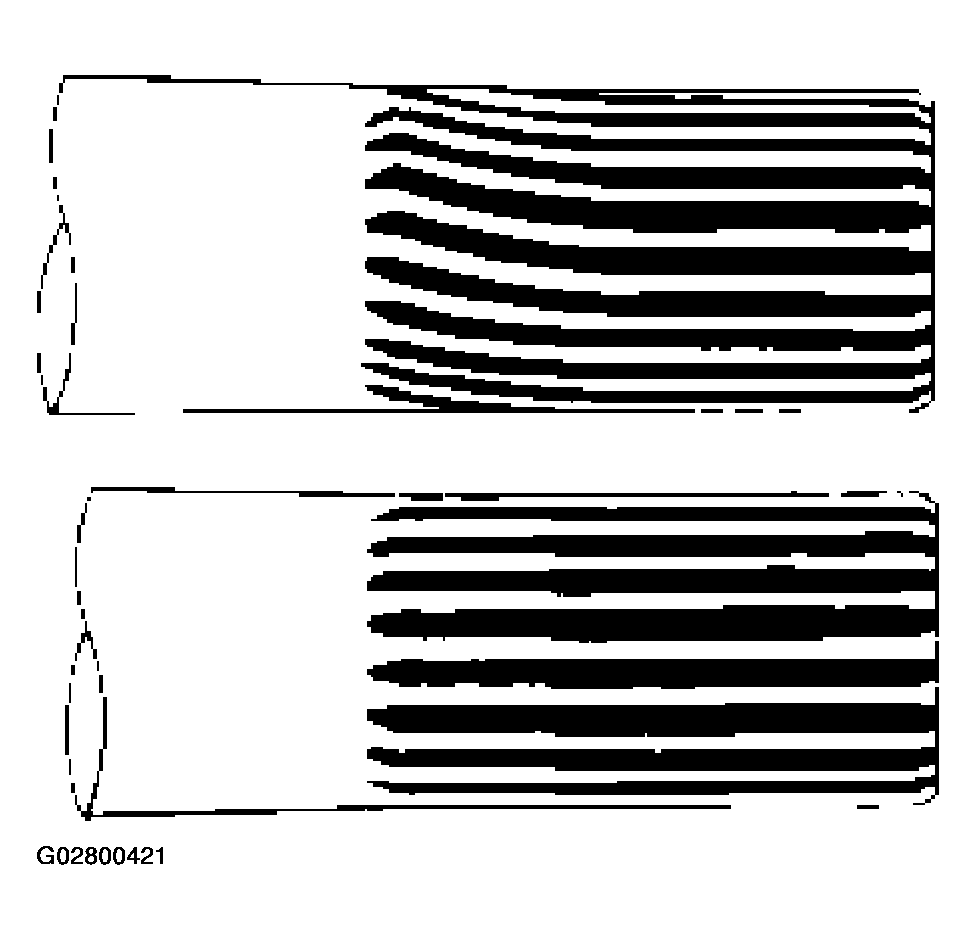

    Fig 2: Inspecting Inner Shaft Splines
    G02800421Courtesy of ISUZU MOTOR CO.
