Universal Joint Disassembly: Notes

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

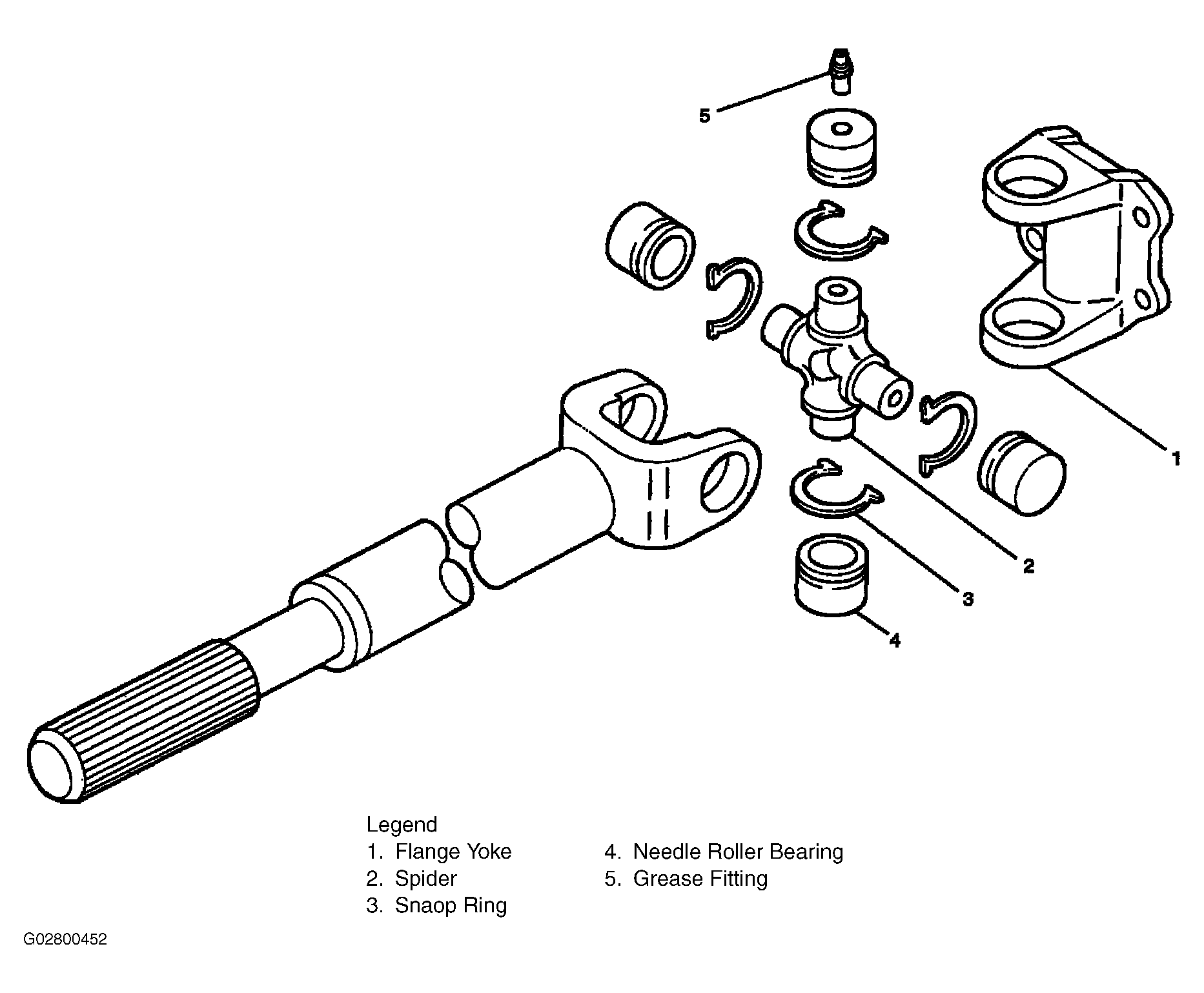

Fig 1: Exploded View Of Universal Joint

Courtesy of ISUZU MOTOR CO.

Apply alignment marks (1) on the yokes of the universal joint, then remove snap ring.

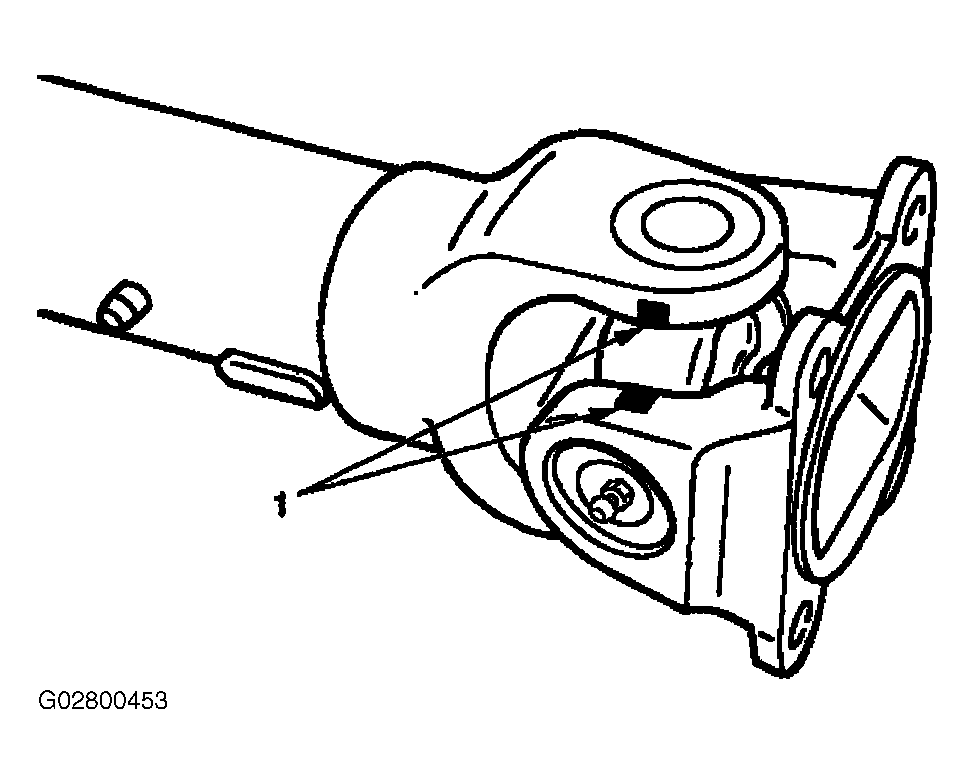

Fig 2: Identifying Alignment Marks On Universal Joint Yokes
Courtesy of ISUZU MOTOR CO.
Tap out the needle roller bearing by gently striking the shoulder of the yoke, using a mallet or a copper hammer.

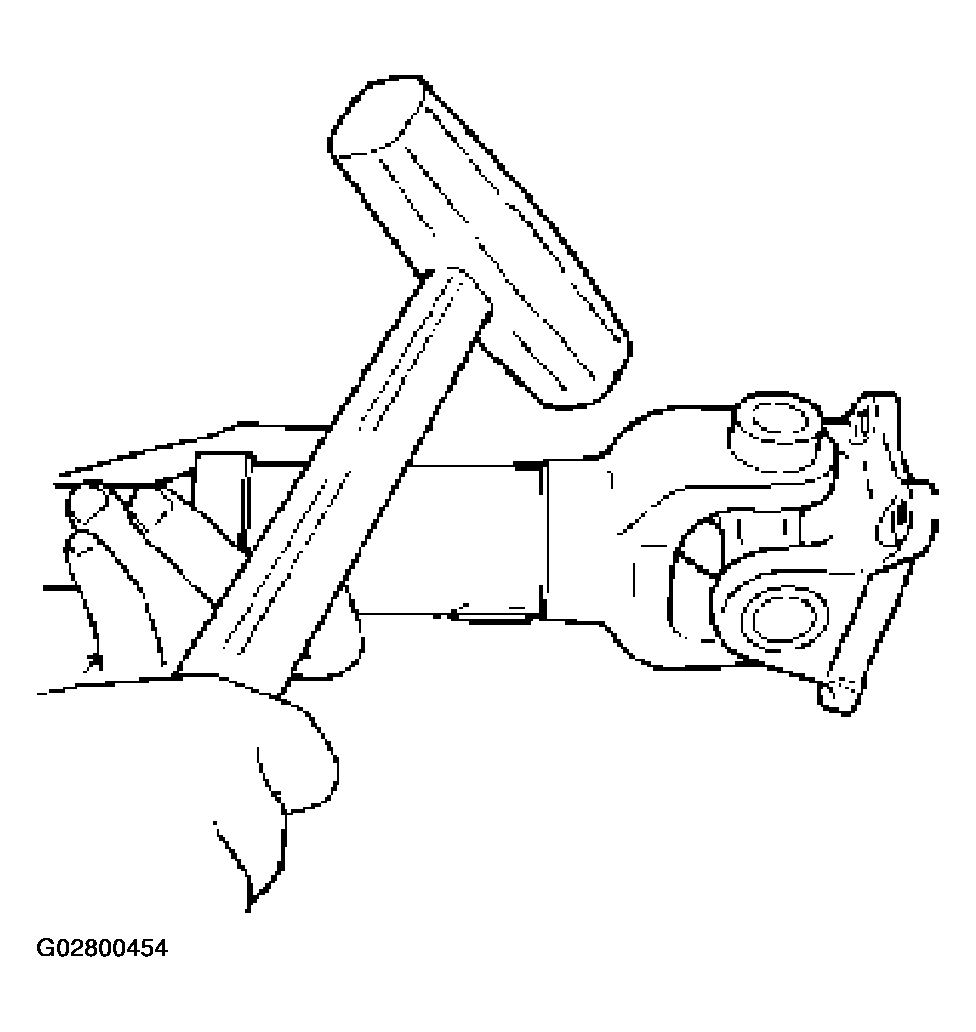

Fig 3: Tapping Out Needle Roller Bearing
Courtesy of ISUZU MOTOR CO.
Make sure of proper position for reinstallation by applying setting marks, then remove spider.
