Torque Specifications

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

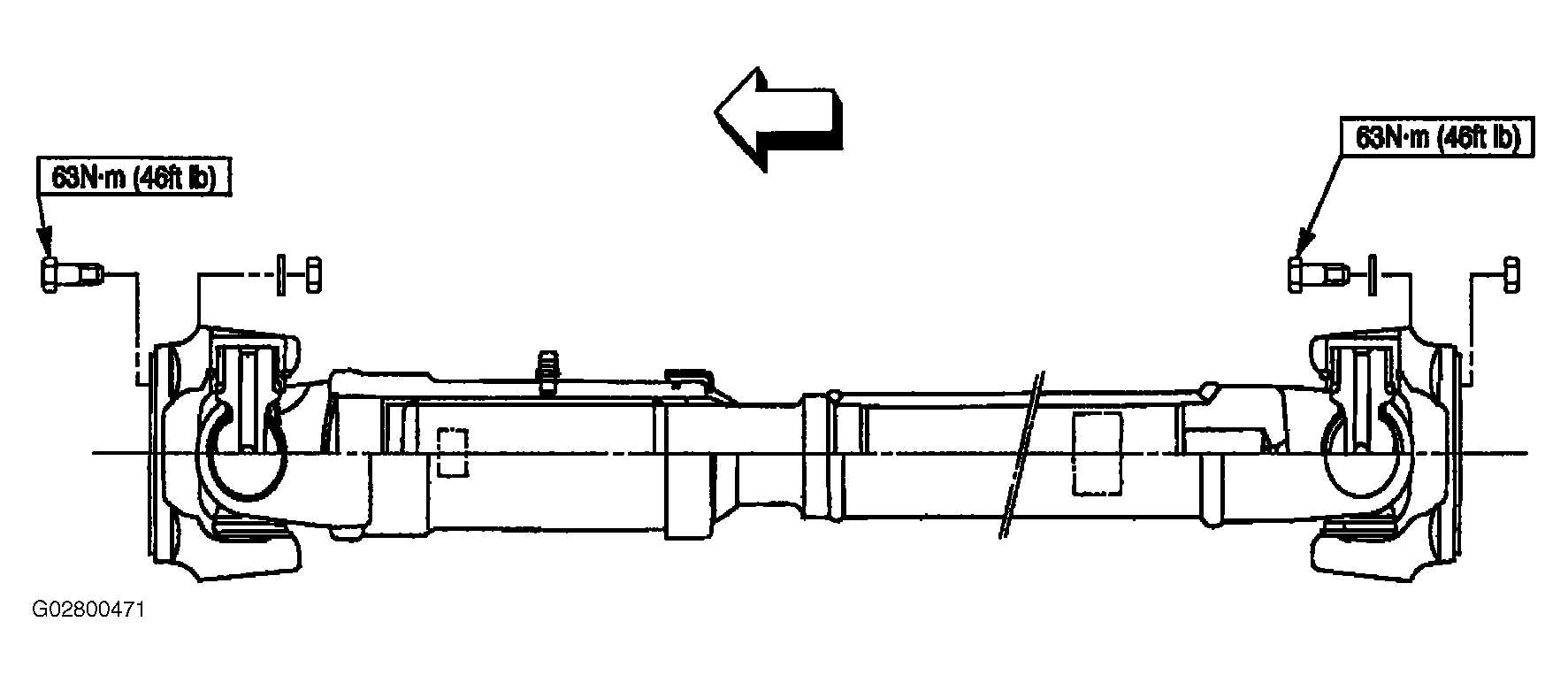

Fig 1: Front Propeller Shaft Torque Specifications
G02800471Courtesy of ISUZU MOTOR CO.
