Chart C-1-4 RR Sensor Output Inspection Procedure

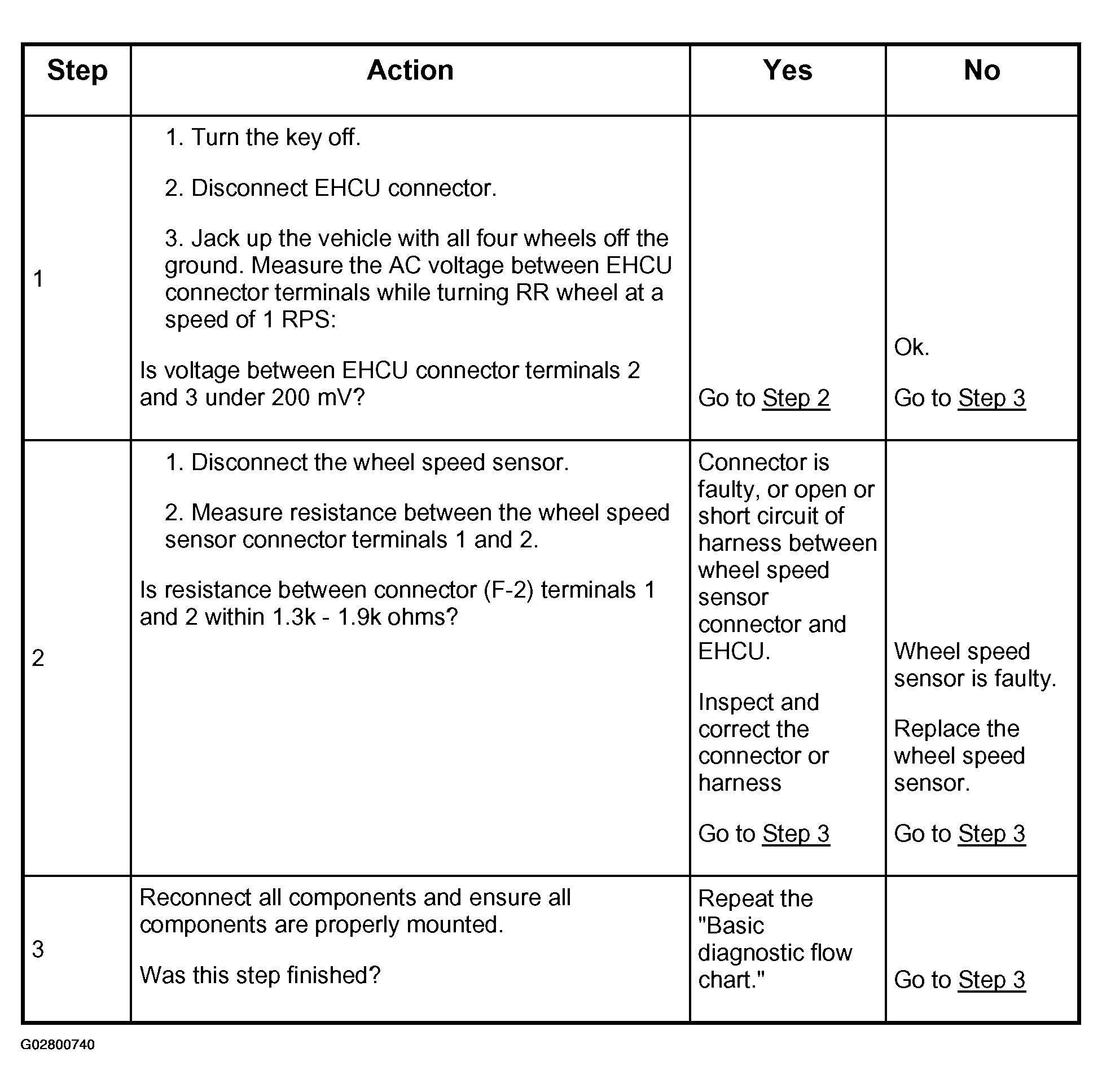

Fig 1: RR Sensor Output Inspection Procedure

G02800740

Courtesy of ISUZU MOTOR CO.
