Chart C-1-1 FL Sensor Output Inspection Procedure

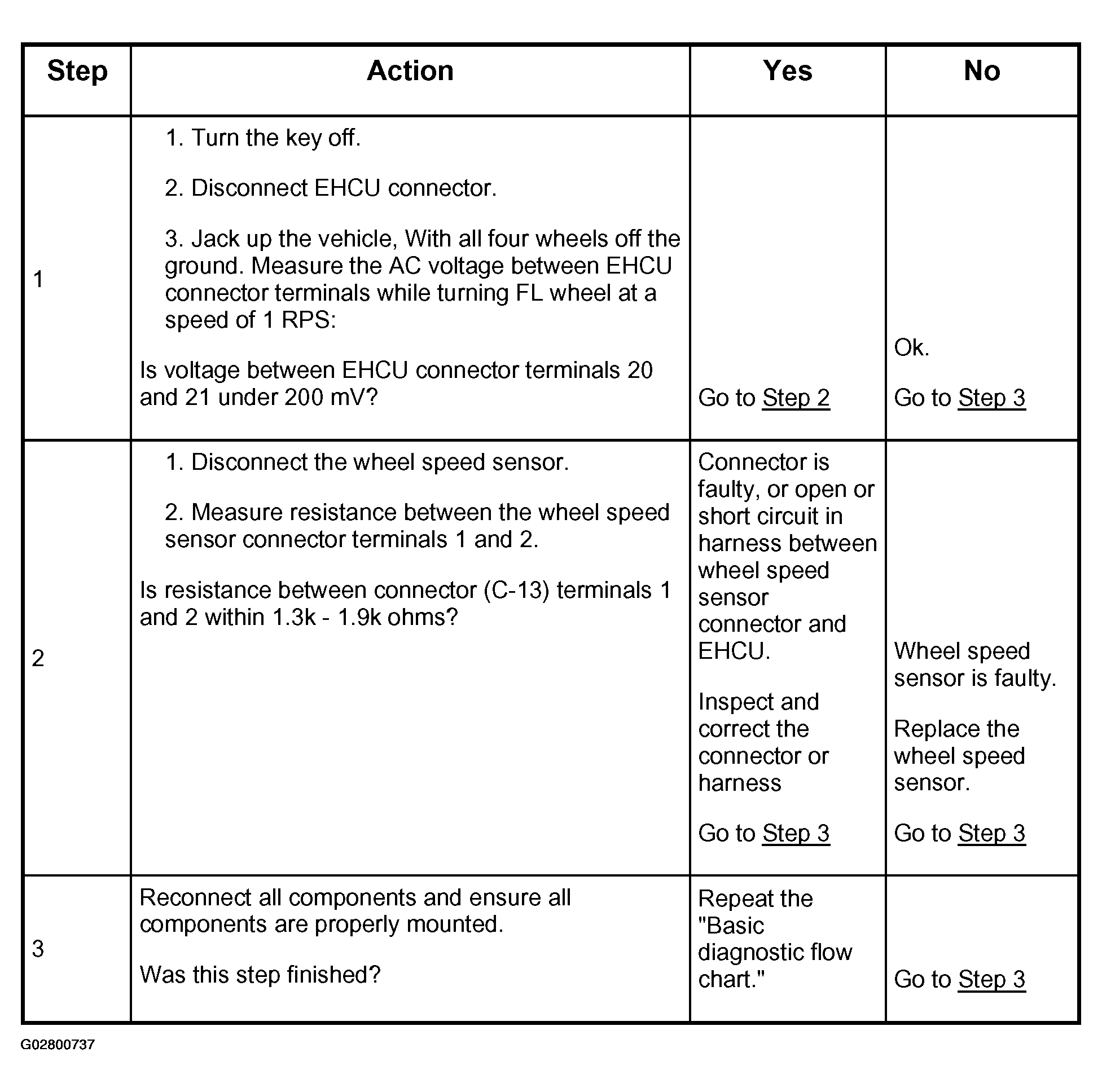

Fig 1: FL Sensor Output Inspection Procedure

G02800737

Courtesy of ISUZU MOTOR CO.
