Starters - 2.2L: Overhaul

NOTE: Use exploded view of starter for disassembly and reassembly. See Fig 1 .

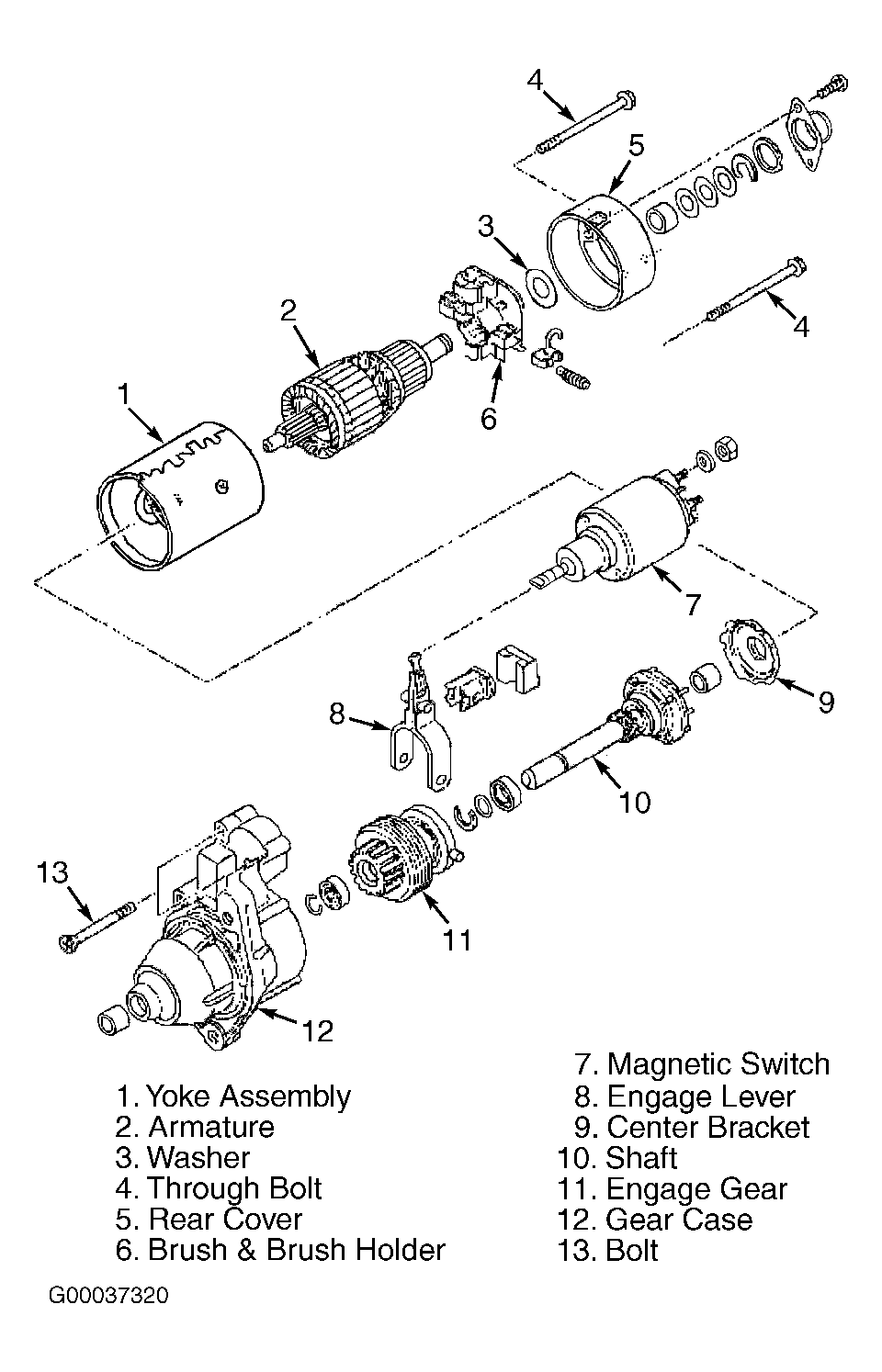

Fig 1: Exploded View Of Starter

G00037320

Courtesy of ISUZU MOTOR CO.
