Home >> Isuzu >> 2001 >> Rodeo S, 2.2 D, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock >> Pin Voltage Tests

Pin Voltage Tests

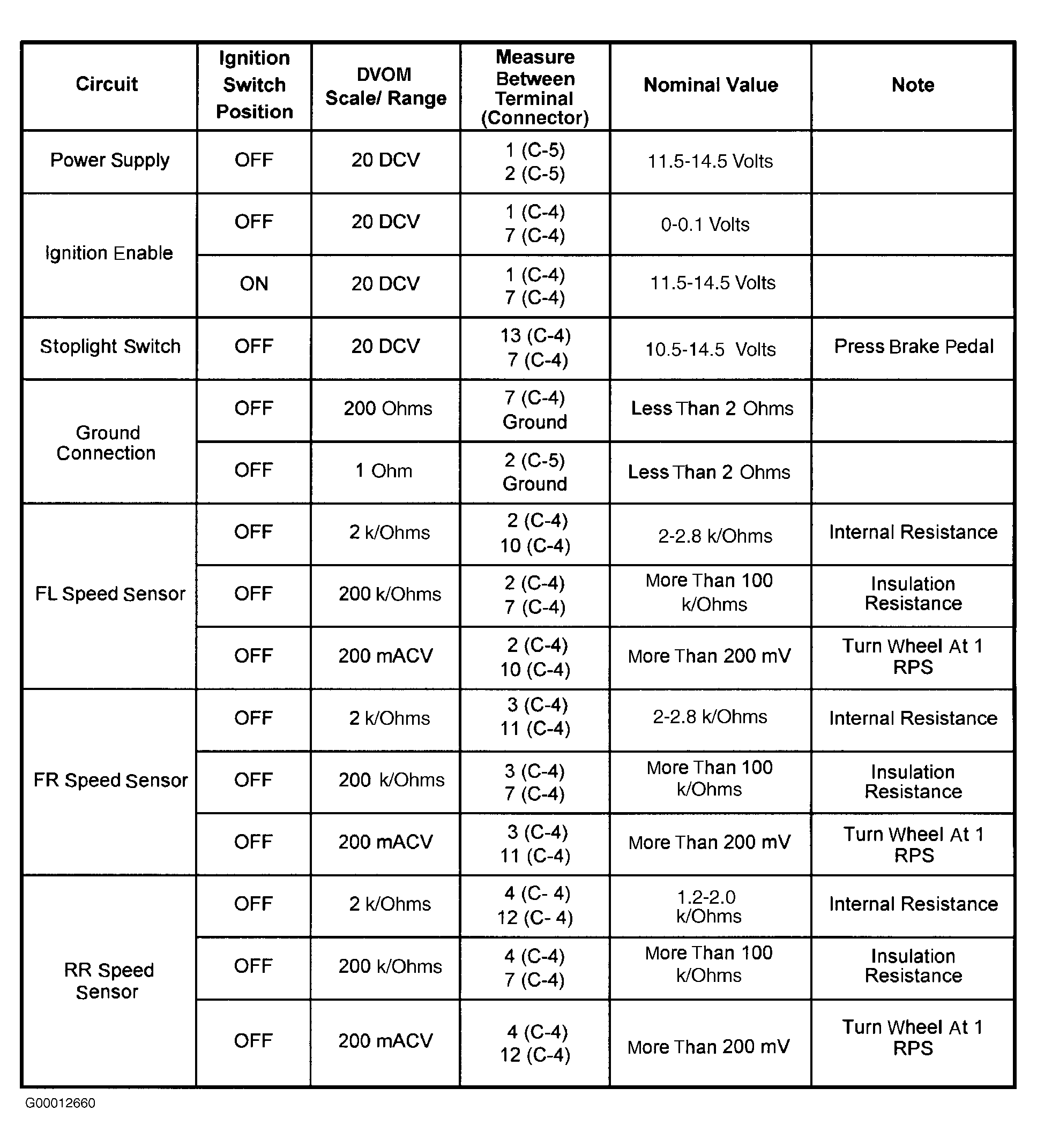

For pin voltage test values, see Figure.
