Clutch Control System: Removal

  1. Disconnect the ground battery cable.
  2. Remove the instrument panel lower cover and driver knee bolster panel assembly. See Fig 2.
    Fig 1: View Of Clutch Control System Components
    G00166399Courtesy of ISUZU MOTOR CO.

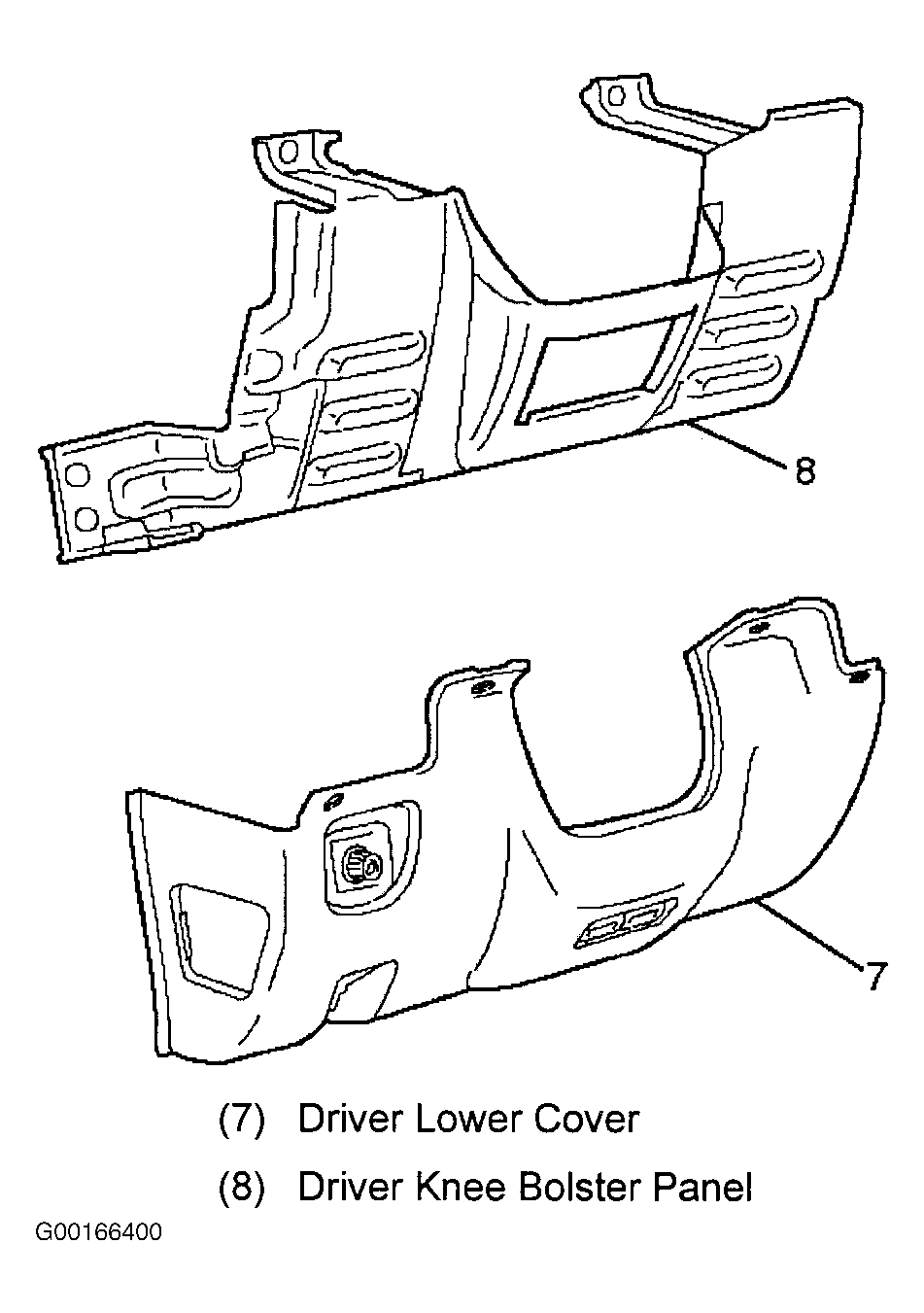

    Fig 2: Removing Instrument Panel Lower Cover
    G00166400Courtesy of ISUZU MOTOR CO.
  3. Remove pin and jaw joint pin.
  4. Remove pedal assembly and switch.
  5. Remove oil line pipe.
  6. Remove slave cylinder assembly. See Fig 3.
  7. Remove master cylinder assembly.
  8. Remove oil line hose.
Fig 3: Removing Slave Cylinder Assembly
G00166401Courtesy of ISUZU MOTOR CO.
