1999 (Rodeo)

For fuse identification, see Fig 1 .

1. No. 1 20A

   Accessory Socket
2. No. 2 10A

   Audio
3. No. 3 15A

   Cigar Lighter
4. No. 4 15A

   Tail/Illuminate Light
5. No. 5 10A

   Dome Light
6. No. 6 15A

   Stop Light
7. No. 7 20A

   Power Door Lock
8. No. 8 10A

   Mirror Defogger
9. No. 9 15A

   Rear Defogger
10. No. 10 15A

    Rear Defogger
11. No. 11 15A

    Meter
12. No. 12 15A

    Engine Ignition
13. No. 13 15A

    Ignition Coil
14. No. 14 15A

    Back Up/Turn Light
15. No. 15 15A

    Electric Ignition
16. No. 16 20A

    Front Wiper Washer
17. No. 17 10A

    Rear Wiper Washer
18. No. 18 10A

    Anti Theft
19. No. 19 15A

    Audio
20. No. 20 10A

    Starter
21. No. 21 30A

    Power Window
22. No. 22 10A

    SRS
23. No. 23

    Not Used

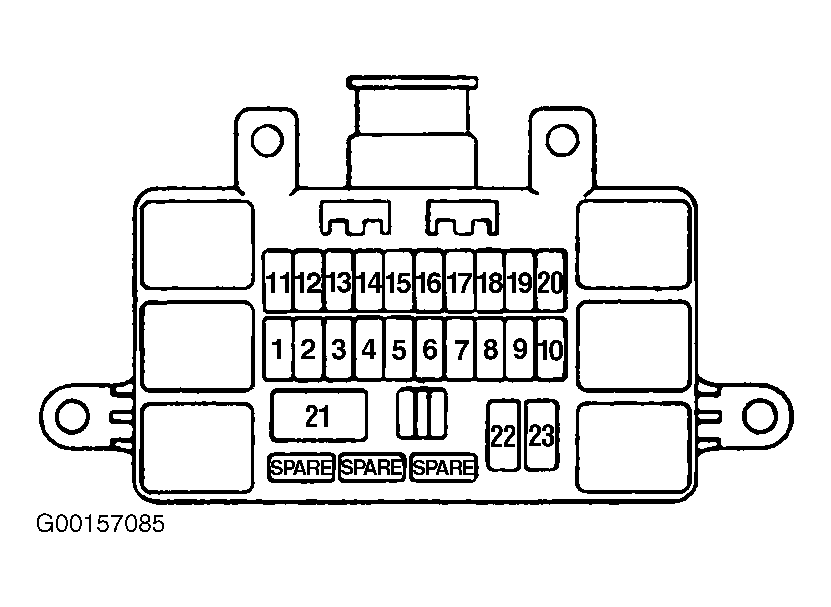

Fig 1: Identifying Instrument Panel Fuses (1999 Rodeo)

Courtesy of ISUZU MOTOR CO.
