Fuse Panel & Relay Box Identification (Engine Compartment): V6

For fuse and relay identification, see Fig 1 .

1. No. 3

   Option Box
2. No. 3

   Diode
3. No. 4

   Diode
4. No. 5

   Heater Relay
5. No. 7

   Not Used
6. No. 8

   ECM Main Relay
7. No. 9

   Fog Lamp Relay
8. No. 10

   Not Used
9. No. 11

   Not Used
10. No. 12

    Thermostat Relay
11. No. 13

    Headlight Relay
12. No. 14

    Starter Relay
13. No. 15

    Not Used
14. No. 16

    Fuel Pump Relay
15. No. 17

    Condenser Fan Relay (A/T Only)
16. No. 18 60A

    Ignition 1
17. No. 19 100A

    Main
18. No. 20 30A

    ECM
19. No. 21 50A

    ABS
20. No. 22 50A

    Ignition 2
21. No. 23 30A

    Condenser Fan (A/T Only)
22. No. 24 15A

    Hazard
23. No. 25 10A

    Horn
24. No. 26 10A

    ACG (S)
25. No. 27

    Not Used
26. No. 28 15A

    Blower
27. No. 29 15A

    Blower
28. No. 30 10A

    Air Conditioning
29. No. 31 10A

    Driver Side Headlight
30. No. 32 10A

    Passenger Side Headlight
31. No. 33 10A

    Fog Lamp
32. No. 34 20A

    Oxygen Sensor
33. No. 35 20A

    Fuel Pump
34. No. 36 15A

    ECM
35. No. 37 10A

    Not Used
36. No. 38 30A

    Intelligent Suspension

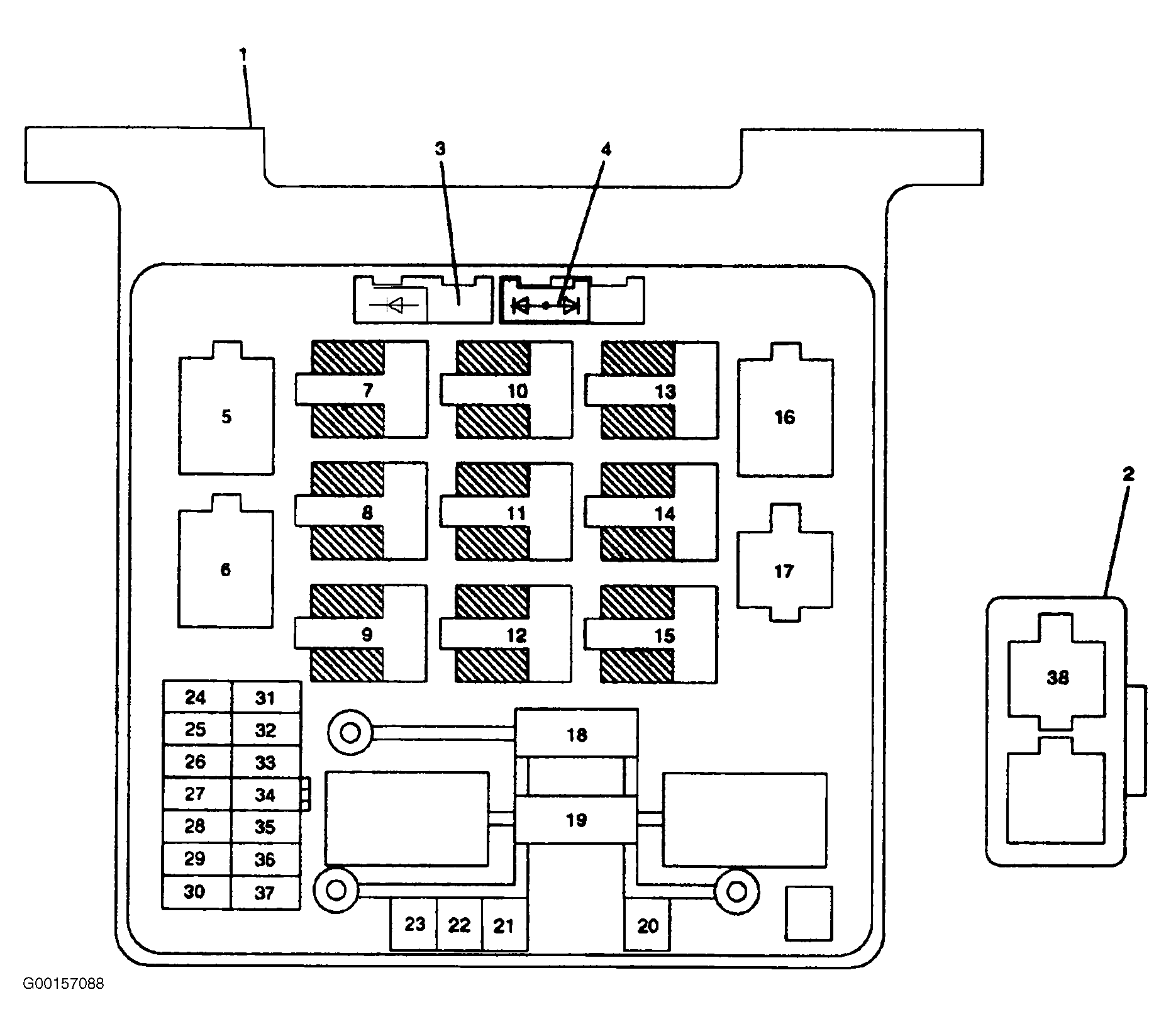

Fig 1: Identifying Engine Compartment Fuses (V6, 2000-01)

Courtesy of ISUZU MOTOR CO.
