Gear Shift Control

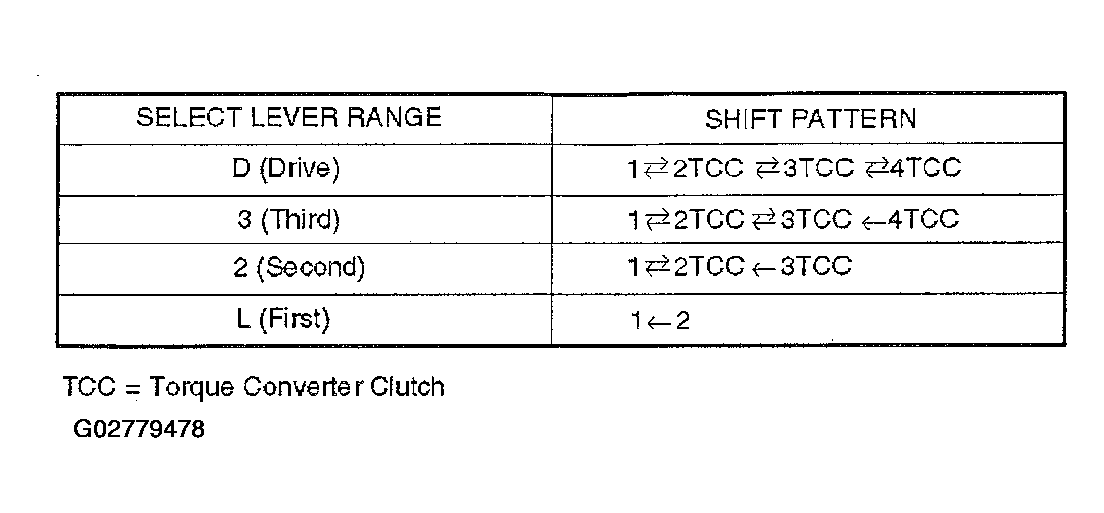

Shift pattern

Fig 1: Gear Shift Control (Shift Pattern)
Courtesy of ISUZU MOTOR CO.

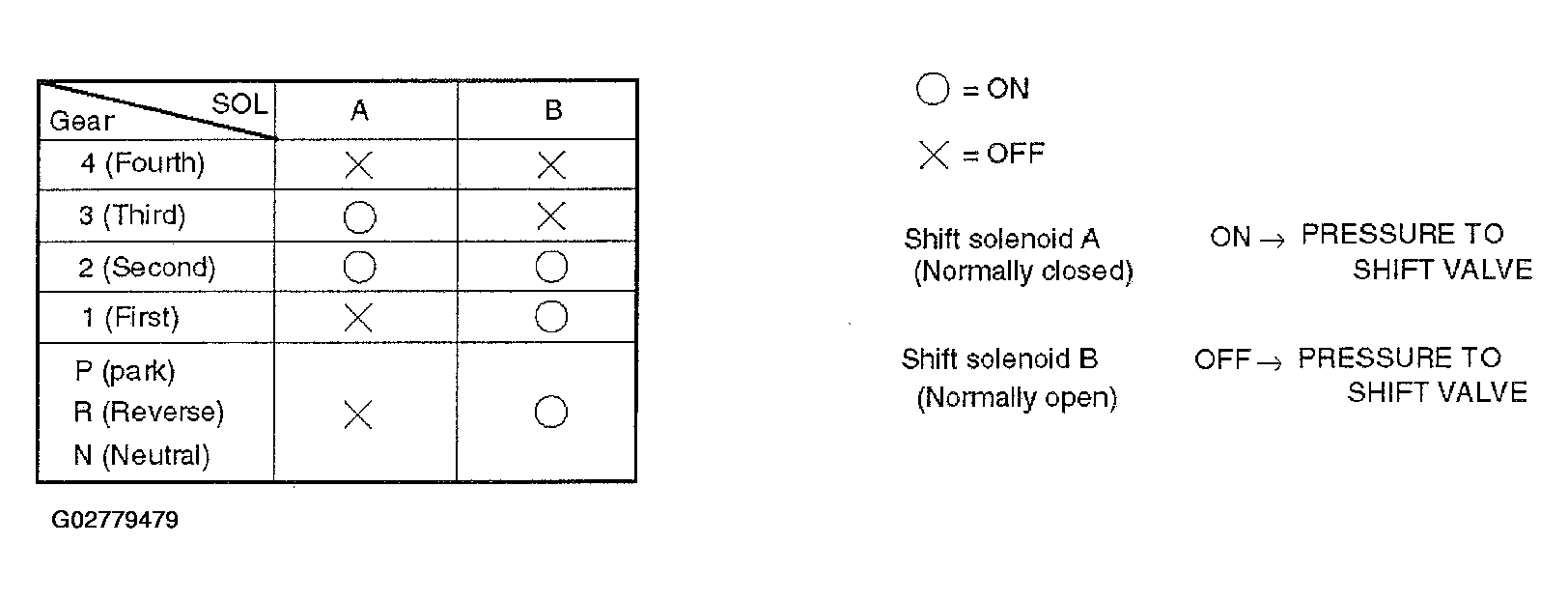

Gear position
The gear a selection ON/OFF OF TOW SOLENOIDS.

Fig 2: Gear Shift Control (Gear Position)
Courtesy of ISUZU MOTOR CO.

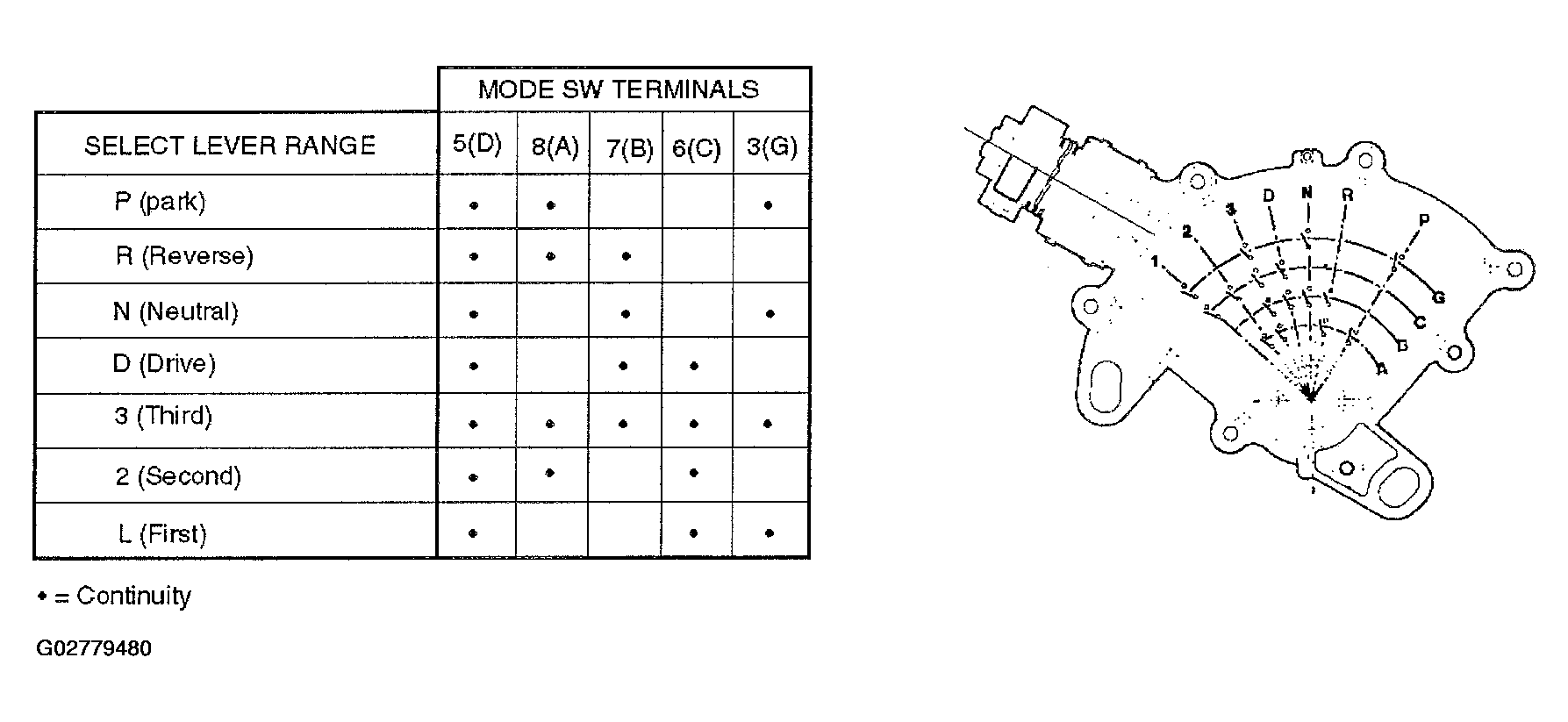

Selecting gear position
Seven types of positions can be selected according to 5 signals from the mode switch as below.

Fig 3: Gear Shift Control (Selecting Gear Position)
Courtesy of ISUZU MOTOR CO.
