Relay Layout Identification

For relay layout, see Fig 1 .

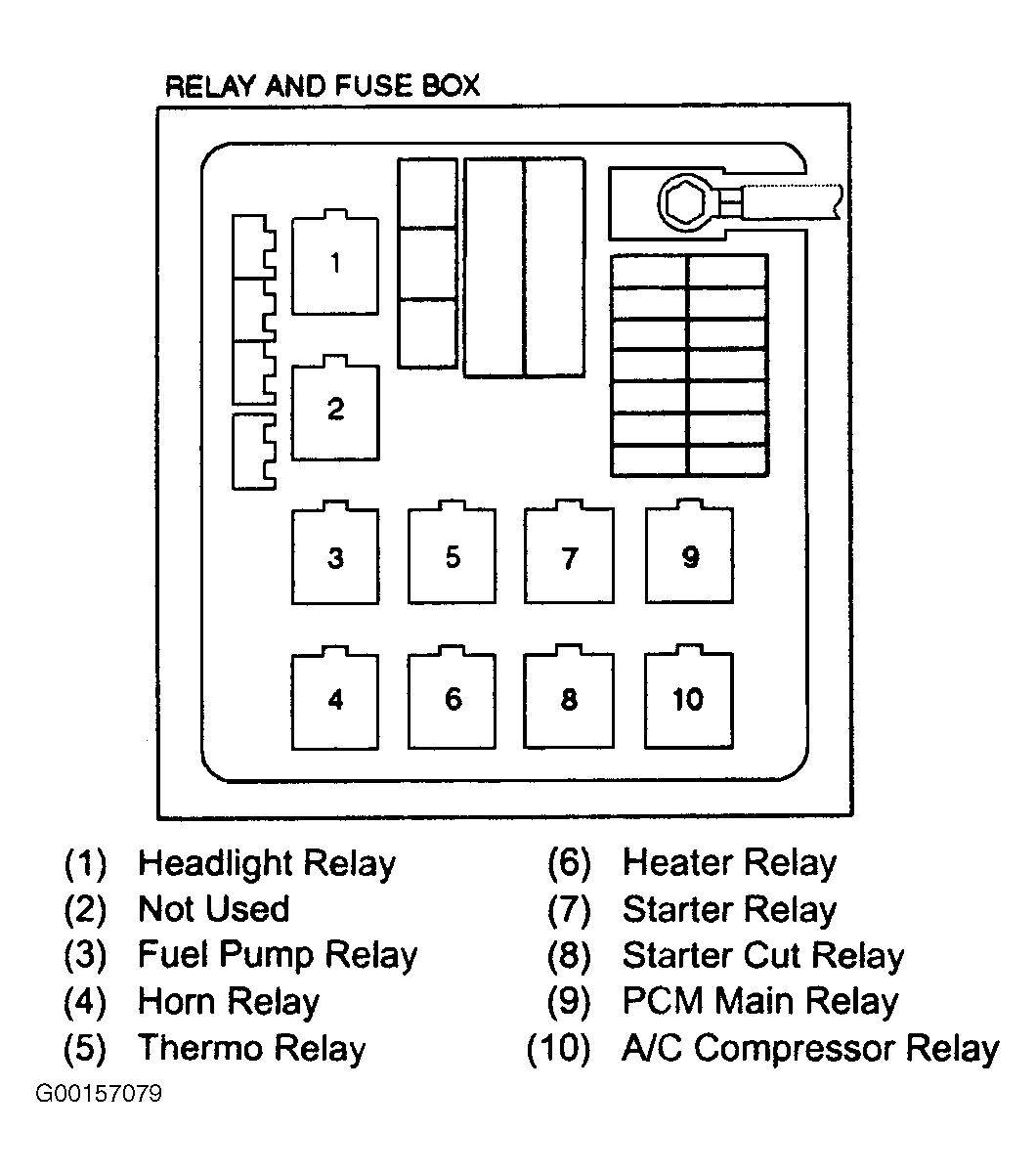

Fig 1: Identifying Relay Layout

G00157079

Courtesy of ISUZU MOTOR CO.
