Tailgate Outer Weatherstrip: Removal

  1. Disconnect the battery ground cable.
  2. Remove tailgate outer weatherstrip (1).
    • Pry the tailgate outer weatherstrip clips (2) free from the body panel.

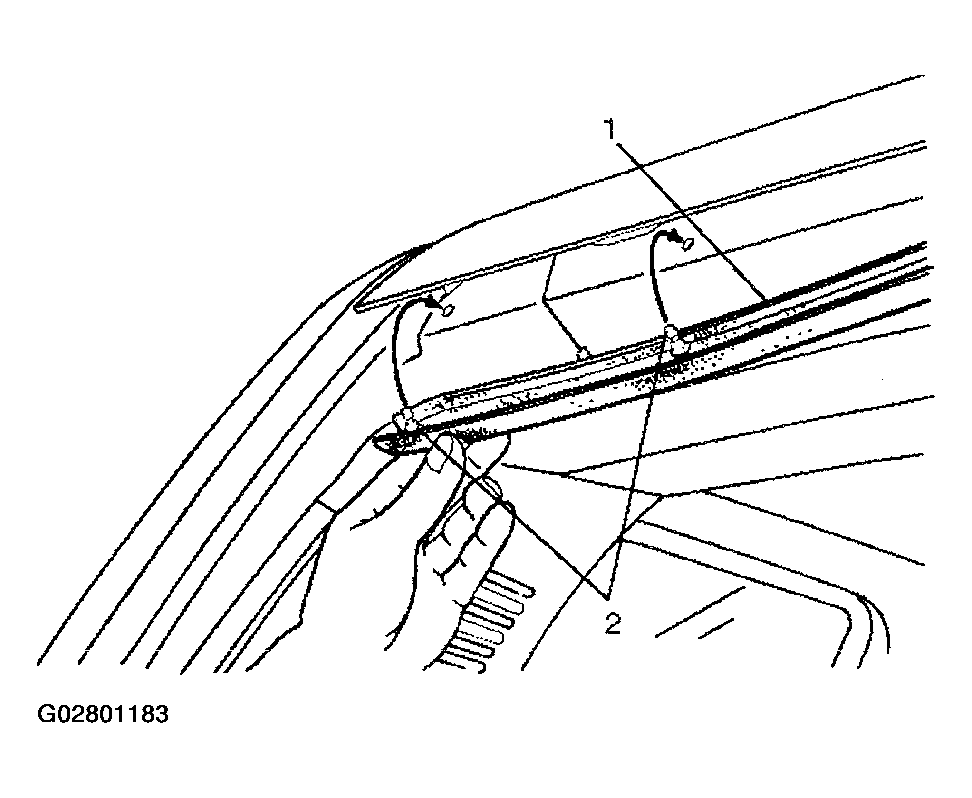

    Fig 1: Removing Tailgate Outer Weatherstrip
    G02801183Courtesy of ISUZU MOTOR CO.
