Rear Window Regulator And Glass: Removal

  1. Disconnect the battery ground cable.
  2. Remove door trim panel.
    • Refer to DOOR TRIM PANEL (REAR) .
  3. Remove waterproof sheet (1).
    • Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.

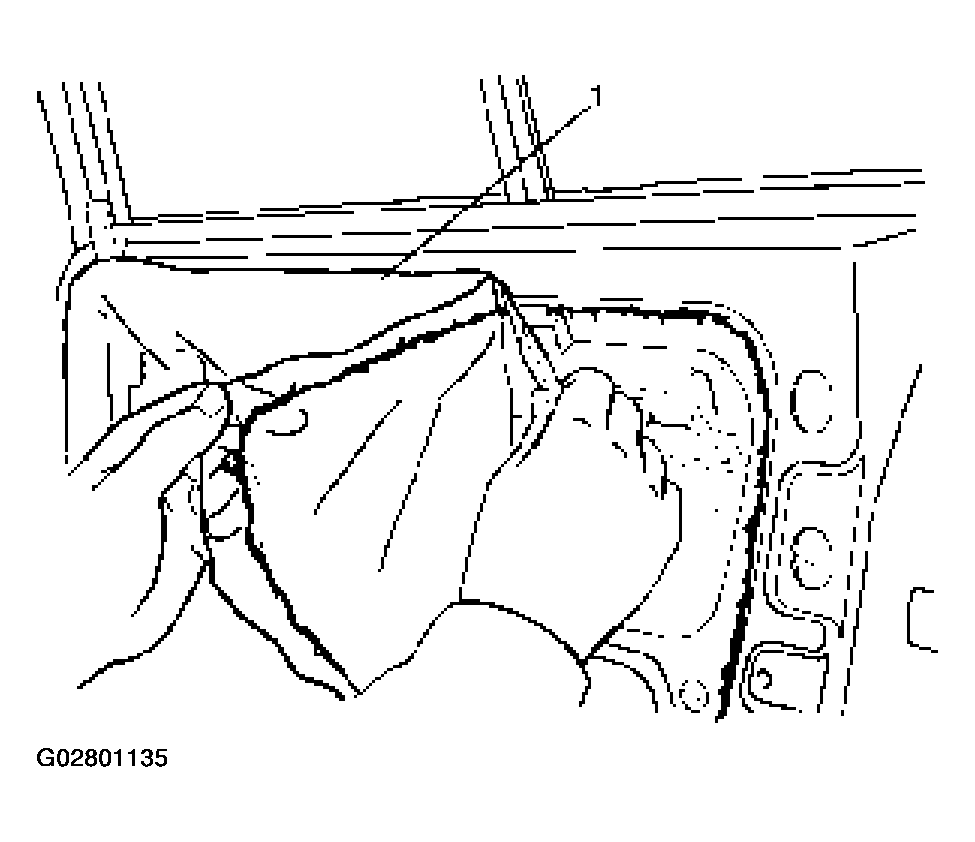

    Fig 1: Removing Waterproof Sheet
    G02801135Courtesy of ISUZU MOTOR CO.
  4. Remove glass.
    • Bring the glass down to the position where the bolt can be seen.
    • Remove the sash division 2 fixing bolts (1) and then remove the glass fixing bolt to remove the glass upwards.

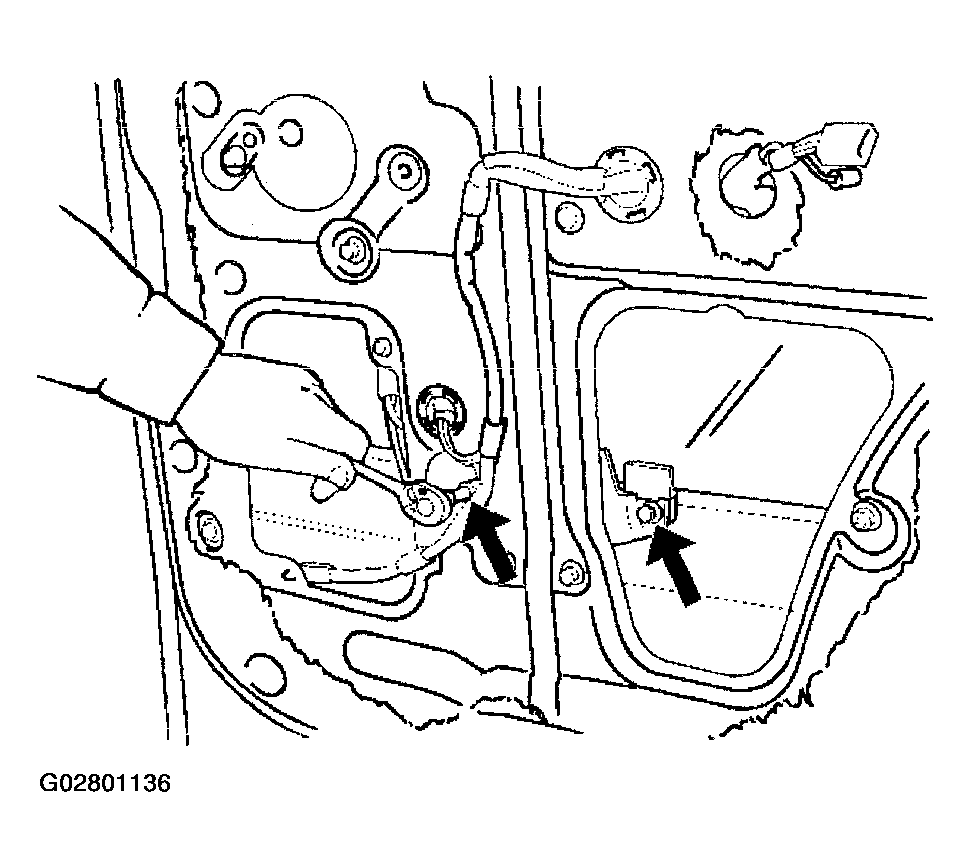

    Fig 2: Removing The Glass Fixing Bolts
    G02801136Courtesy of ISUZU MOTOR CO.

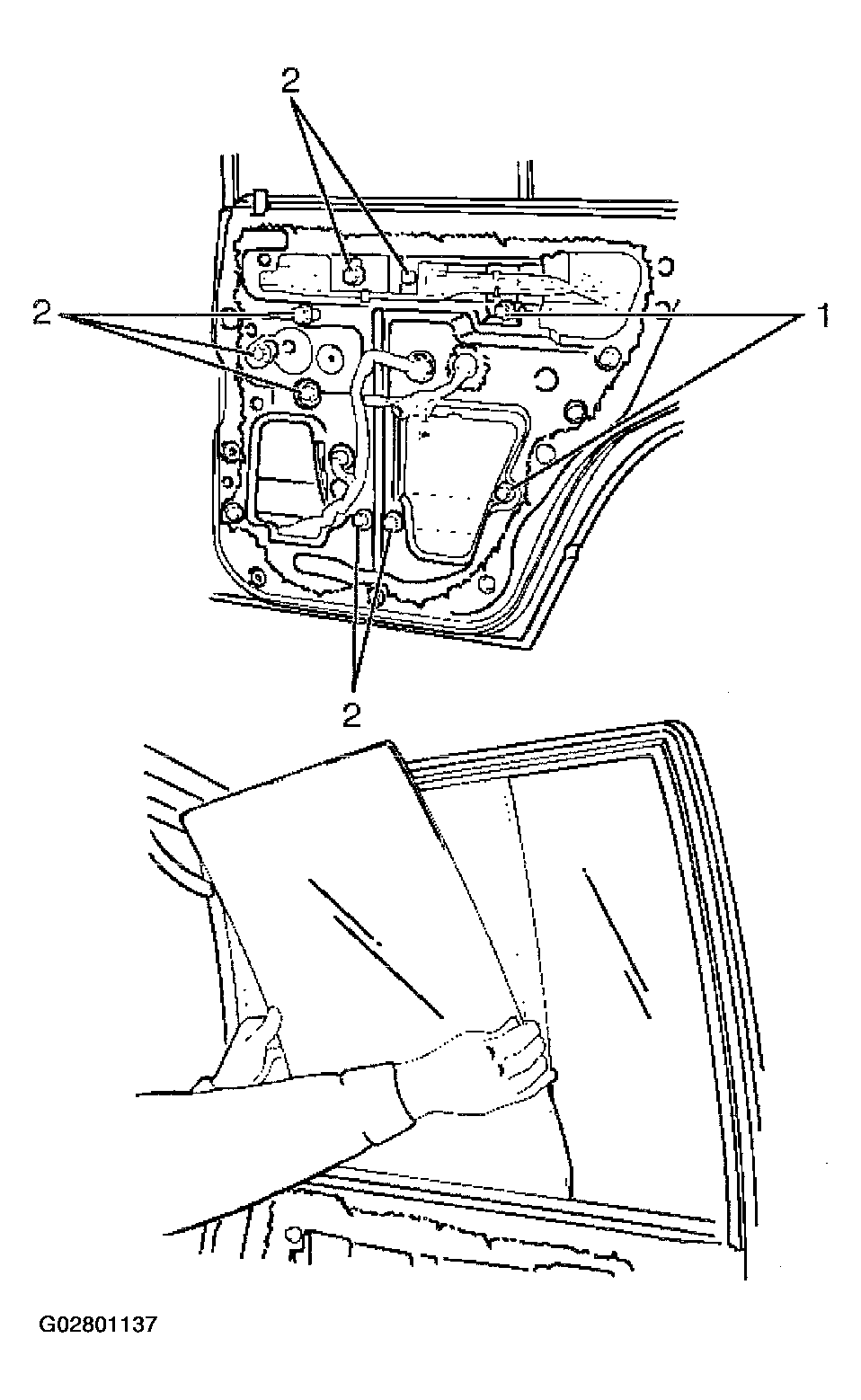

    Fig 3: Removing Glass
    G02801137Courtesy of ISUZU MOTOR CO.
  5. Remove window regulator.
    • Disconnect the regulator motor connector (4) and remove the window regulator cable fixing clip (3) from the door panel, if model is equipped with power windows.
    • Remove the window regulator 7 fixing bolts (2) and pull the regulator out from the lower hole of the door panel.

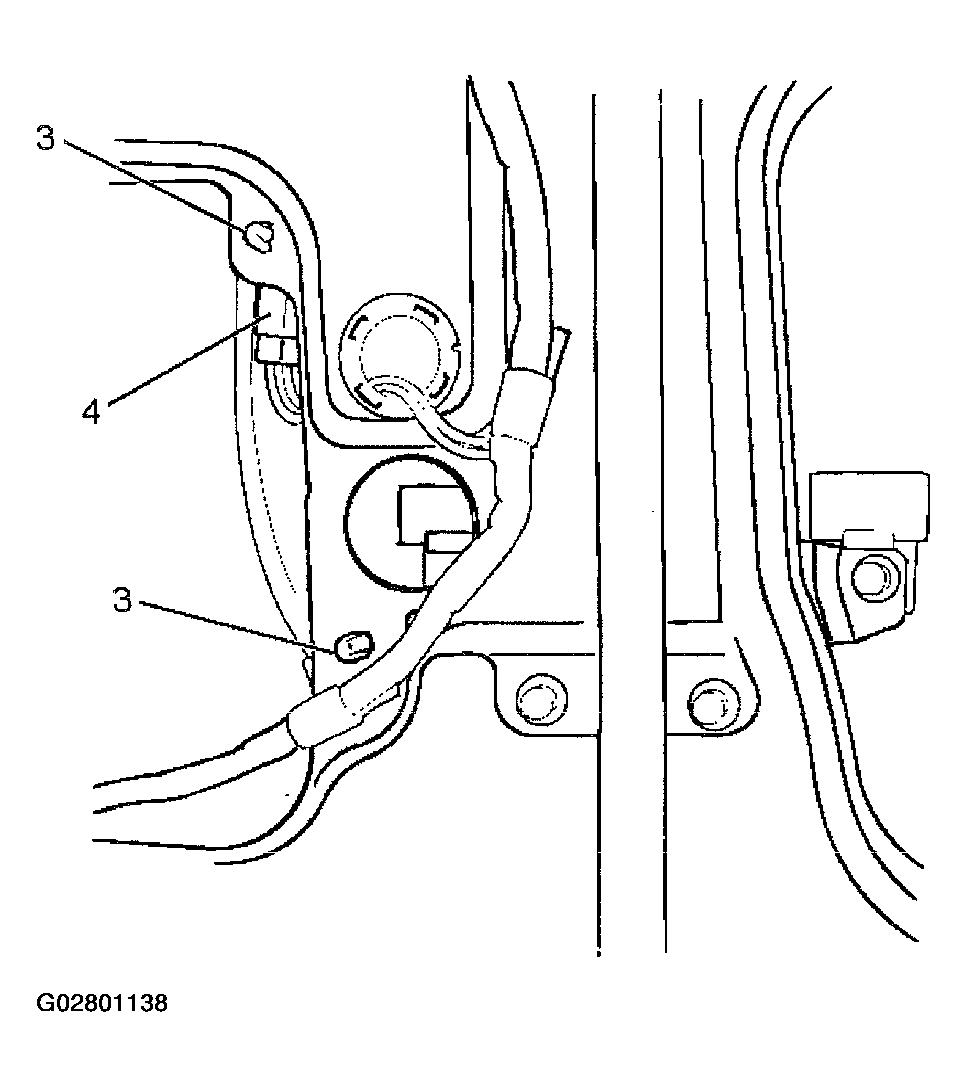

    Fig 4: Disconnecting The Regulator Motor Connector
    G02801138Courtesy of ISUZU MOTOR CO.
