Front Window Regulator, Glass And Glass Run: Removal

Disconnect the battery ground cable.
Remove door trim panel.
- Refer to FRONT DOOR TRIM PANEL .
Remove speaker box.
Remove waterproof sheet.

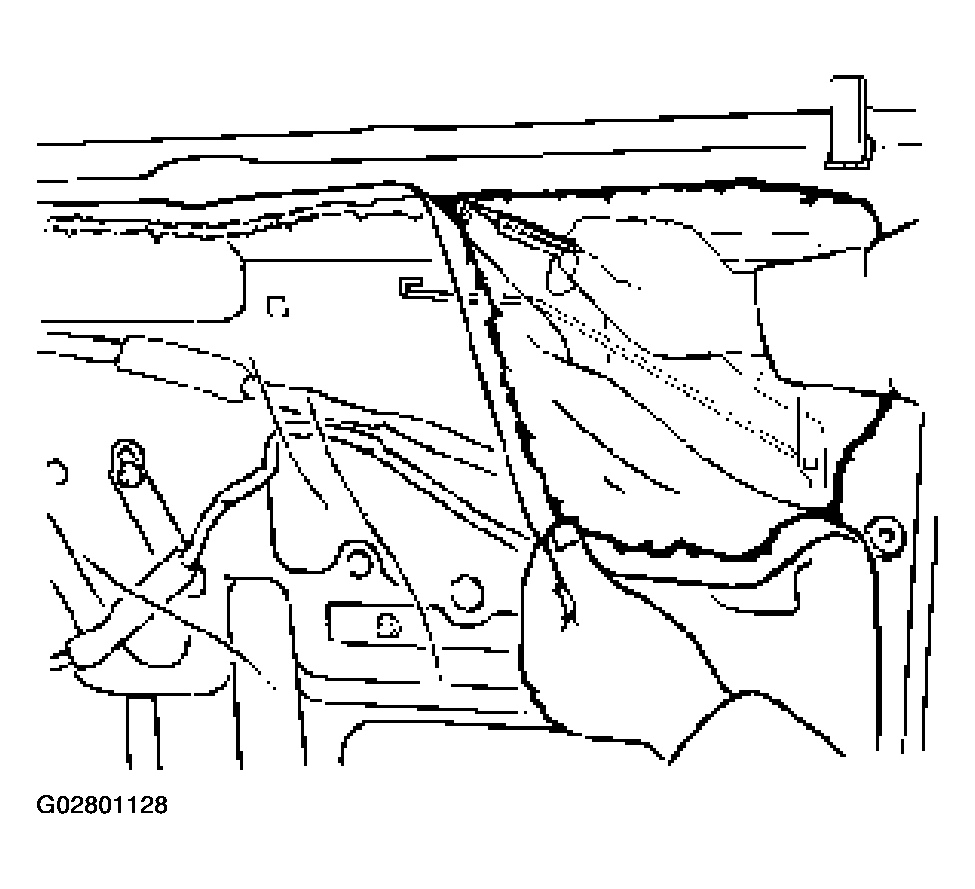

Fig 1: Removing Waterproof Sheet
Courtesy of ISUZU MOTOR CO.
- Take notice of the door harness and the grommet, peel the waterproof sheet off the door panel carefully.
Remove glass.
- Bring the glass (1) down to the position where the fixing bolts can be seen.
- Remove the glass fixing bolts from the window regulator (2) and lower the front side of the glass.

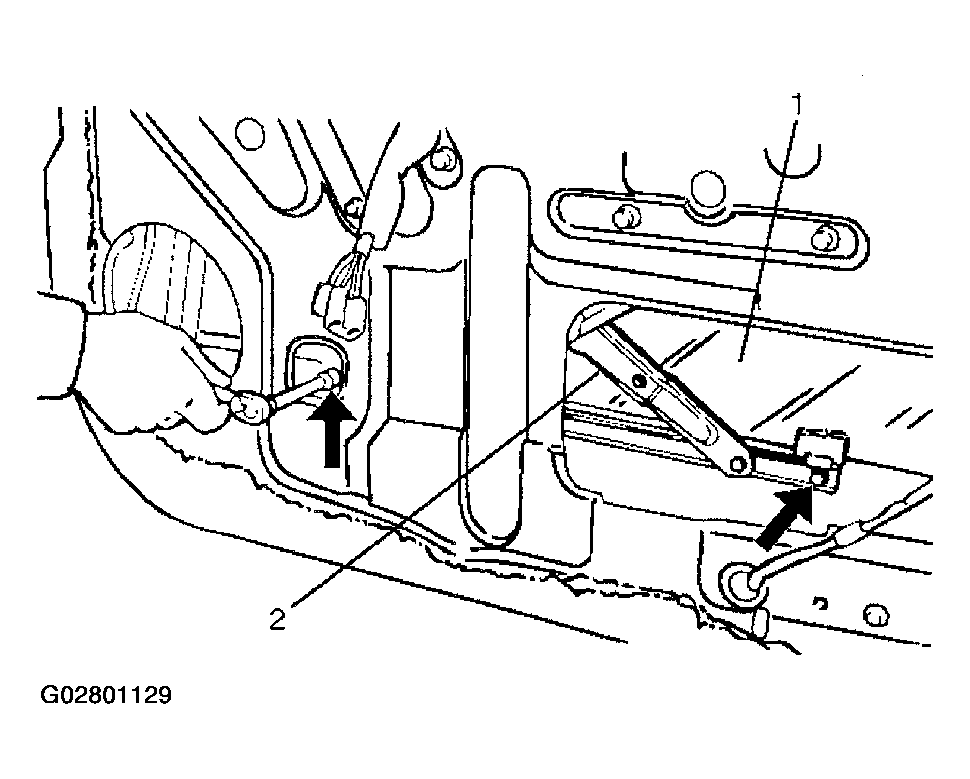

  Fig 2: Removing Glass Fixing Bolts
  Courtesy of ISUZU MOTOR CO.
When the front side of the glass comes off the glass run (3), turn the glass inside out and pull it up from its rear side.

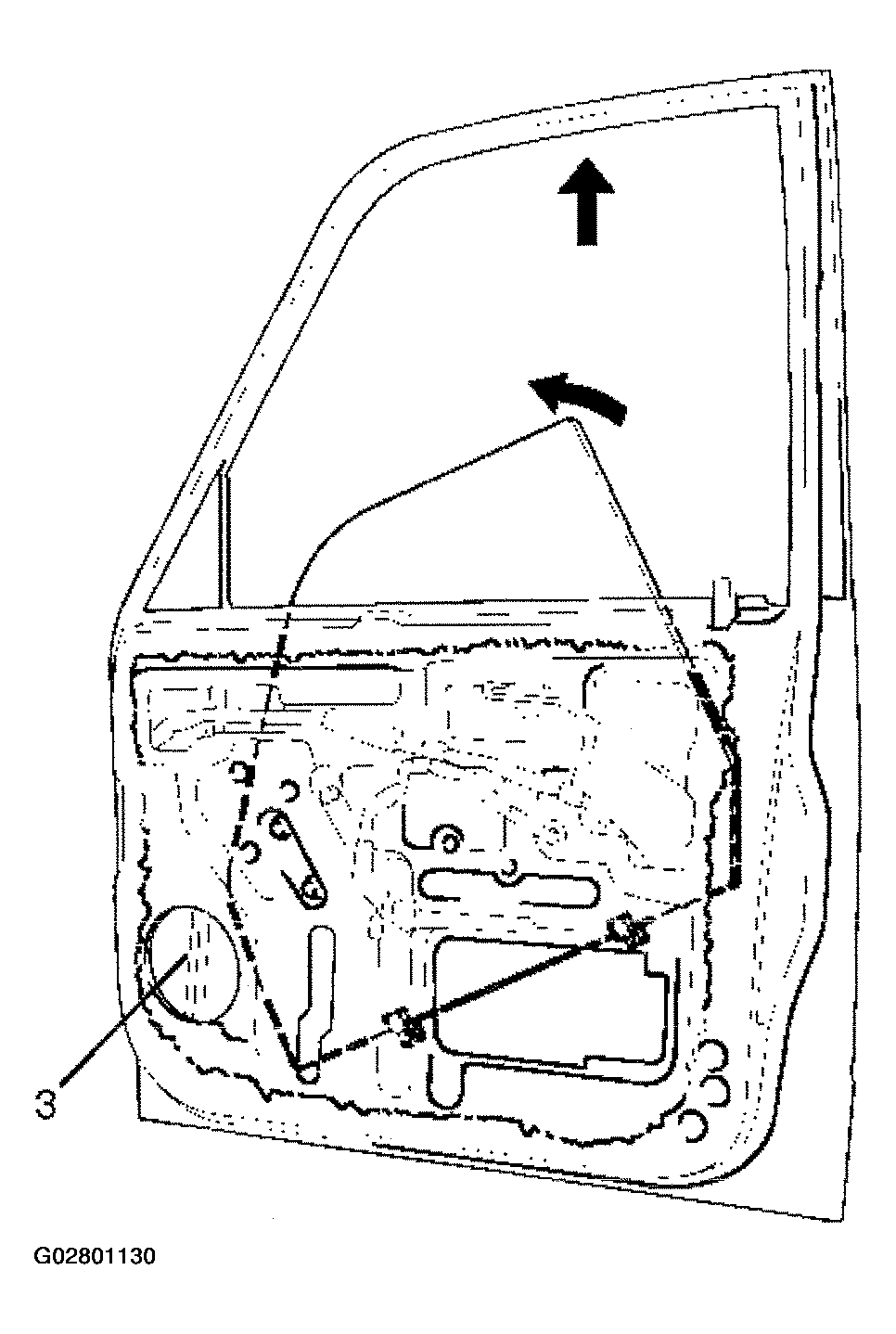

Fig 3: Removing Glass
Courtesy of ISUZU MOTOR CO.
Remove window regulator.
- Remove the window regulator fixing bolts (4) and the rear guide rail fixing bolt (5).
- Disconnect the window regulator motor harness connector, if equipped with power windows.

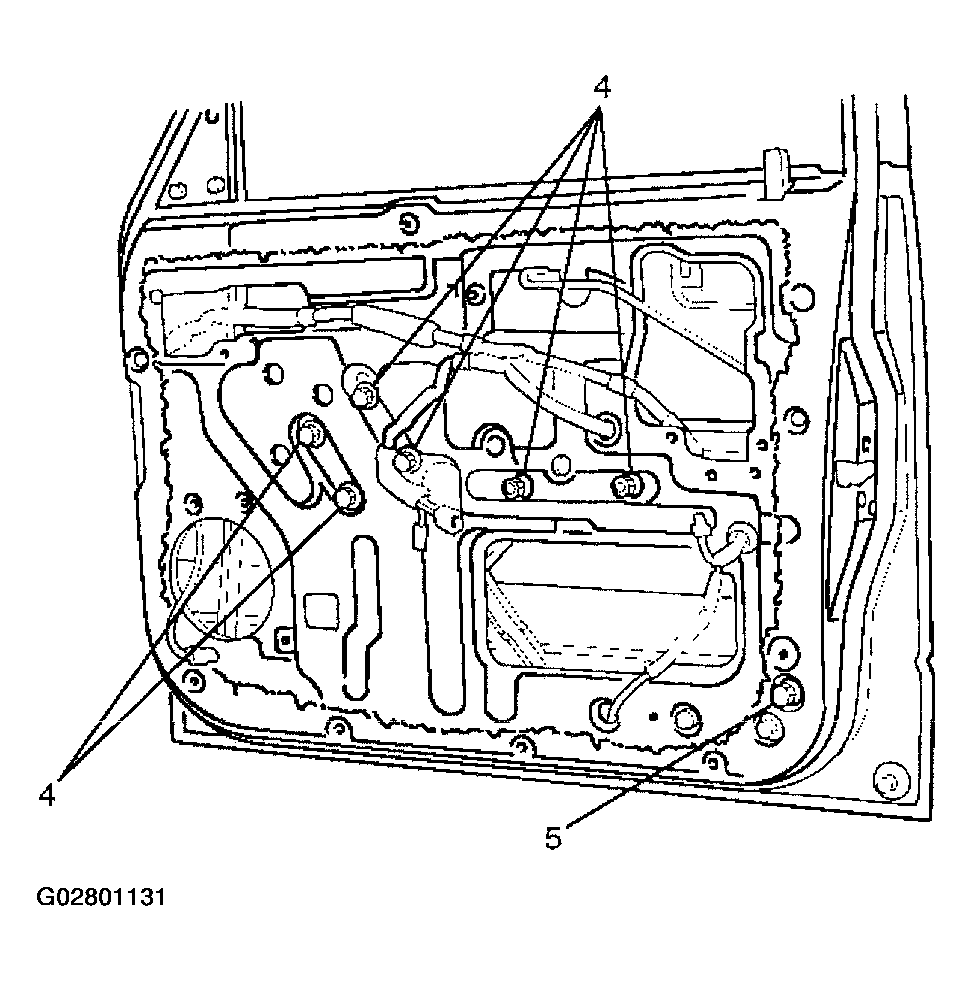

Fig 4: Removing Window Regulator
Courtesy of ISUZU MOTOR CO.
Remove glass run.
- Pull the glass run (6) out from the door frame groove.

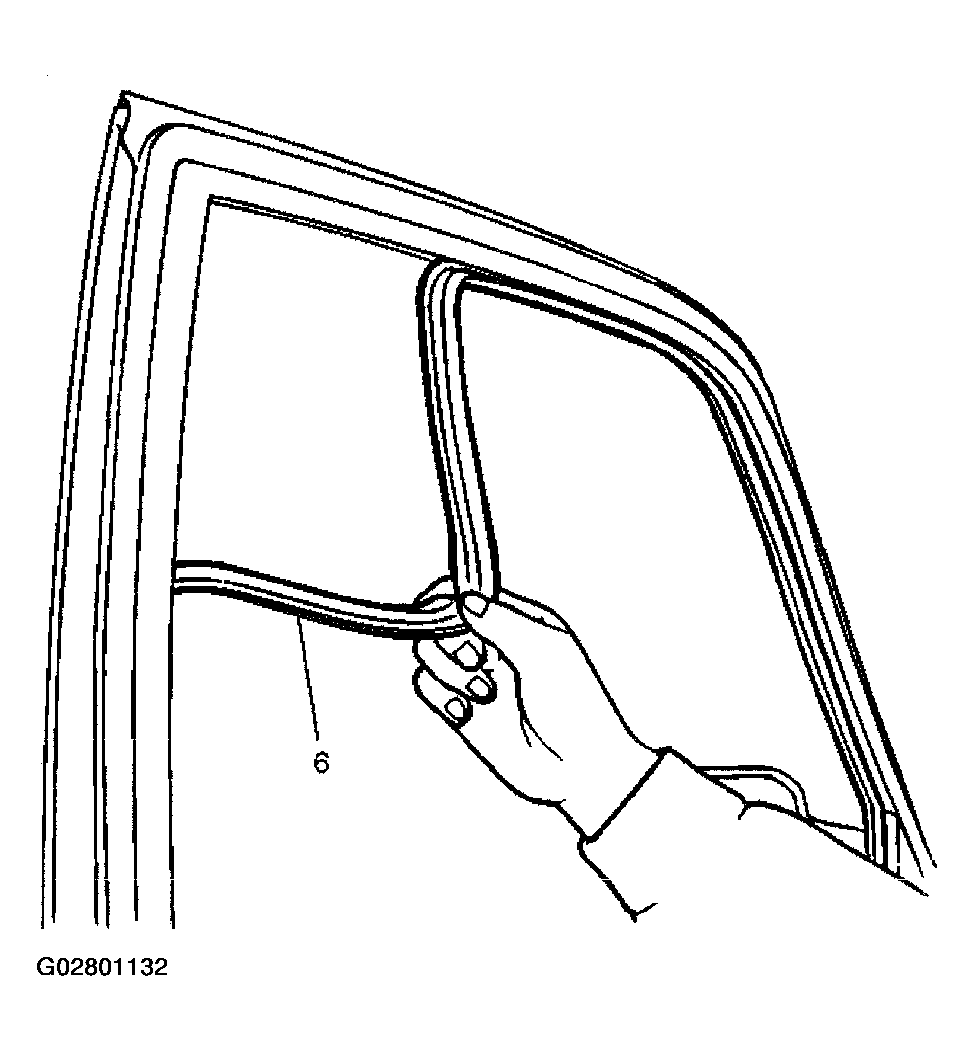

Fig 5: Removing Glass Run
Courtesy of ISUZU MOTOR CO.
Remove rear guide rail.
