Home >> Isuzu >> 2000 >> Trooper S, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Structure >> Cross Beam Assembly >> Parts Location

Parts Location

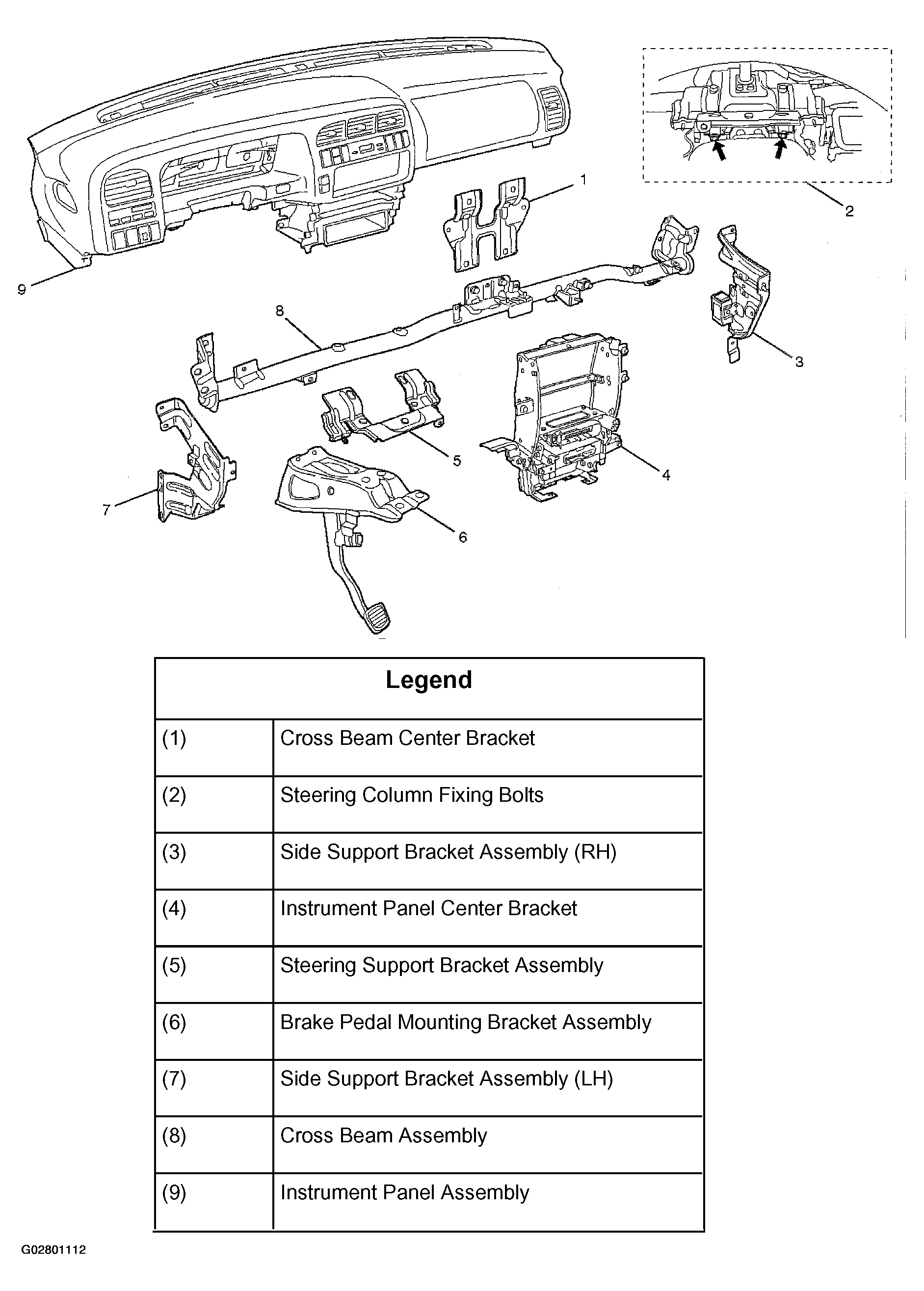

Fig 1: Locating Cross Beam And Related Components

G02801112

Courtesy of ISUZU MOTOR CO.
