Relay & Fuse Box Identification

See Figure for fuse and relay box location.

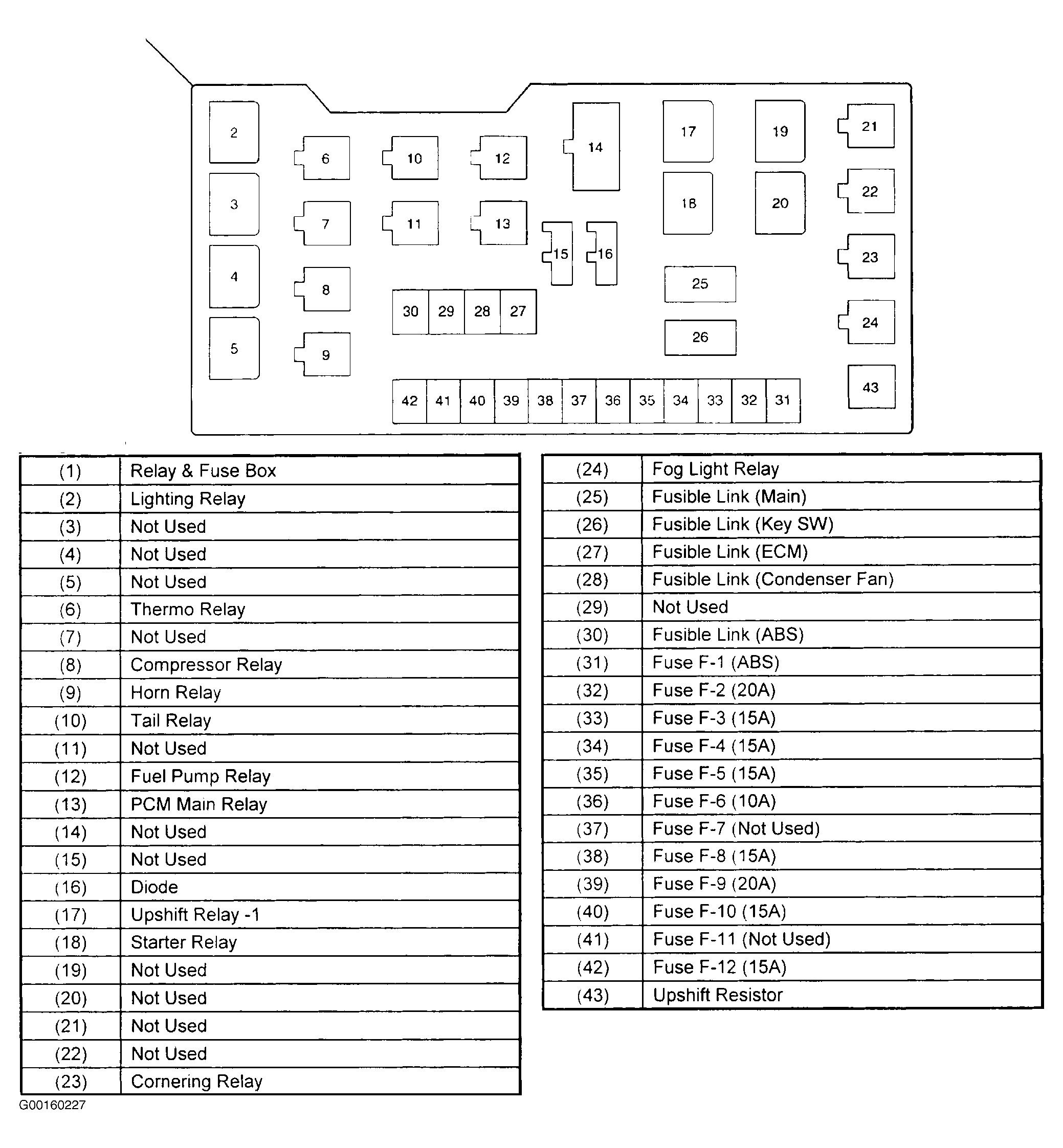

Fig 1: Identifying Relay & Fuse Box Component Identification

G00160227

Courtesy of ISUZU MOTOR CO.
