Home
>>
Isuzu
>>
2000
>>
Trooper LS, 4WD
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Fuse Box Component Identification
Fuse Box Component Identification
See
Fig 1
for relay layout.

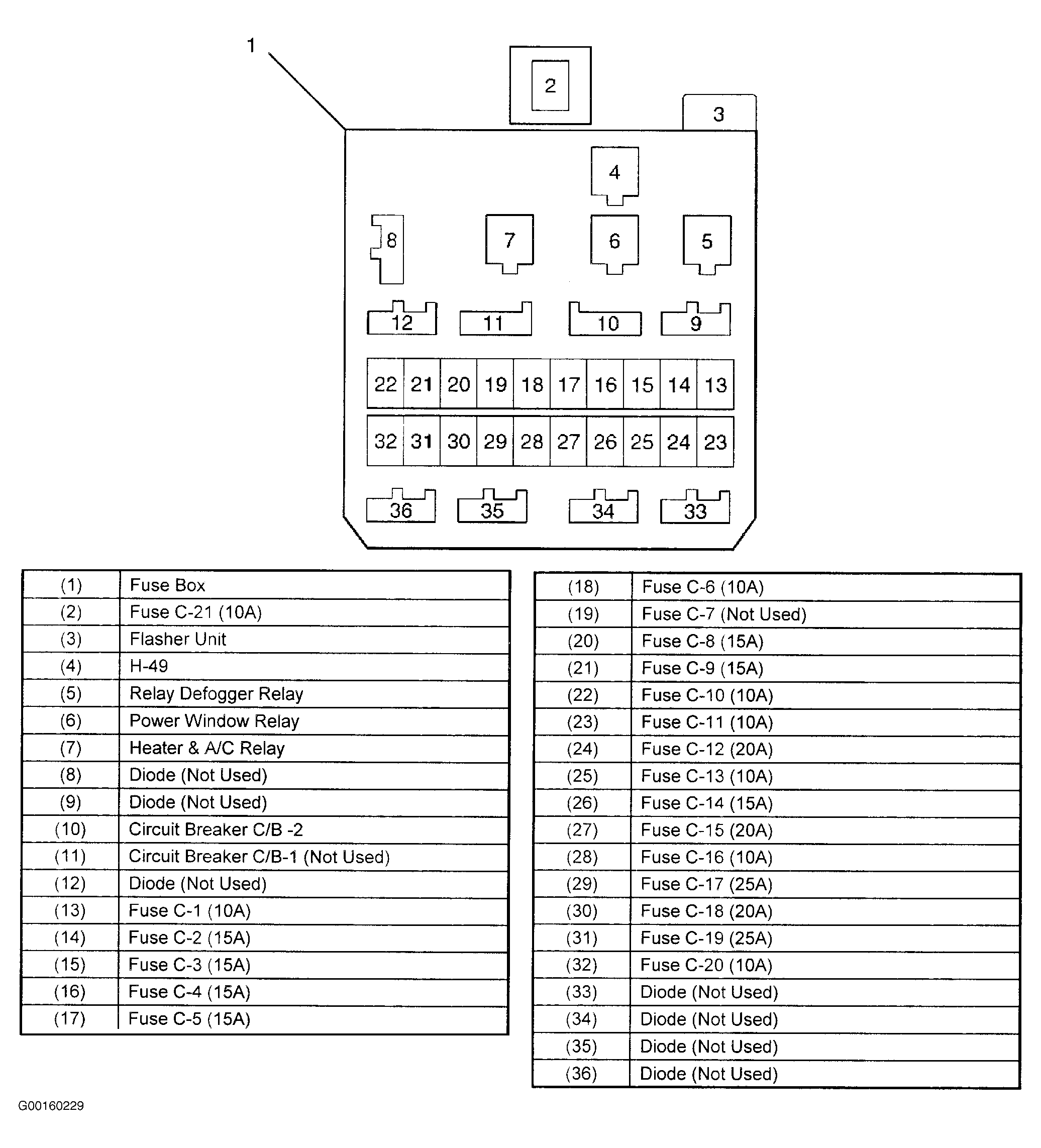

Fig 1: Identifying Fuse Box Component Identification
Courtesy of ISUZU MOTOR CO.
