Tailgate Strikers: Adjustment

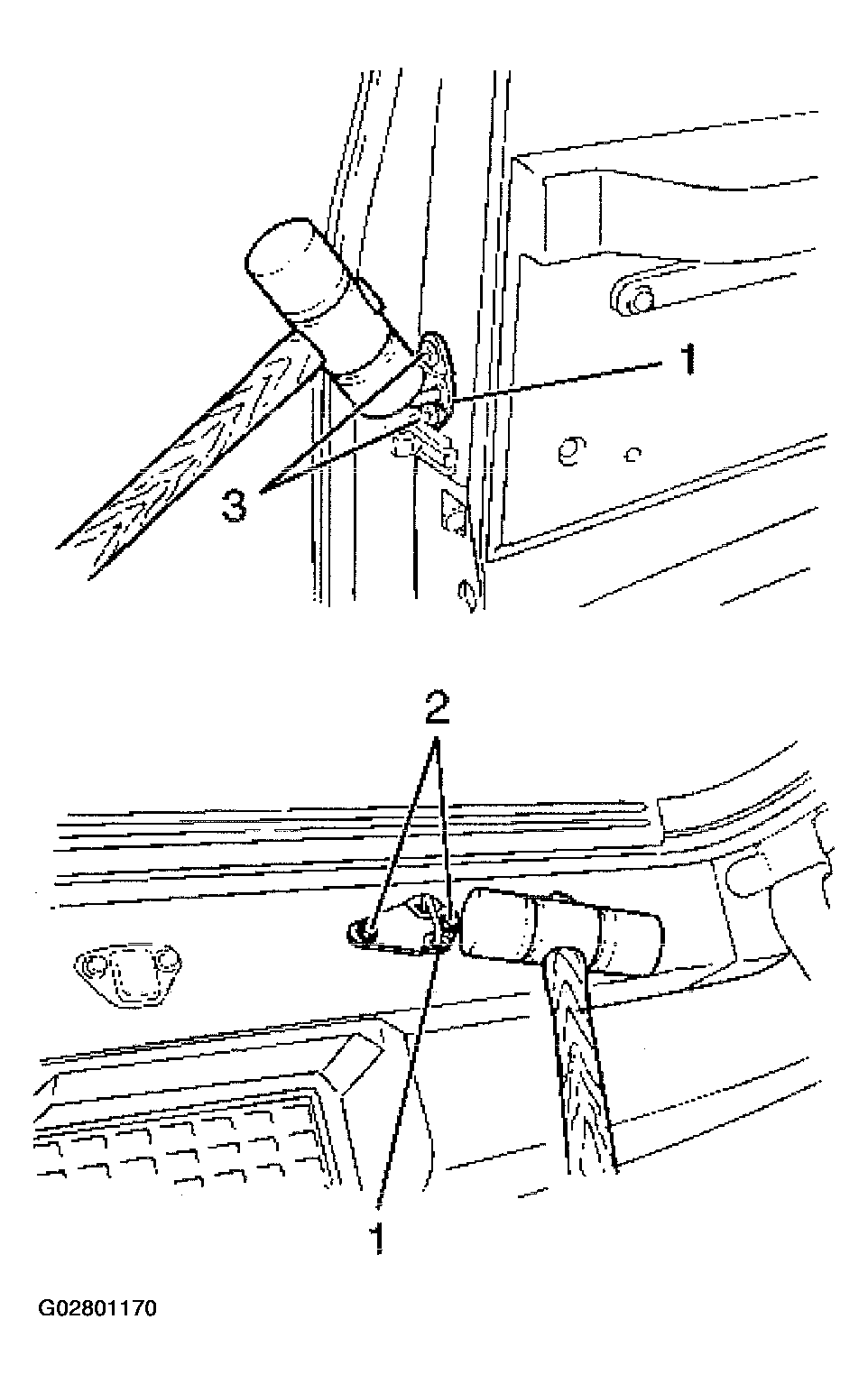

Fig 1: Adjusting Tailgate Striker

Courtesy of ISUZU MOTOR CO.

1. Loosen the striker screws (3) (or bolts (2)).
2. Tap the striker (1) with a plastic hammer to align.
3. Tighten the striker screws (3) (or bolts (2)).

Screw Torque:  15 N.m (11 lb ft)

Bolt Torque:  12 N.m (104 lb in)
