Rear Quarter Side Glass: Installation

Install the rear quarter side glass.
- Clean the bonding surfaces of both the glass and the body panel.
- Install the fasteners (1) to the fixed positions of the glass and the body panel.

  Fig 1: Installing Rear Quarter Side Glass
  Courtesy of ISUZU MOTOR CO.
- Always use new fasteners.
- Be absolutely sure to apply glass primer to the side glass.

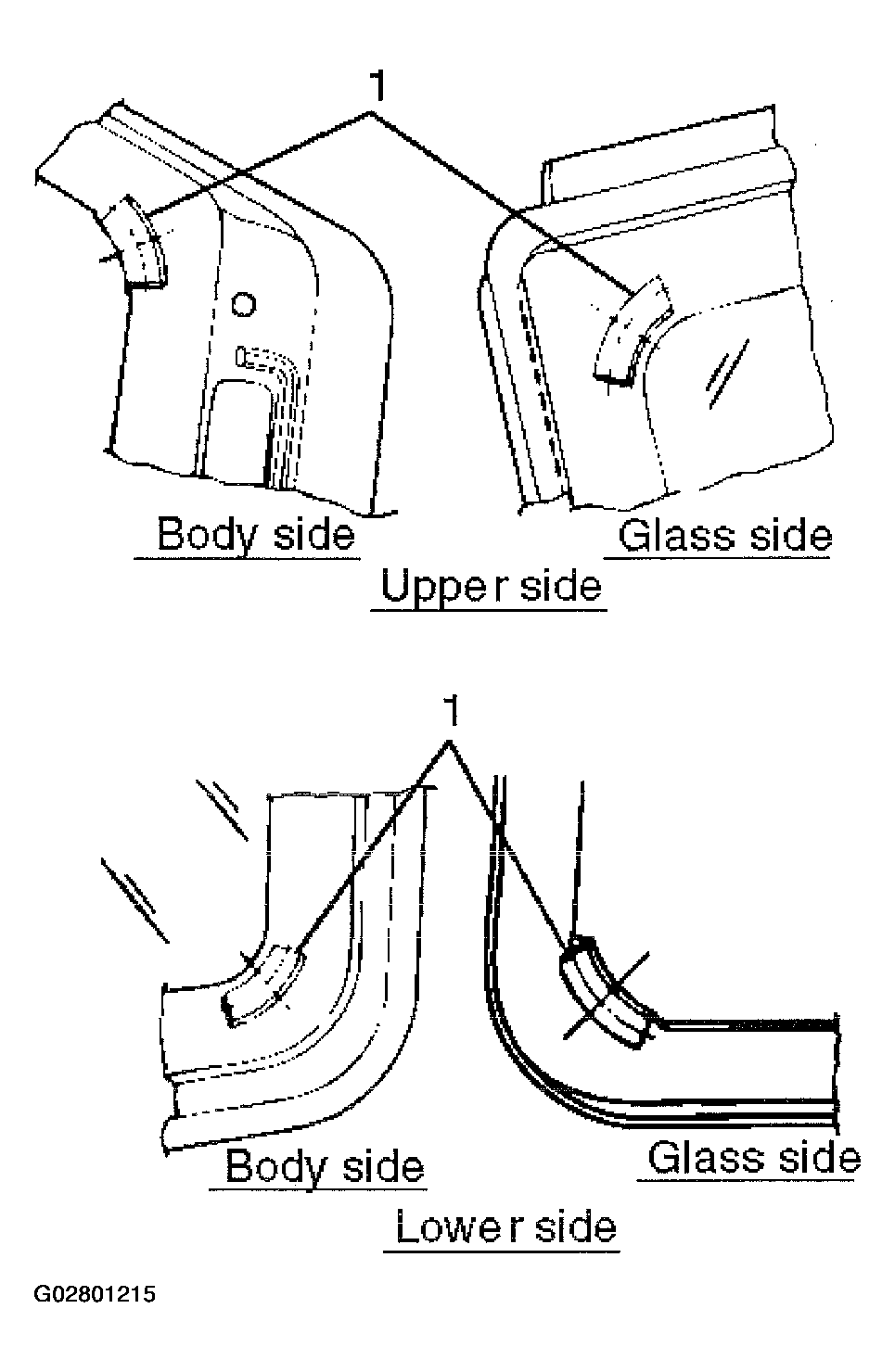

  Fig 2: Identifying Locations For Applying Glass Primer
  Courtesy of ISUZU MOTOR CO.

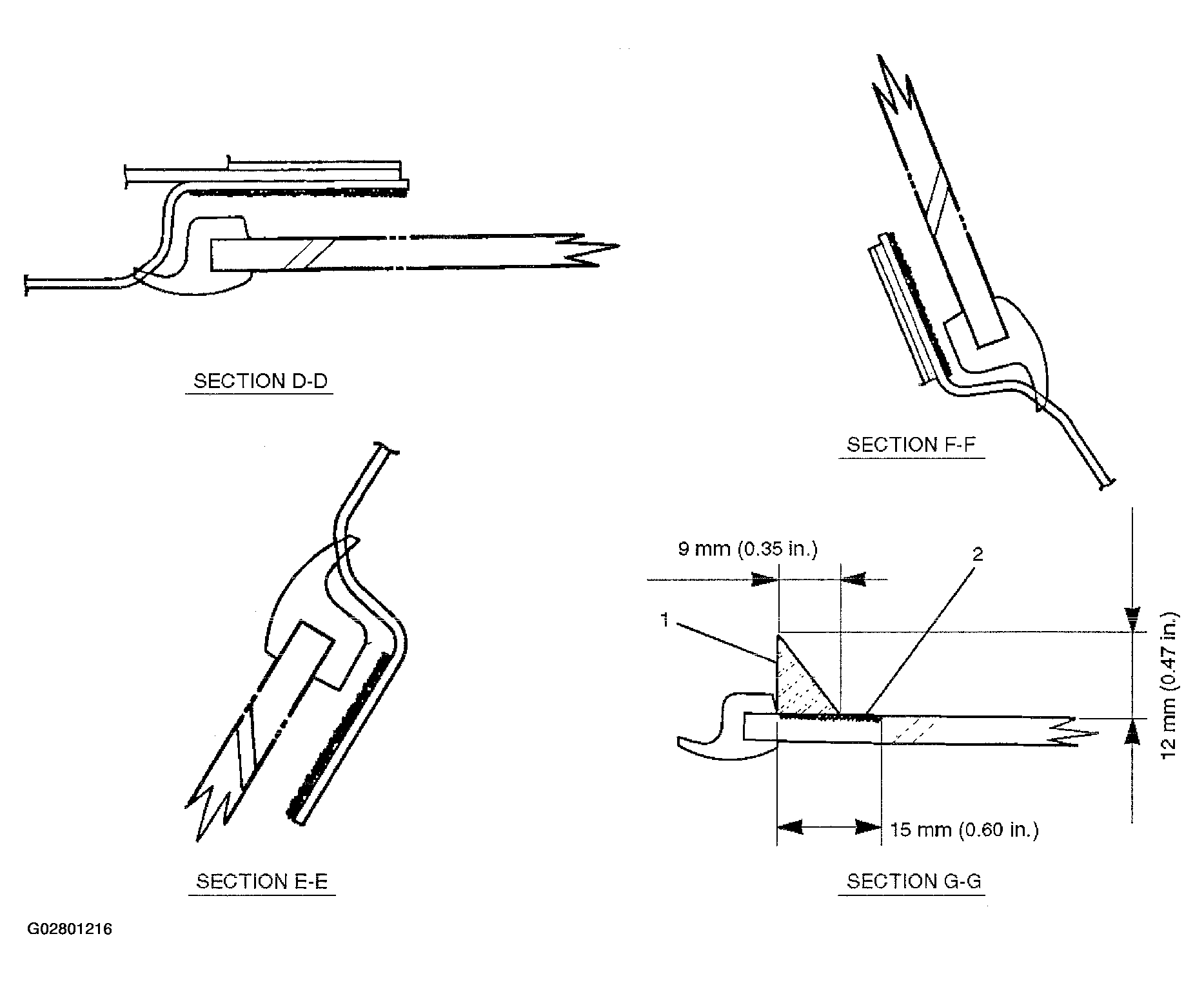

- Apply a sealing adhesive (1) to the glass circumference.

  Fig 3: Applying Sealing Adhesive To Glass Circumference
  Courtesy of ISUZU MOTOR CO.

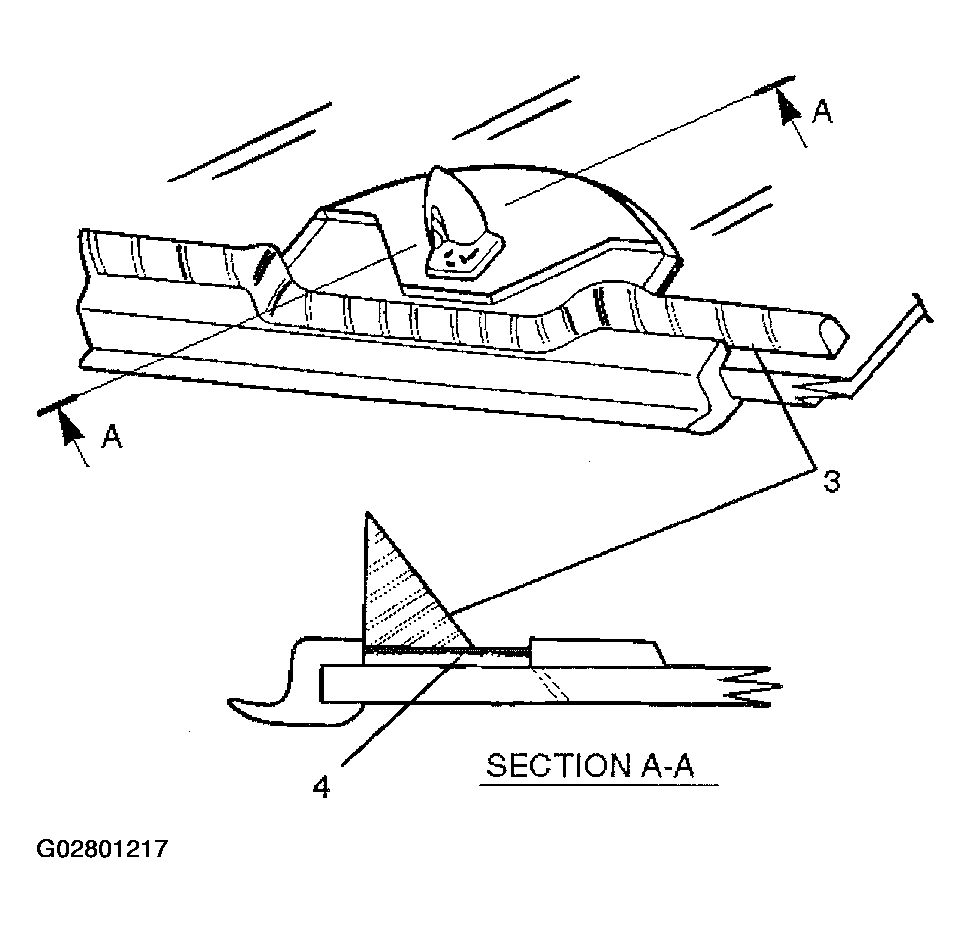

- Apply PVC primer (4) to the A clip portion.
- Insert the fixing clip on the side glass into the body panel.
- Push the side glass against the body panel and bond them.
- Cure the adhesive at a temperature of 20~30 °C (68~86 °F) for 24 hours.
- Check that the rear quarter side glass does not leak water.
Install the valve assembly.
Install the ventilation assembly.
Install the rear quarter upper trim panel.
