Rear Door Moulding: Removal

  1. Disconnect the battery ground cable.
  2. Remove rear door side moulding.
  3. Remove rear door upper moulding.
  4. Remove rear door corner moulding.
    • Avoiding the weatherstrip (3), pry the moulding (2) out from the door frame (1).

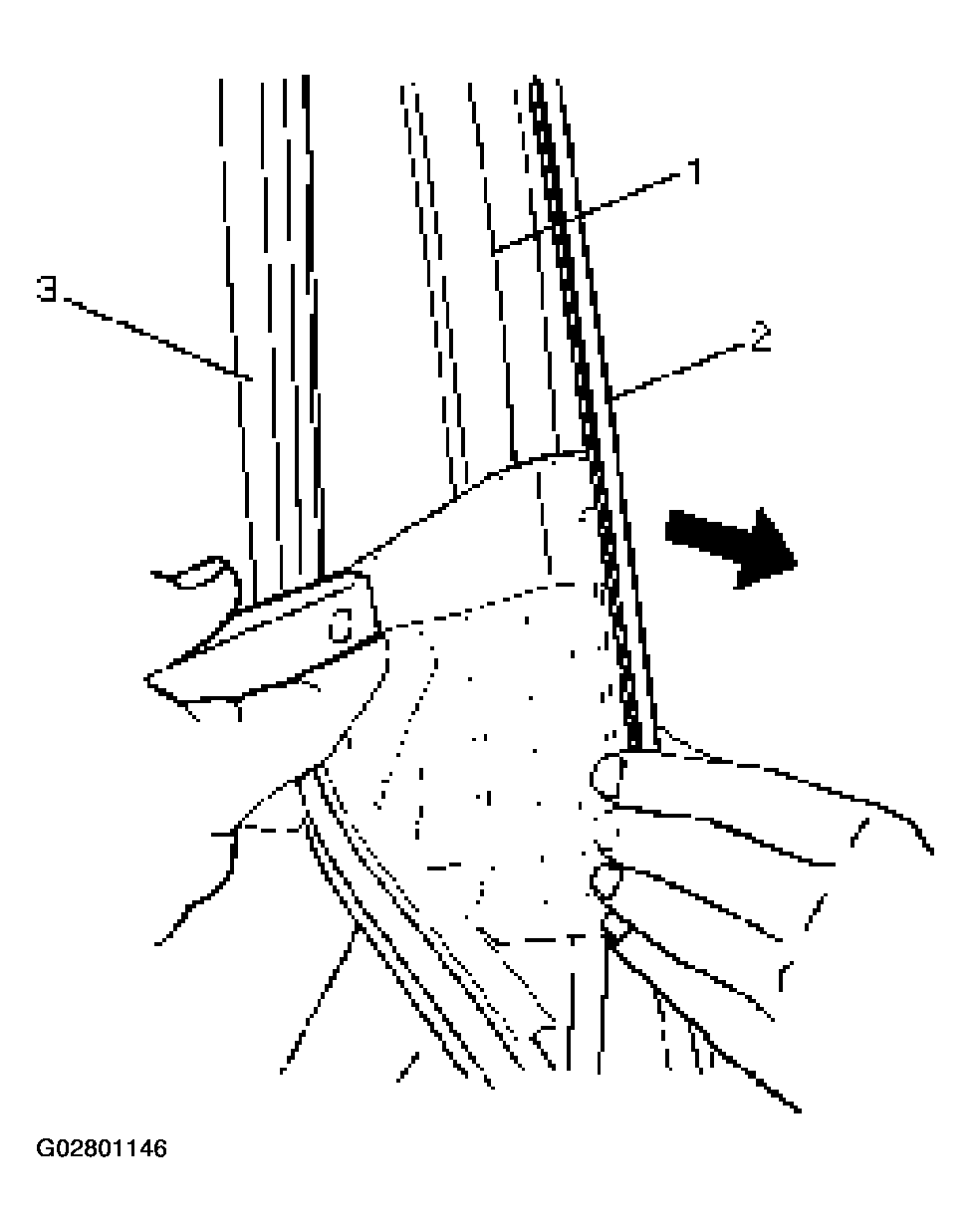

    Fig 1: Removing Rear Door Corner Moulding
    G02801146Courtesy of ISUZU MOTOR CO.
