Home >> Isuzu >> 2000 >> Rodeo LSE, 2.2 D >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics - 2.2L >> Diagnostic Trouble Code Identification >> DTC P0449: EVAP System Vent Valve/Solenoid Circuit Malfunction >> Notes

DTC P0449: EVAP System Vent Valve/Solenoid Circuit Malfunction: Notes

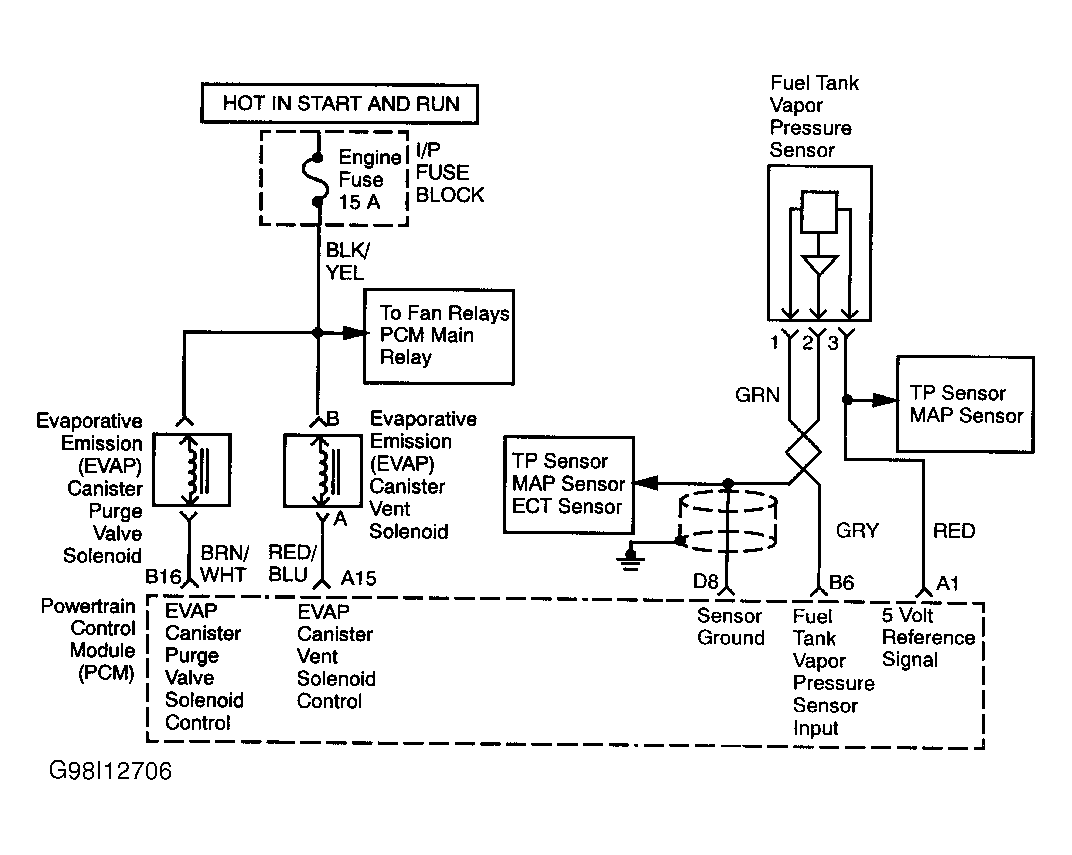

NOTE: Use illustration for circuit reference. See Figure.
