Clutch Slave Cylinder: Reassembly

Ensure all openings and internal passages are clear of foreign matter. Lubricate parts with brake fluid. To assemble, reverse disassembly procedure. Bleed hydraulic system. See BLEEDING .

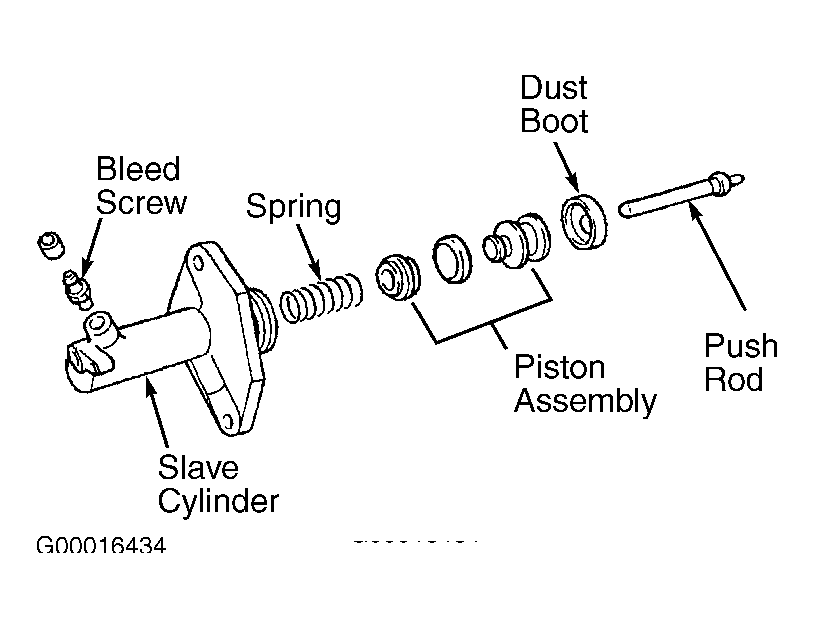

Fig 1: Exploded View Of Slave Cylinder (Typical)

Courtesy of ISUZU MOTOR CO.
