Except Hombre
NOTE:
Rear riding height inspection procedures and specifications for Amigo, Rodeo, Trooper and VehiCROSS are not available from manufacturer.

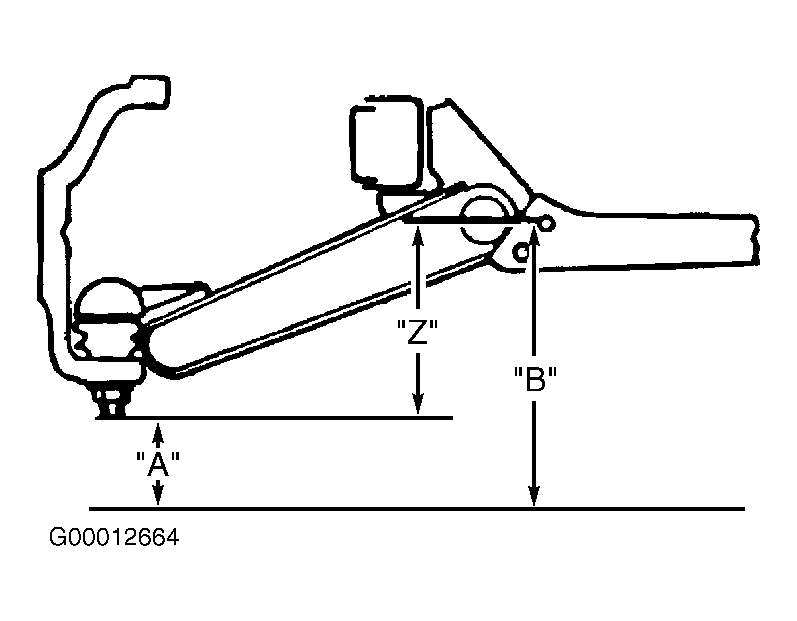

- To measure front riding height, jounce vehicle several times and allow suspension to settle. Obtain dimension "Z" by subtracting dimension "A" from dimension "B". See Fig 1. Dimension "Z" is true front riding height.

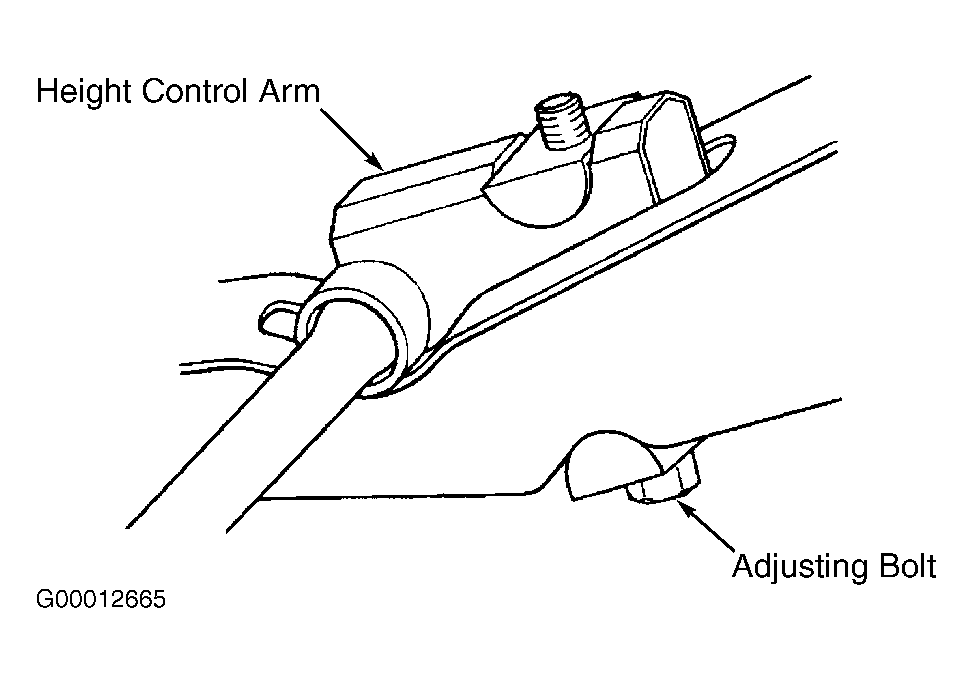

- Ensure front riding height is within specification. See RIDING HEIGHT SPECIFICATIONS (EXCEPT HOMBRE) table. If front riding height is not within specification, adjust height control arms by rotating adjusting bolts. See Fig 2. If correct riding height cannot be obtained by adjustment, inspect suspension components for damage or wear. Replace components as necessary and recheck.
RIDING HEIGHT SPECIFICATIONS (EXCEPT HOMBRE)
| Application | Front "Z" - In. (mm) |
|---|---|
| Amigo, Rodeo & Rodeo Sport | 4.488-4.882 (114-124) |
| Trooper | 5.079 (129) |
| VehiCROSS | 4.685 (119) |
