CURTIS Key Code Cutter And Application Listing (SB03-14-S001)
Publication date: 2003-04-01Reference number: SB03-14-S001
Supersedes refnos: SB00-14-S002
CURTIS KEY CODE CUTTER AND APPLICATION LISTING
TECHNICAL SERVICE BULLETIN
Reference Number(s): SB03-14-S001, Date of Issue:
April, 2003
| ISUZU: | All Isuzu Vehicles |
| AFFECTED VEHICLES: | All Isuzu Vehicles |
SERVICE INFORMATION

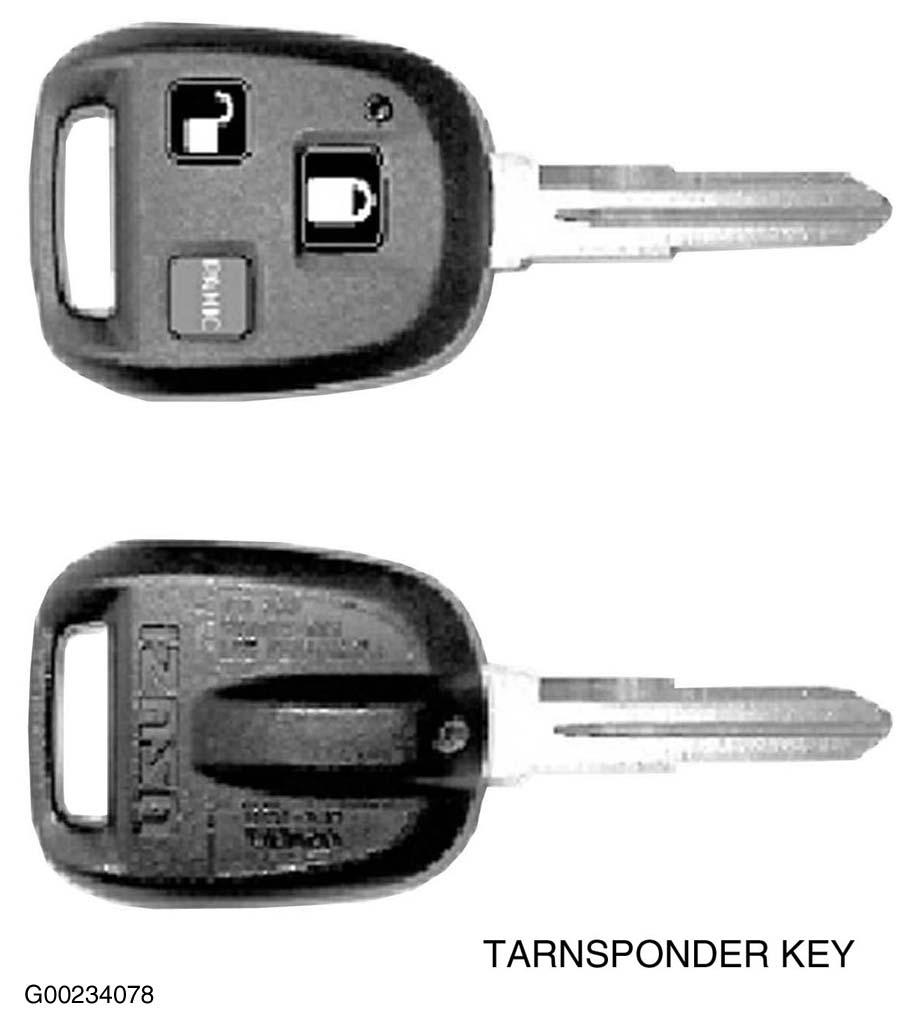

Beginning with the 2003 Model Year, Isuzu introduced the Isuzu Immobilizer System in the Rodeo, Rodeo Sport and Axiom with 3.2L/3.5L engines. An integral component of the Immobilizer System is the Transponder Key (See Fig 1 ).
Due to the configuration of the Transponder Key, cutting a key blank using the Curtis No. 15 Code Cutter is not possible. However, the Transponder Key can be cut using a Curtis No. 15 XL Code Cutter or the Curtis PC+ HD Computerized Code Cutter.

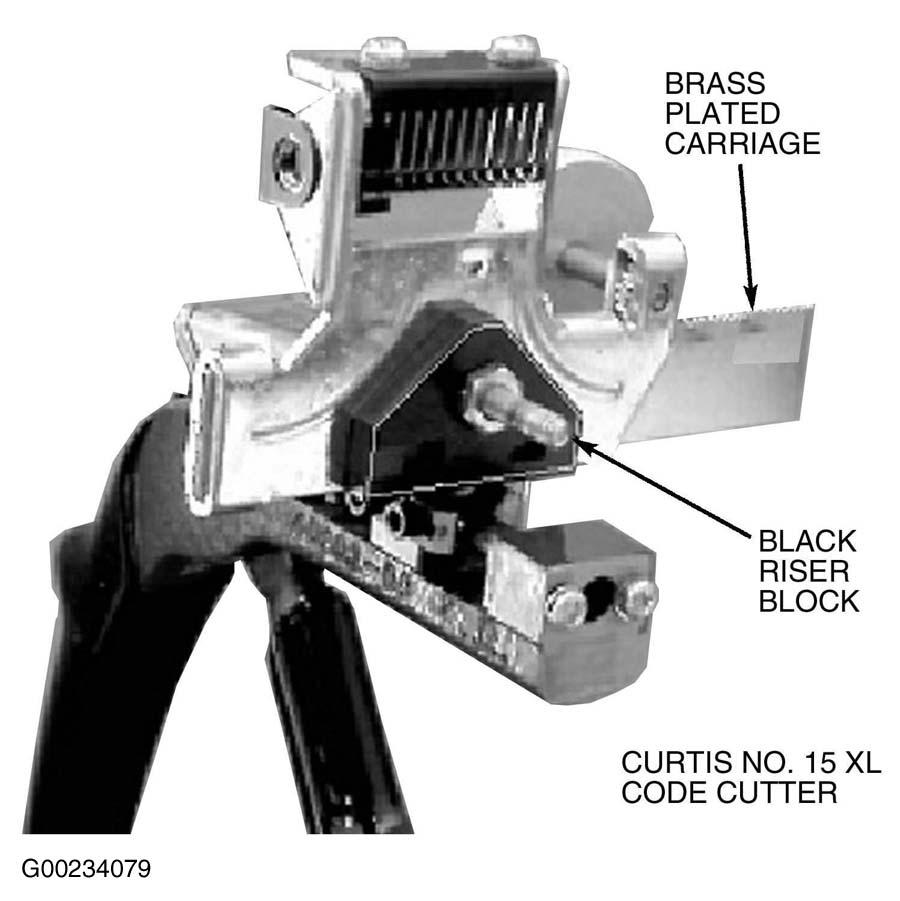

The Curtis No. 15 XL Code Cutter is identified by a brass plated carriage and black riser block (See Fig 2 ).
NOTE:
Vehicles with the Immobilizer must have ALL Transponder Keys reprogrammed to a vehicle when a new key is programmed. Refer to the Immobilizer System section of the Service Manual.
For questions regarding Code Cutters, codes, keys, and applications, please contact:
Curtis Industries
(800) 555-2878

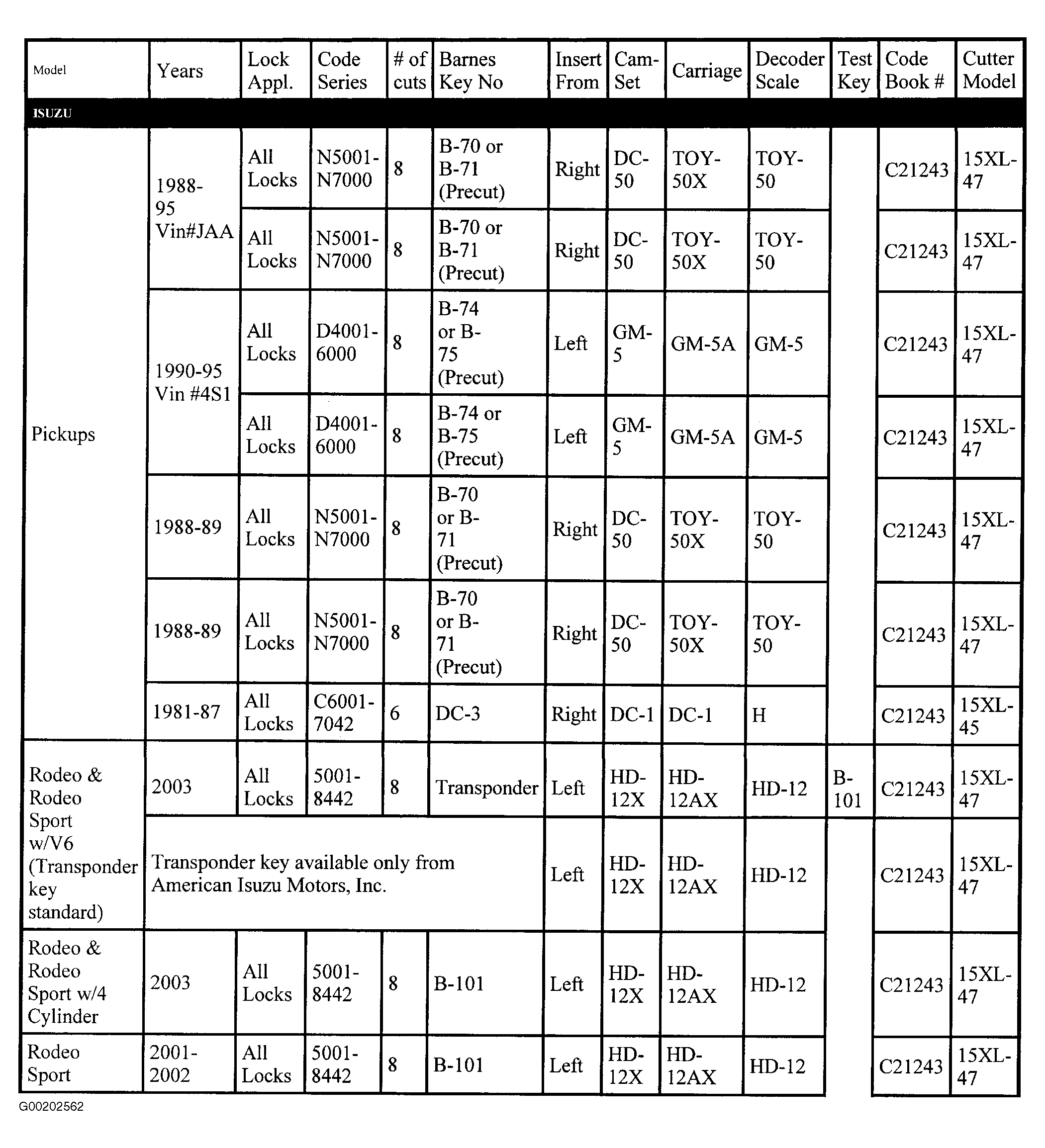

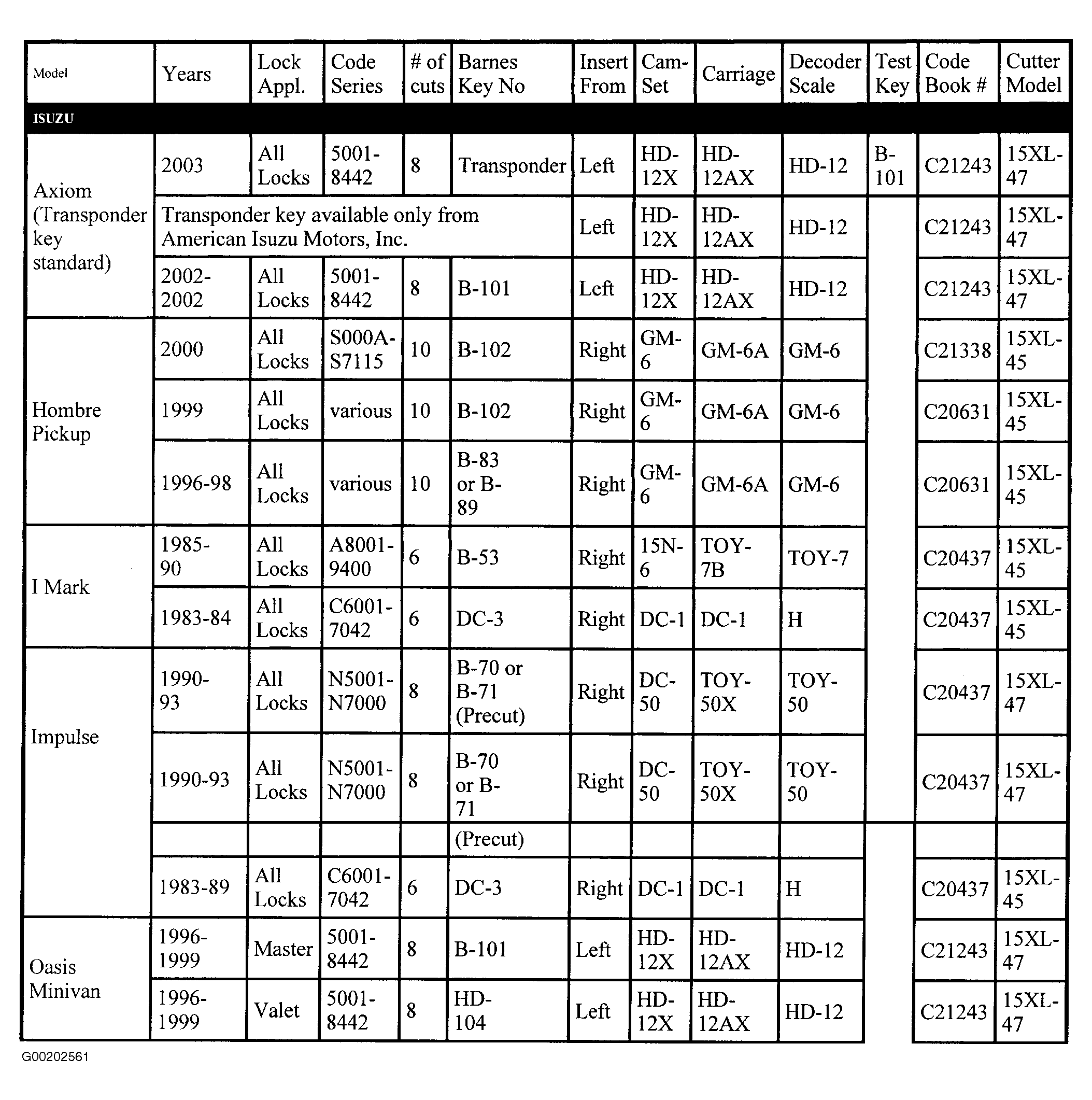

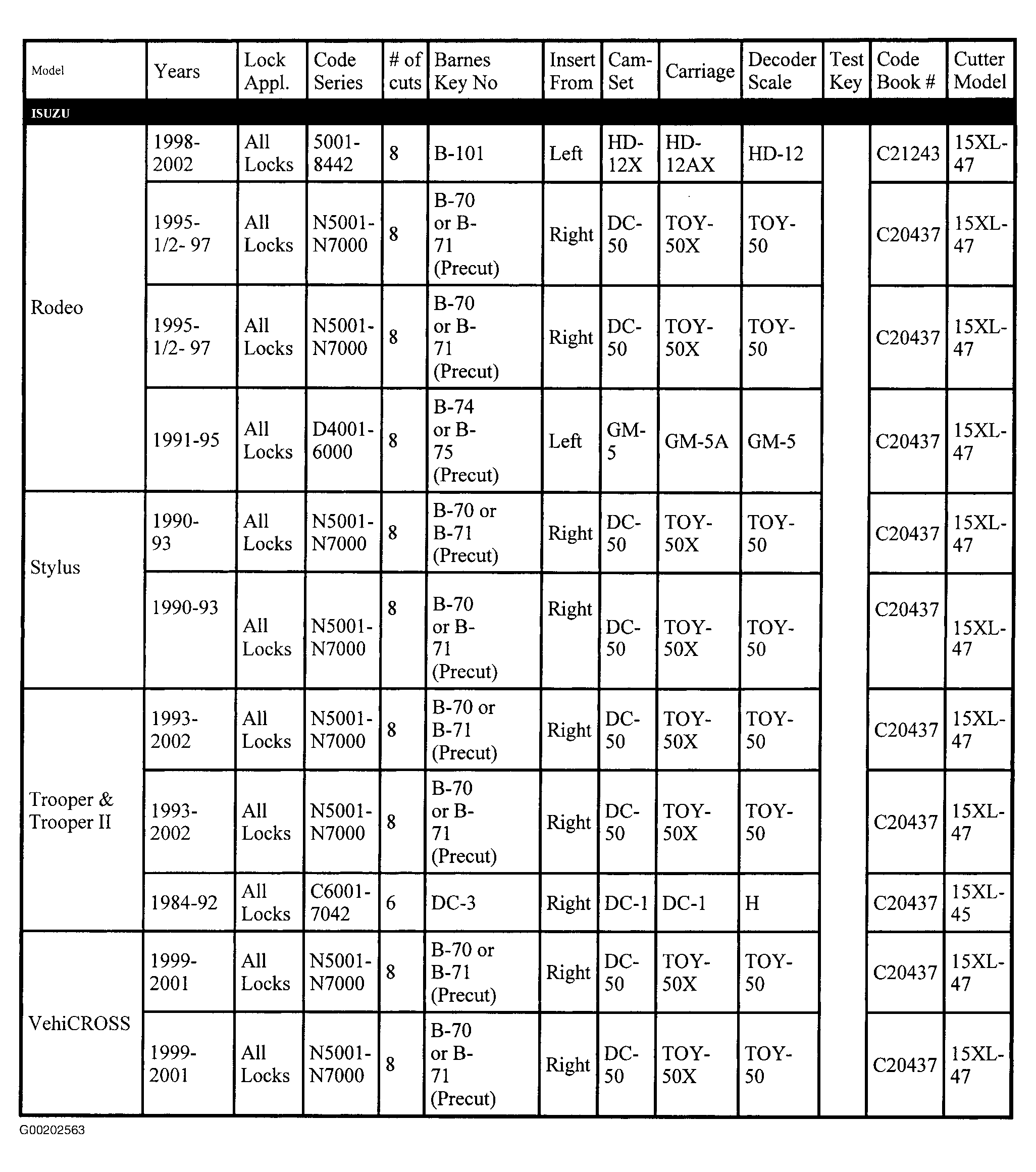

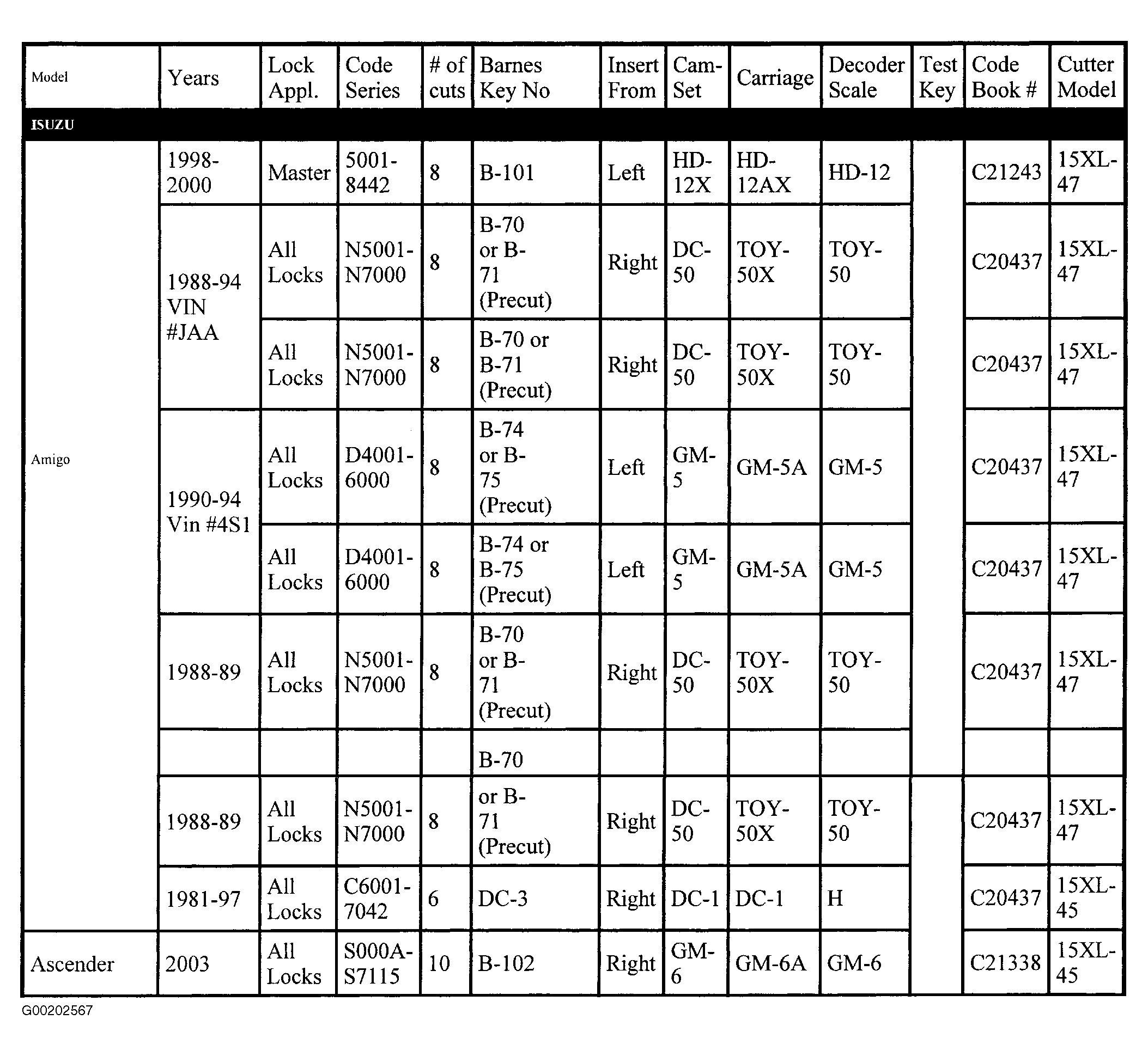

CURTIS NO. 15 XL CODE CUTTER APPLICATION INFORMATION
CURTIS NO. 15 XL CODE CUTTER APPLICATION INFORMATION
| Cam-Set Description | Cam-Set Item Number | Carriage Description | Carriage Item No. |
|---|---|---|---|
| HD-12X | 20420 | HD-12AX | 20421 |
| GM-6 | 20596 | GM-6A | 20597 |
| DC-50 | 20352 | TOY-50X | 20353 |
NOTE:
Key blanks for 2002 model year and earlier can continue to be cut using the new Curtis No. 15 Code Cutter.
