Disabling System
WARNING: This page is about a different car, the 1999 Isuzu VehiCROSS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When disconnected, driver-side and passenger-side air bag connectors are automatically shorted.

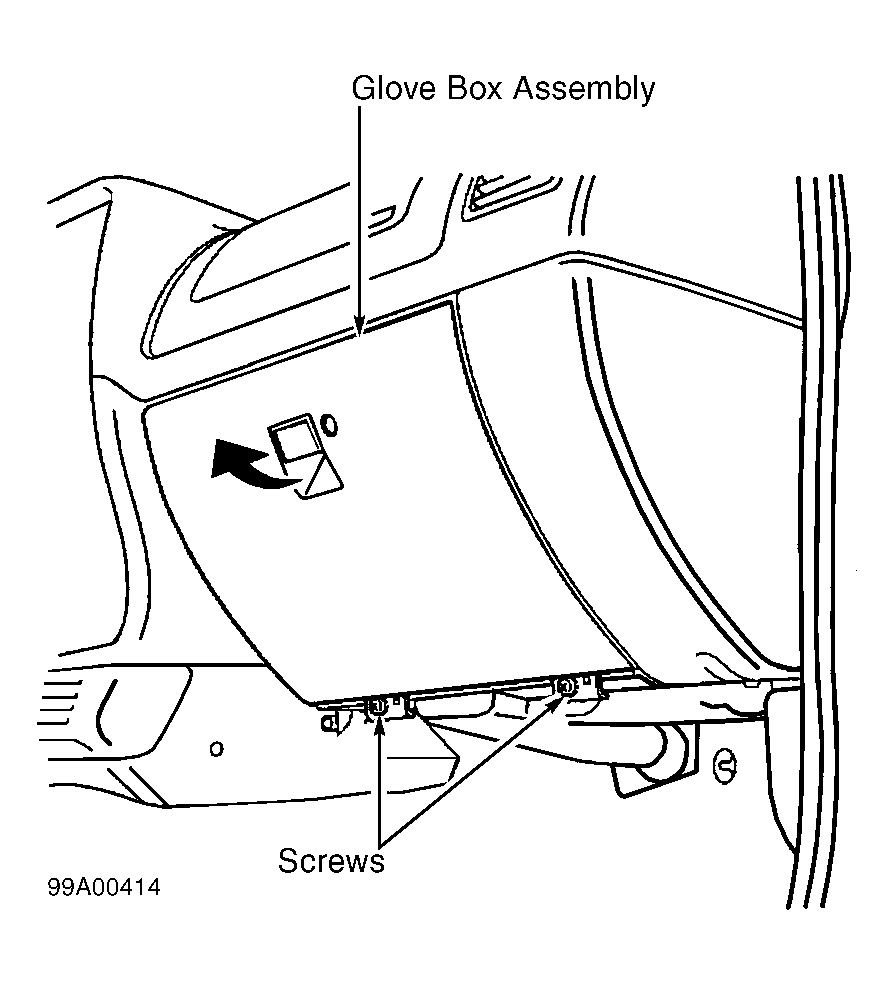

Turn ignition switch to OFF position. Turn steering wheel so front wheels point straight ahead. Remove SRS fuse C-21 (10 amp) from left dash side lower fuse block or disconnect battery. See Figure . Disconnect driver-side air bag 2-pin connector at base of steering column. Remove glove box assembly. See Fig 1 . Disconnect passenger-side air bag 2-pin connector behind glove box assembly.
