SRS Coil Alignment
WARNING: This page is about a different car, the 1999 Isuzu VehiCROSS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When turning SRS coil fully counterclockwise, stop turning when resistance is felt. Forced turning may damage cable in SRS coil.

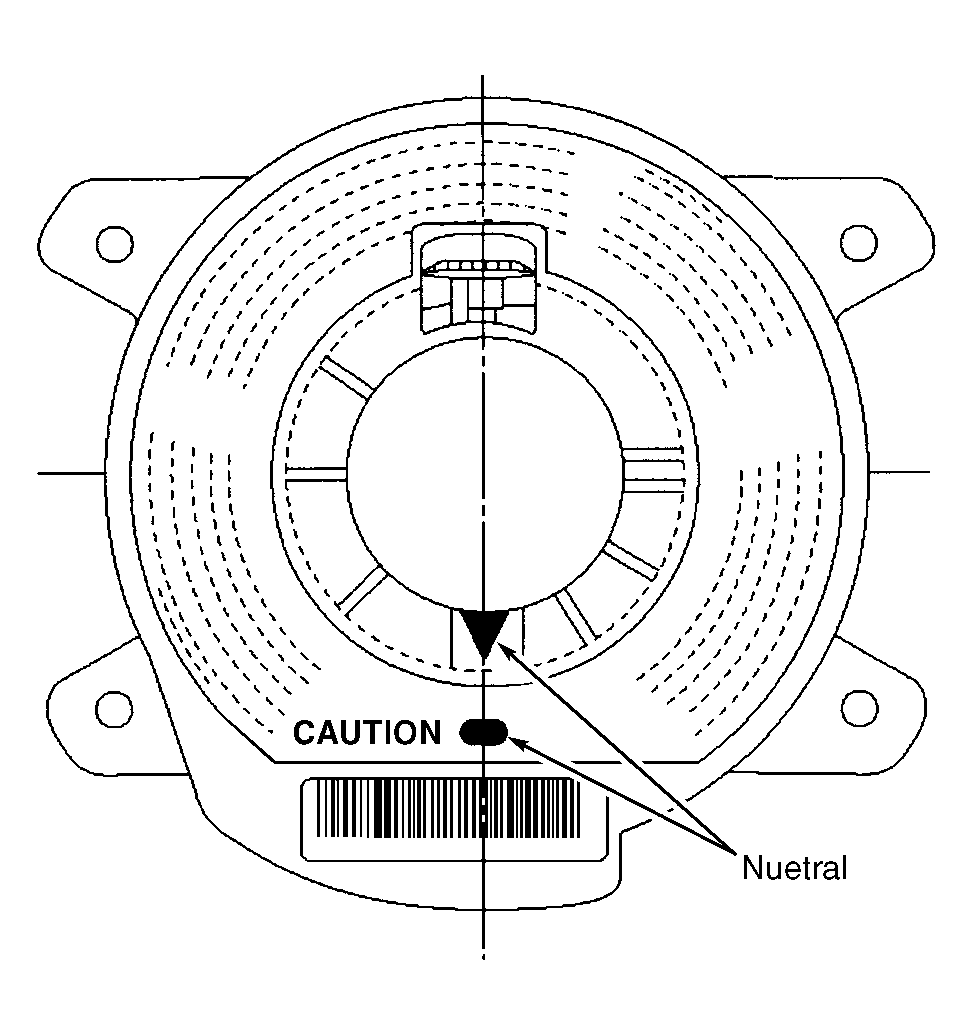

With SRS coil installed, rotate fully counterclockwise. Rotate SRS coil clockwise about 3 turns until neutral marks align. See Fig 1 .
