Disabling System
WARNING: This page is about a different car, the 1999 Isuzu Rodeo and 1999 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When disconnected, driver-side and passenger-side air bag connectors are automatically shorted.

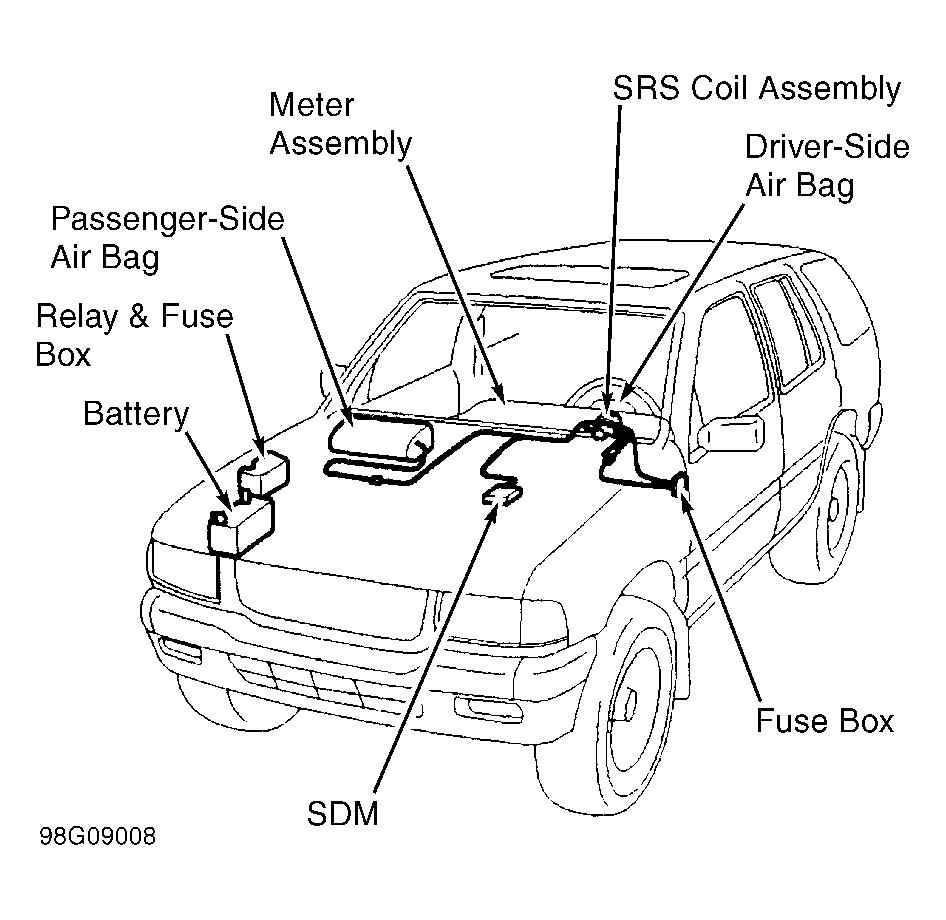

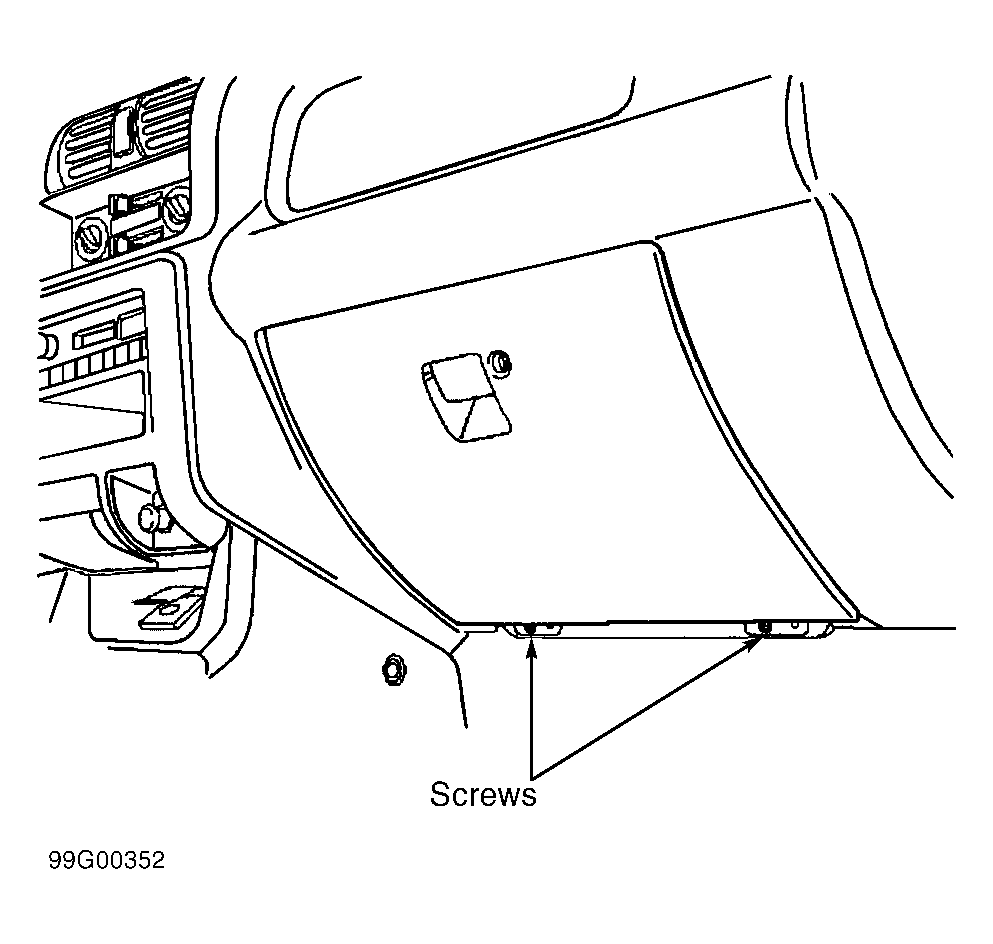

Turn ignition switch OFF and turn steering wheel so front wheels point straight ahead. Remove SRS fuse SRS-1 (10 amp) from left dash side lower fuse block or disconnect battery. See Figure . Disconnect driver-side air bag 2-pin connector at base of steering column. Remove glove box assembly. See Fig 1 . Disconnect passenger-side air bag 2-pin connector behind glove box assembly.
