Rear Doors (Trooper)

  1. Disconnect negative battery cable. Remove power window switch. See FRONT & REAR DOORS (TROOPER)  under POWER WINDOW SWITCH. Remove inside handle retainer screw and gently slide handle forward. Remove 2 inner panel screws. Pry loose 7 inner panel clips and remove panel. See Fig 1. Unplug electrical connectors and lift panel up and off of door.
  2. Remove waterproof sheet. Roll glass down until glass retaining bolts can be accessed and removed. Unbolt and remove glass. Disconnect power window motor. Remove window regulator screws and remove window regulator. Remove regulator assembly from access hole in lower portion of door. Remove power window motor retaining screws and remove motor from window regulator.
  3. To install, reverse removal procedure. Install inner door handle to actuator rod before installing door panel. Feed handle through panel when reinstalling.

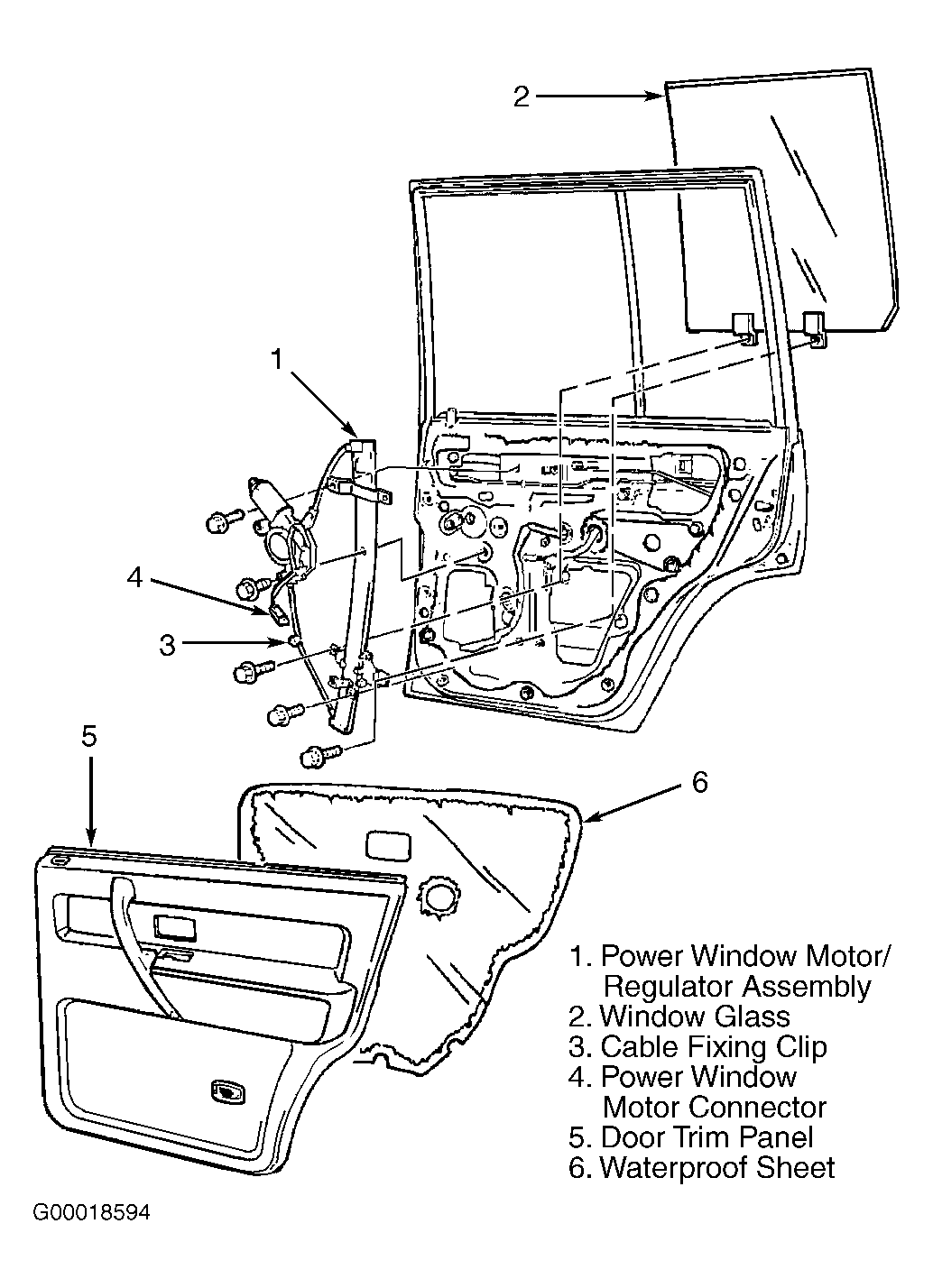

Fig 1: Identifying Rear Power Window & Door Components (Trooper)
G00018594Courtesy of ISUZU MOTOR CO.
