Front Doors (Trooper)

  1. Disconnect negative battery cable. Remove door mirror cover (or tweeter, if equipped). Remove power window switch. See FRONT & REAR DOORS (TROOPER)  under POWER WINDOW SWITCH. Remove speaker cover and speaker. Remove inside handle retainer screw and gently slide handle forward.
  2. Remove 2 door trim panel screws. Remove door trim panel and waterproof shield. See Fig 1. Roll glass down until glass retaining bolts can be accessed and removed. Disconnect power window motor. Remove window regulator screws and remove window regulator. Remove regulator assembly from access hole in lower portion of door. Remove power window motor retaining screws and remove motor from window regulator.
  3. To install, reverse removal procedure. Install inner door handle to actuator rod before installing door panel. Feed handle through panel when reinstalling.

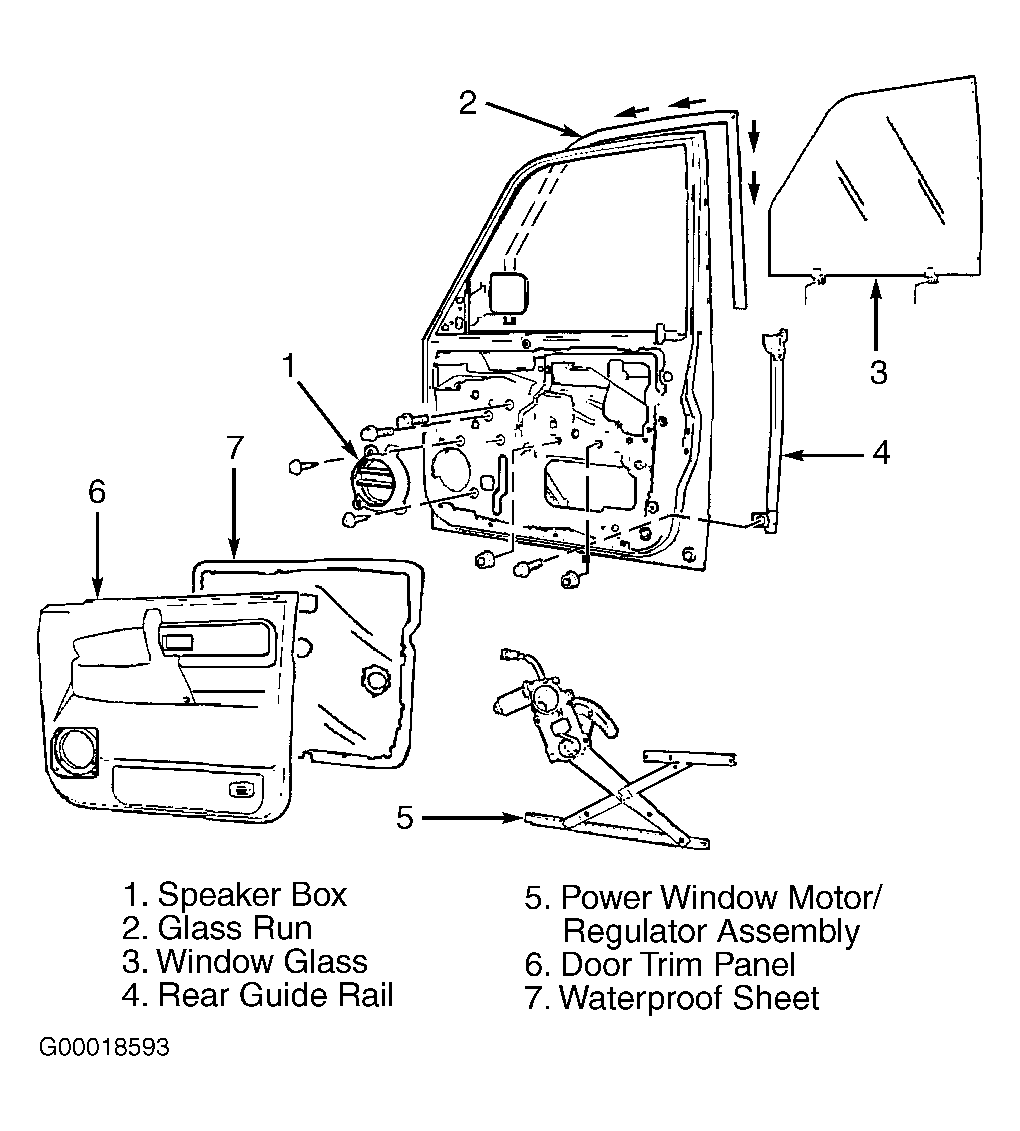

Fig 1: Identifying Front Power Window & Door Components (Trooper)
G00018593Courtesy of ISUZU MOTOR CO.
