Component Locations
REAR SUSPENSION COMPONENT LOCATIONS
| Component | Location |
|---|---|

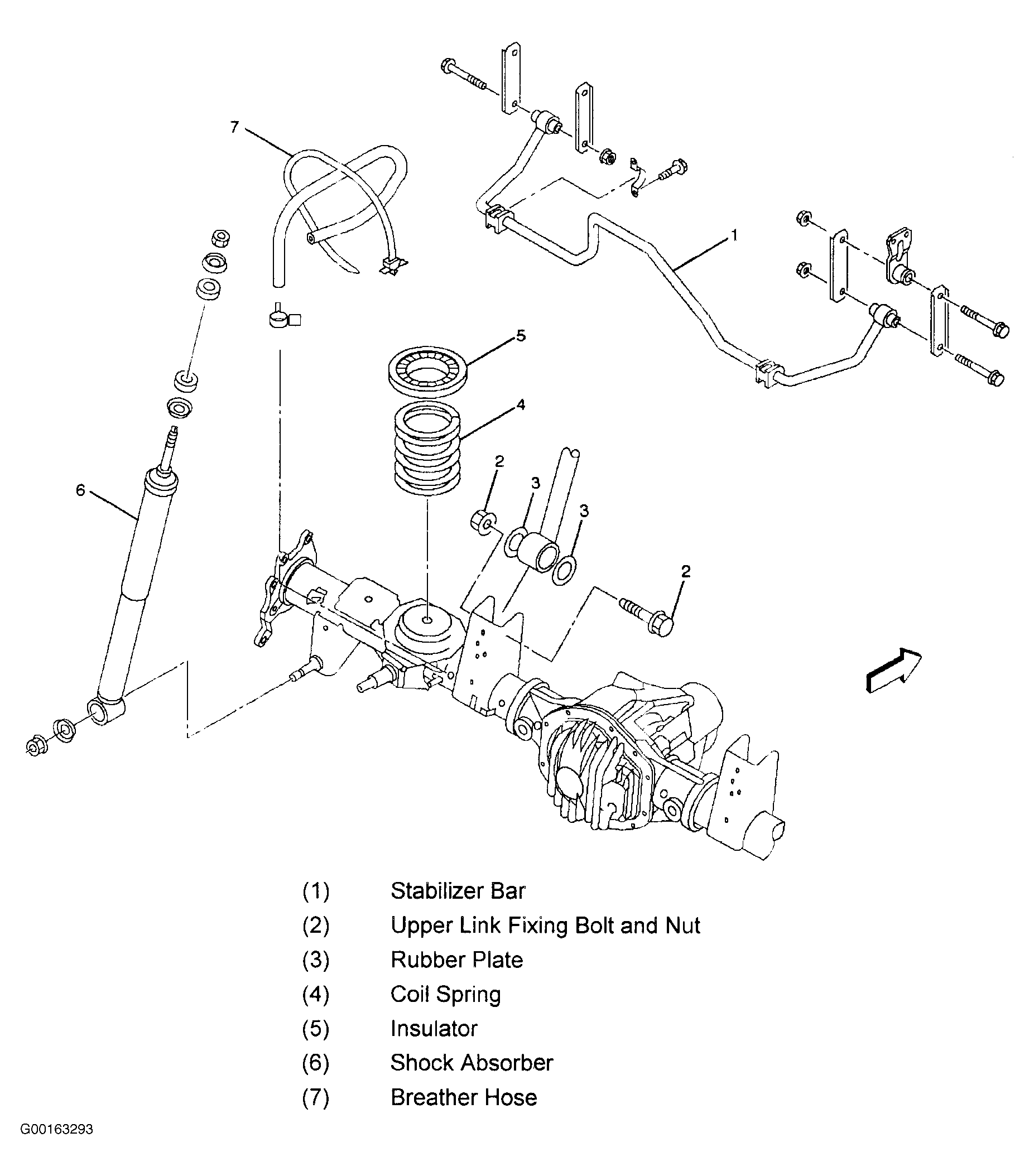

| Coil Spring | Attached To Rear Drive Axle Of Vehicle And Body Of Vehicle. See Figure. |

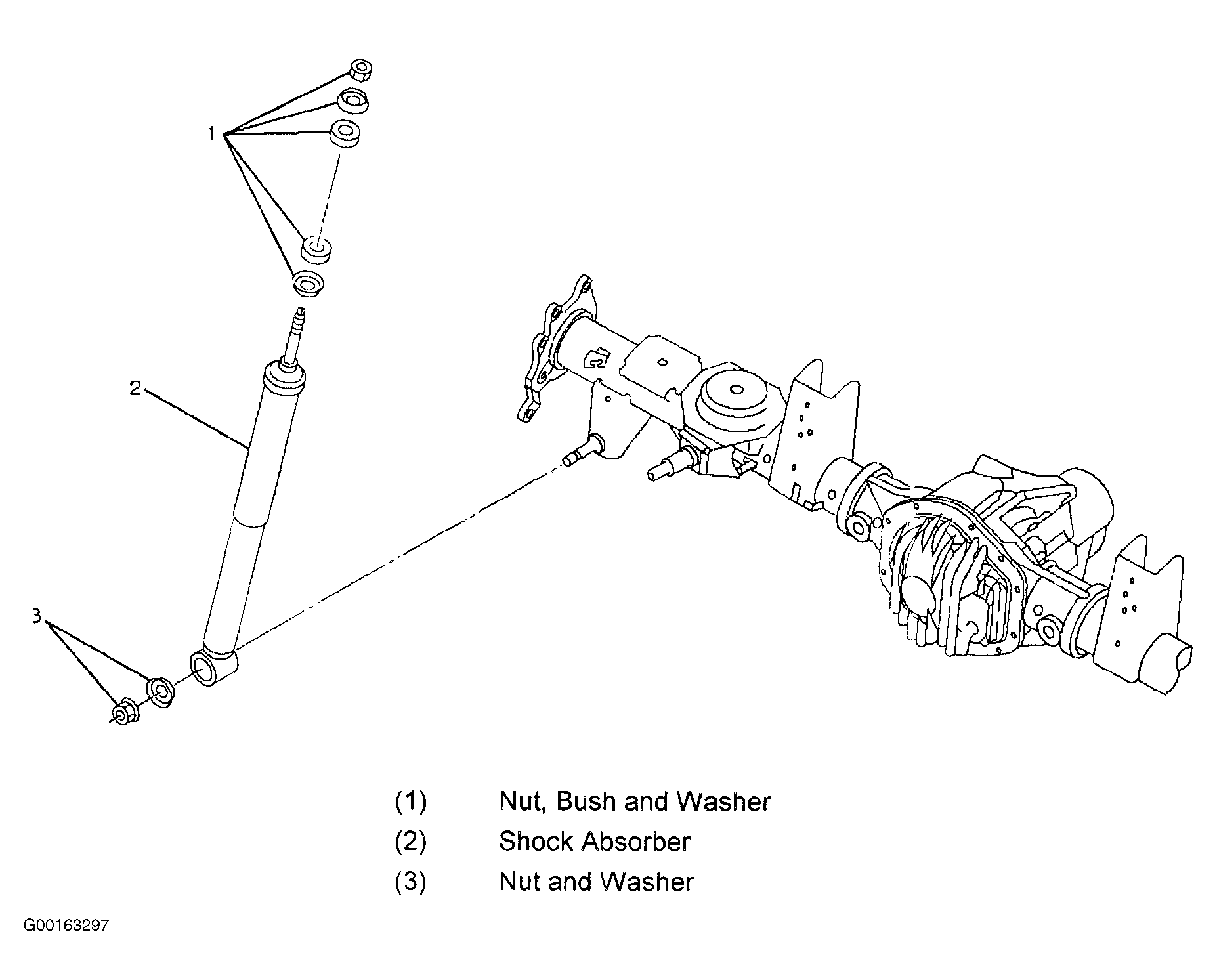

| Shock Absorber | Attached To Rear Drive Axle Of Vehicle And Frame Of Vehicle. See Figure. |

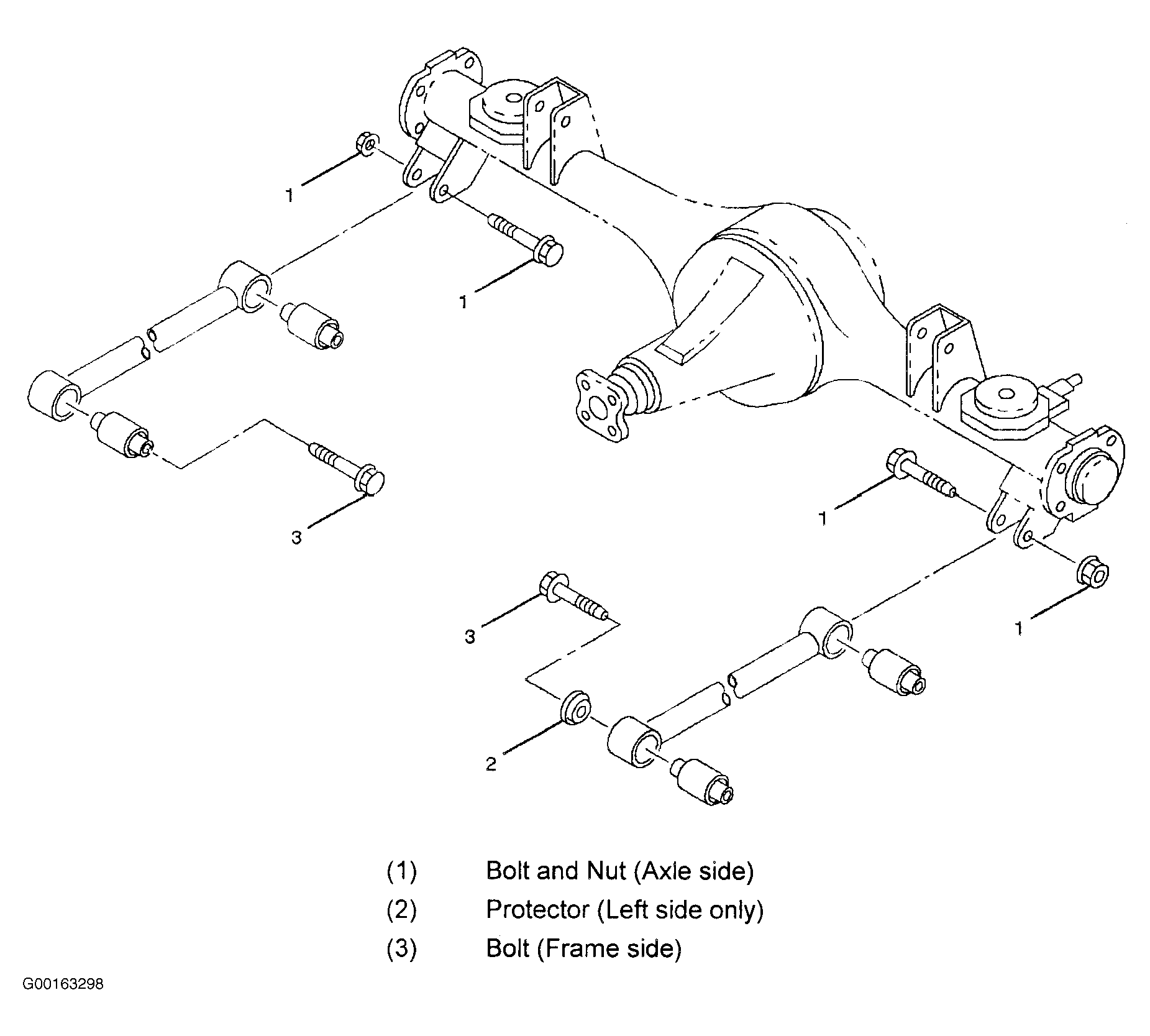

| Trailing Link | Attached To Bottom Of Drive Axle And Frame Assembly. See Figure. |

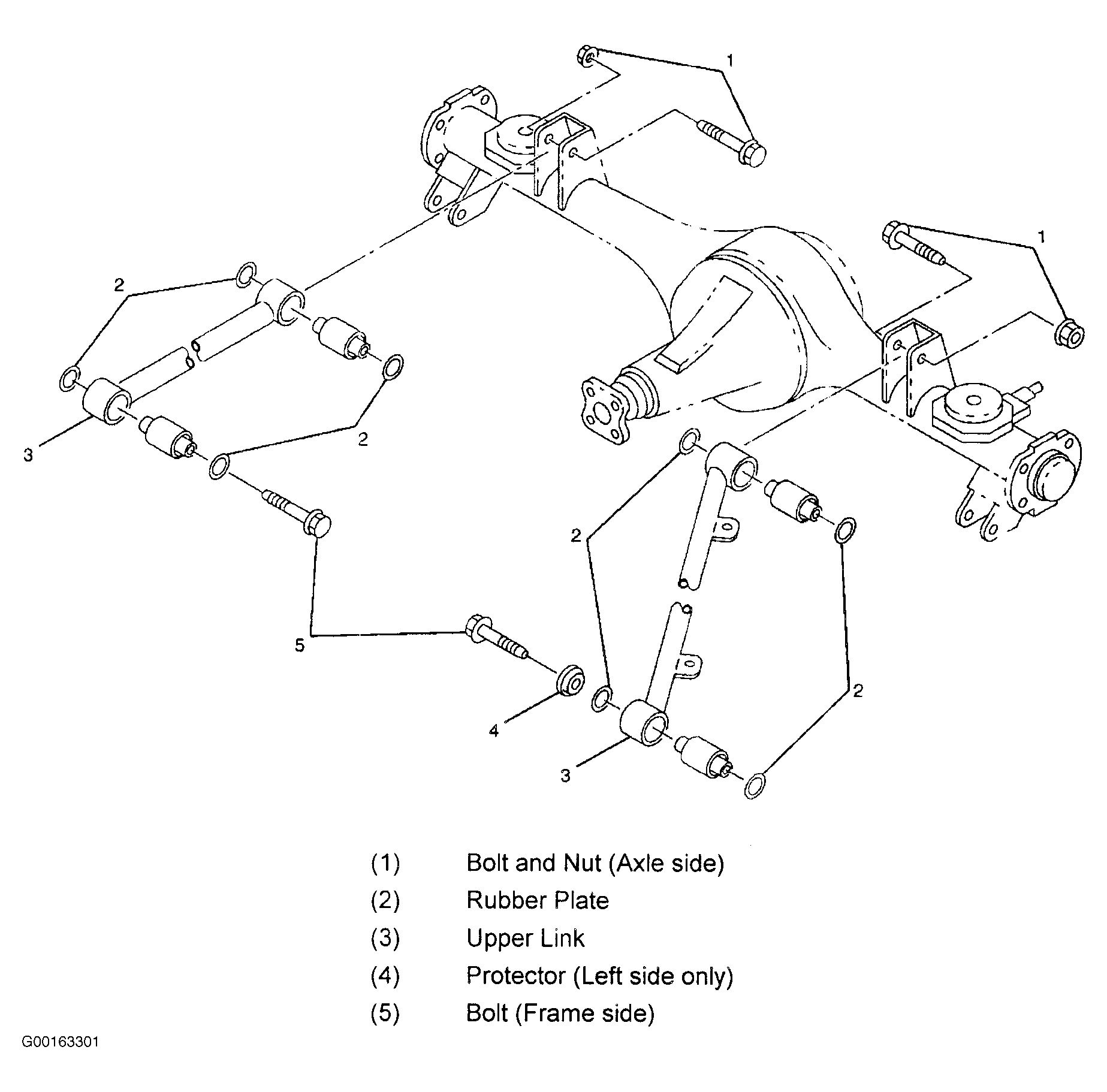

| Upper Link | Attached To Top Of Drive Axle And Frame Assembly. See Figure. |

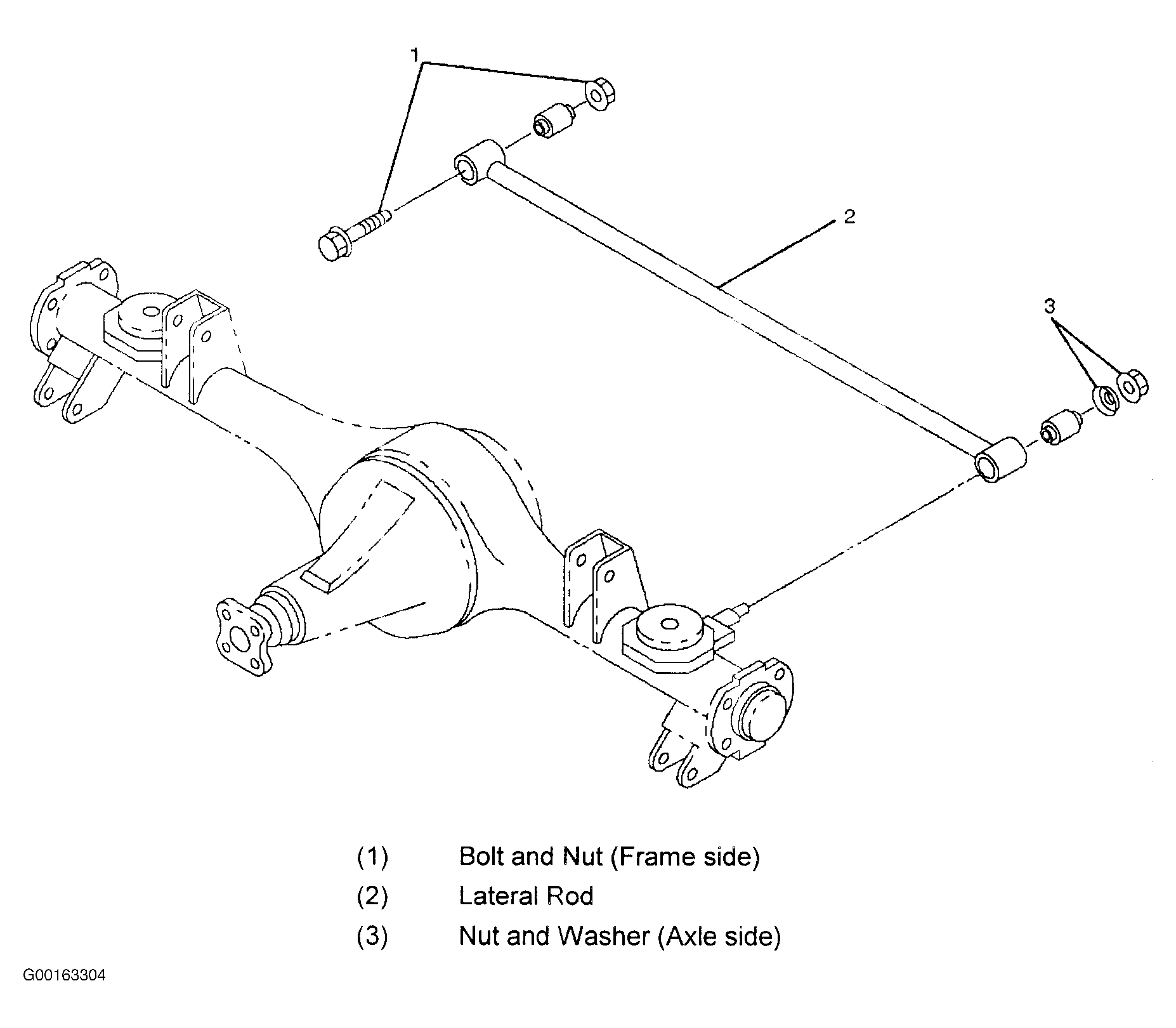

| Lateral Rod | Attached To Rear Of Drive Axle. See Figure. |

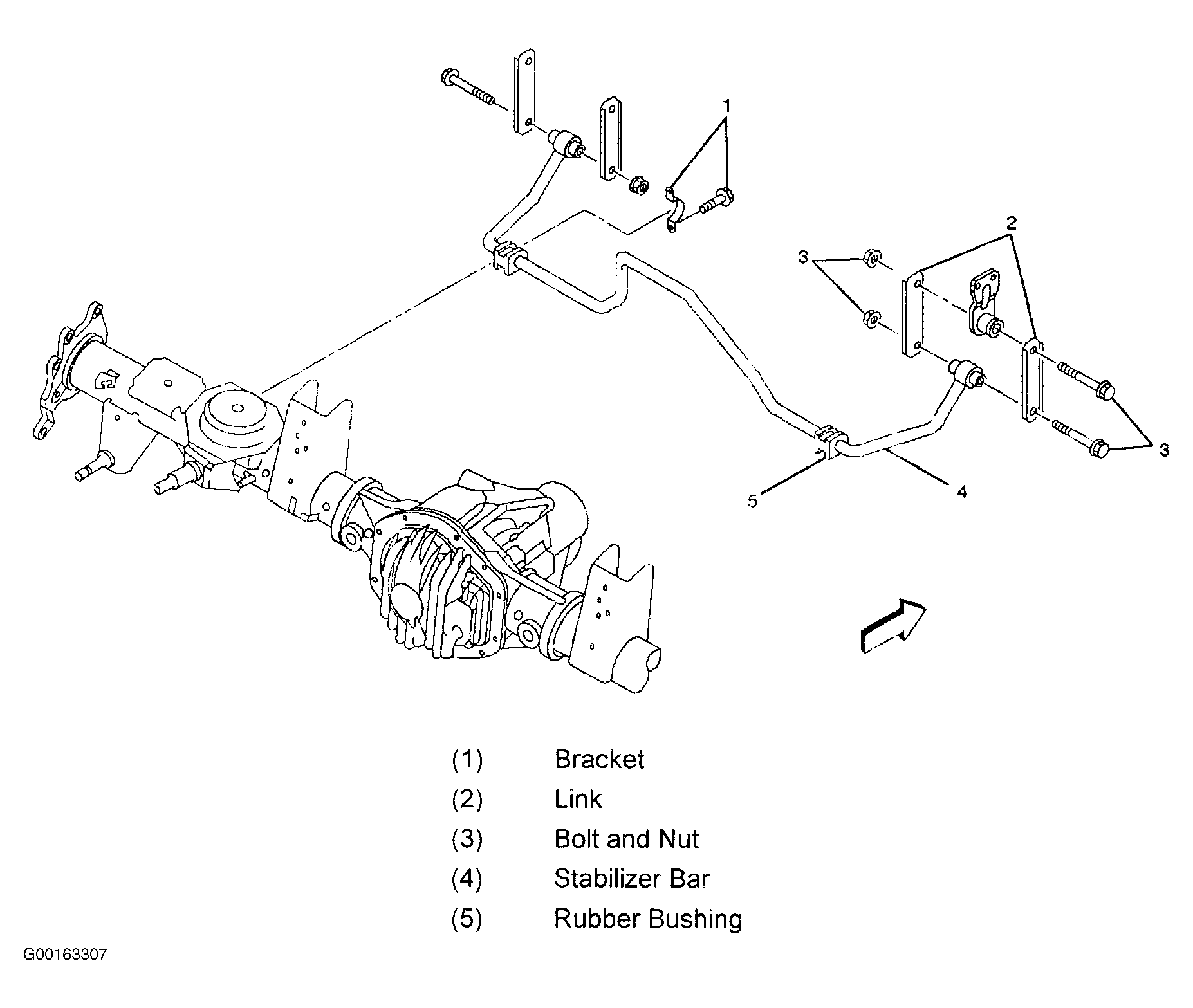

| Stabilizer Bar | Attached To Rear Of Drive Axle. See Figure. |
