Mode $06 Data Definitions For J1850/Class 2 Diagnostic Data Link (Except 1996-1999 Oasis)

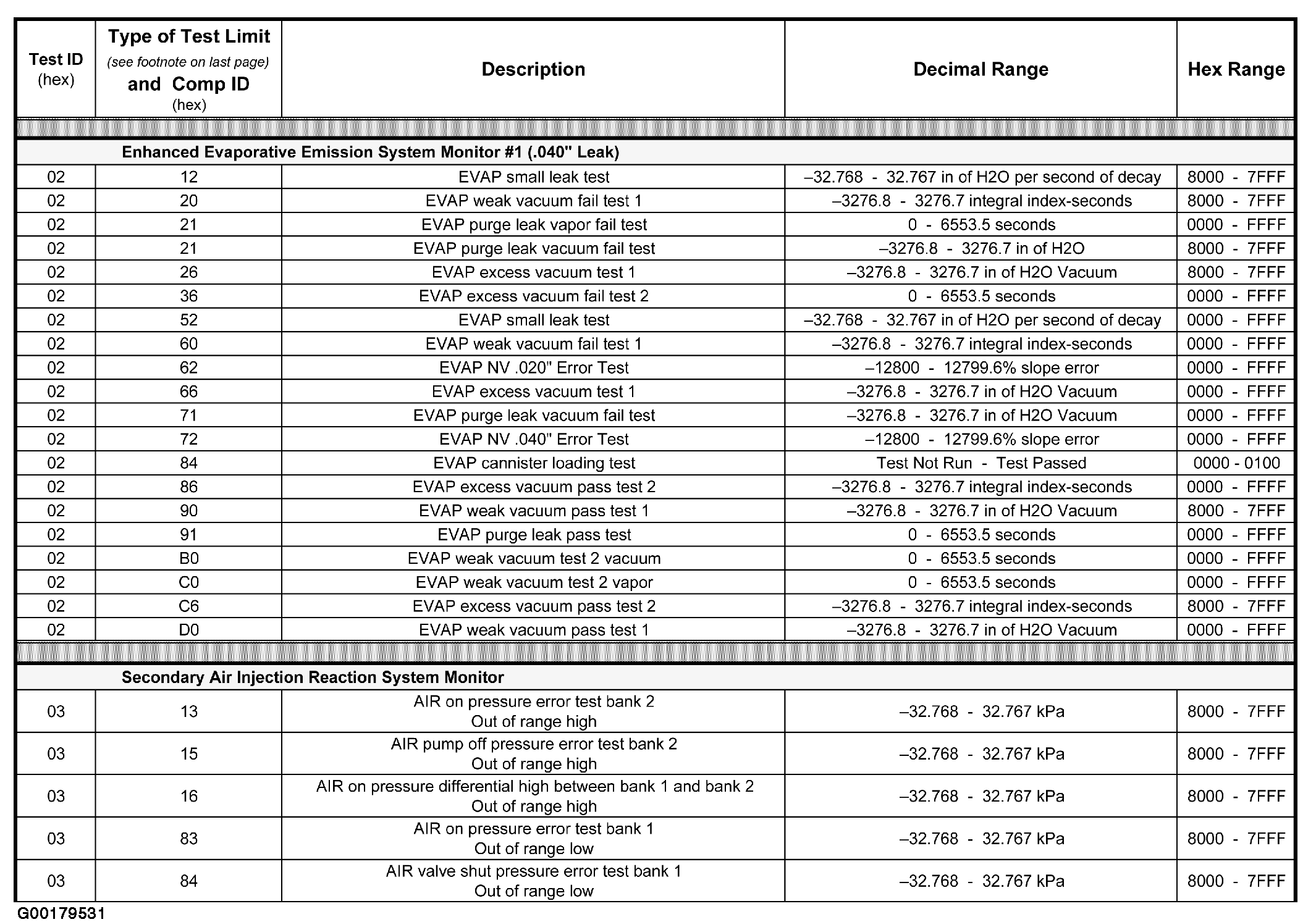

Fig 1: Mode $06 Data Definitions For J1850/Class 2 (1 Of 6)

Courtesy of ISUZU MOTOR CO.

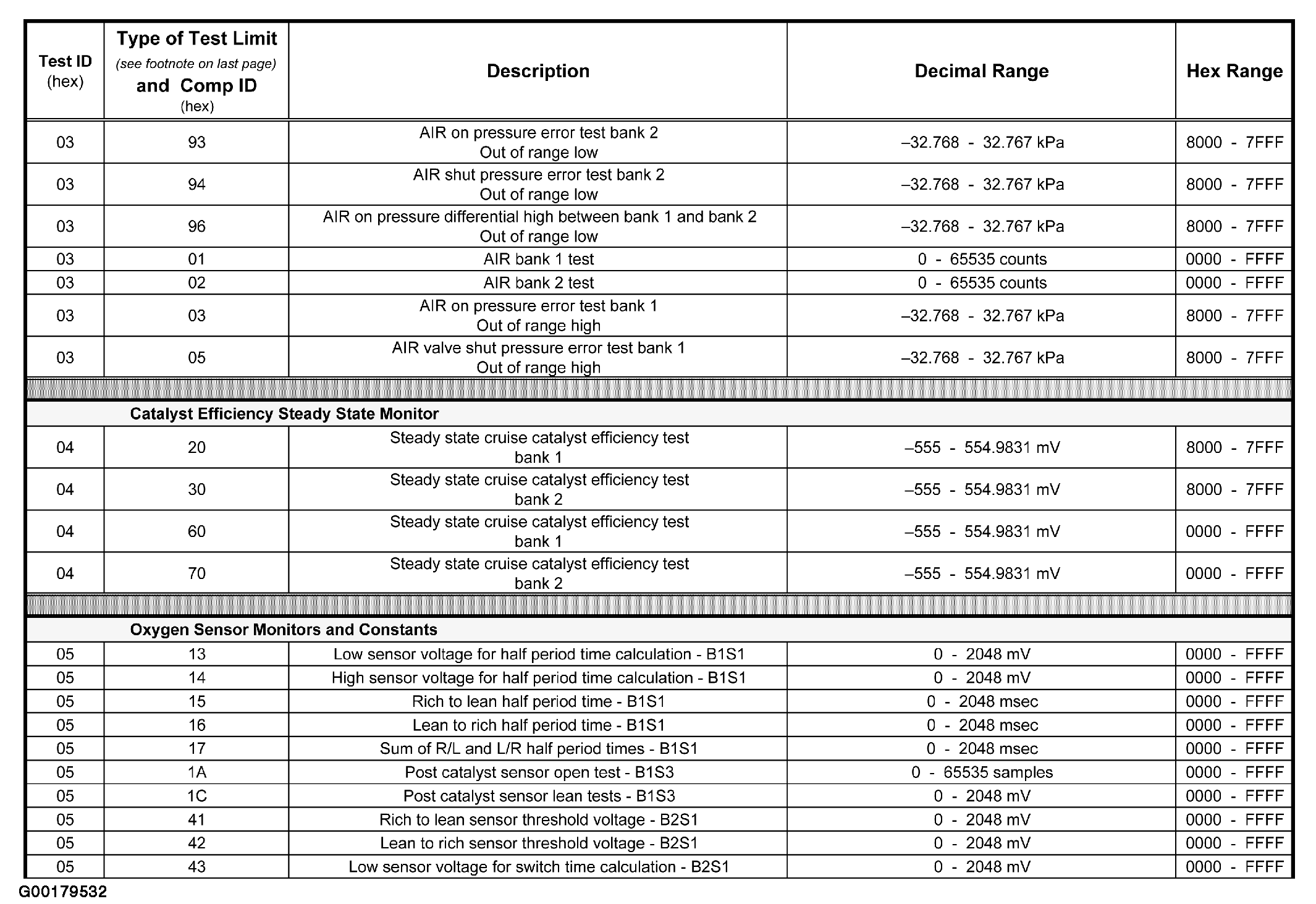

Fig 2: Mode $06 Data Definitions For J1850/Class 2 (2 Of 6)

Courtesy of ISUZU MOTOR CO.

Fig 3: Mode $06 Data Definitions For J1850/Class 2 (3 Of 6)

Courtesy of ISUZU MOTOR CO.

Fig 4: Mode $06 Data Definitions For J1850/Class 2 (4 Of 6)

Courtesy of ISUZU MOTOR CO.

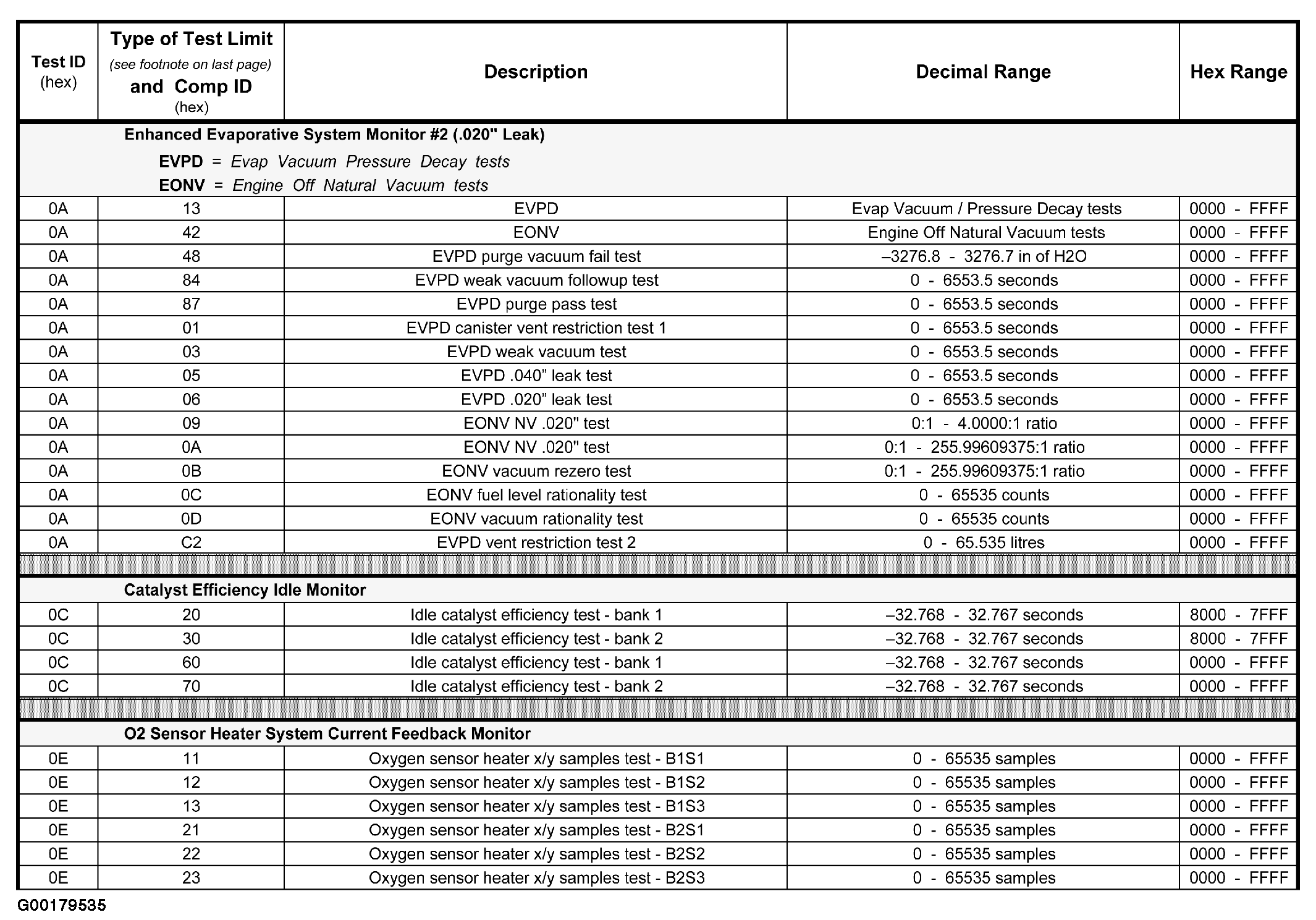

Fig 5: Mode $06 Data Definitions For J1850/Class 2 (5 Of 6)

Courtesy of ISUZU MOTOR CO.

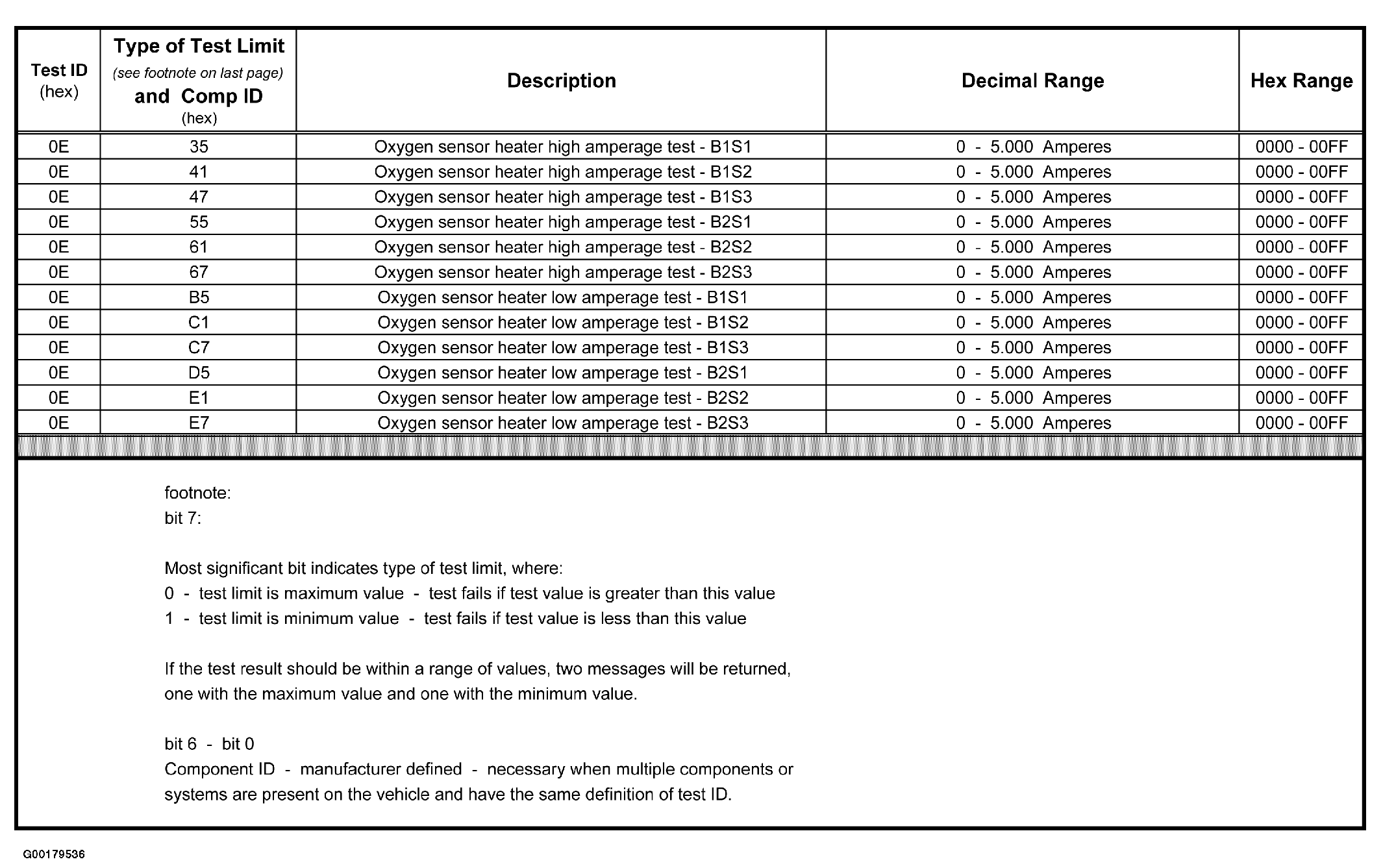

Fig 6: Mode $06 Data Definitions For J1850/Class 2 (6 Of 6)

Courtesy of ISUZU MOTOR CO.
