Fuse Panel Location

There are 2 fuse boxes on Rodeo models. The dash fuse box is in the lower left side of the instrument panel and the underhood fuse and relay box is located beside the battery.

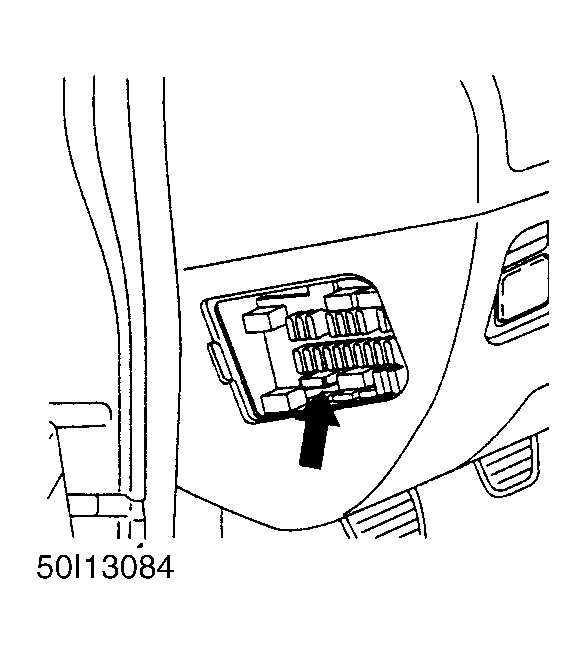

Fig 1: Instrument Panel Fuse Location

Courtesy of ISUZU MOTOR CO.

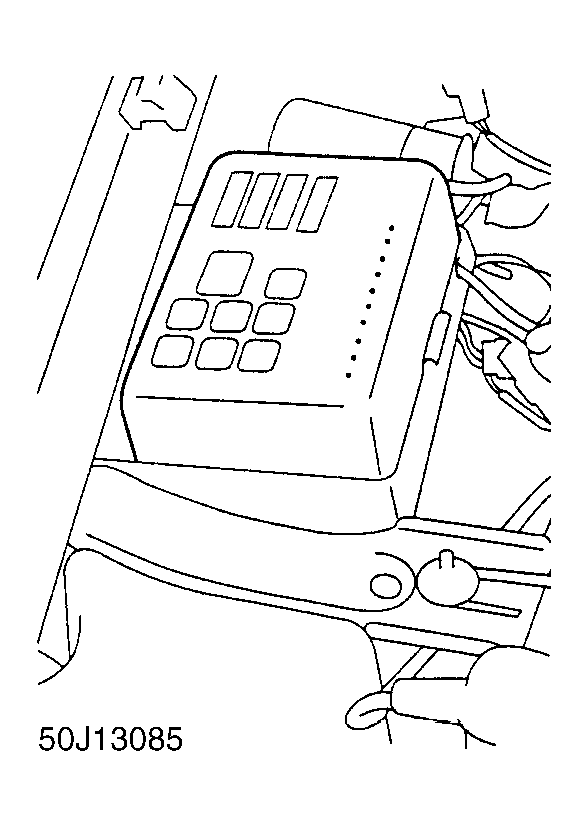

Fig 2: Engine Compartment Fuse Panel Location

Courtesy of ISUZU MOTOR CO.
