Anti-Theft Indicator Test: Trooper

Remove anti-theft indicator. See ANTI-THEFT INDICATOR  under REMOVAL & INSTALLATION. Connect negative battery lead to indicator terminal No. 1 (Light Green/Black wire) and positive lead to terminal No. 2 (Light Green/White wire). See Fig 1. Ensure indicator lights up. Replace indicator if necessary.

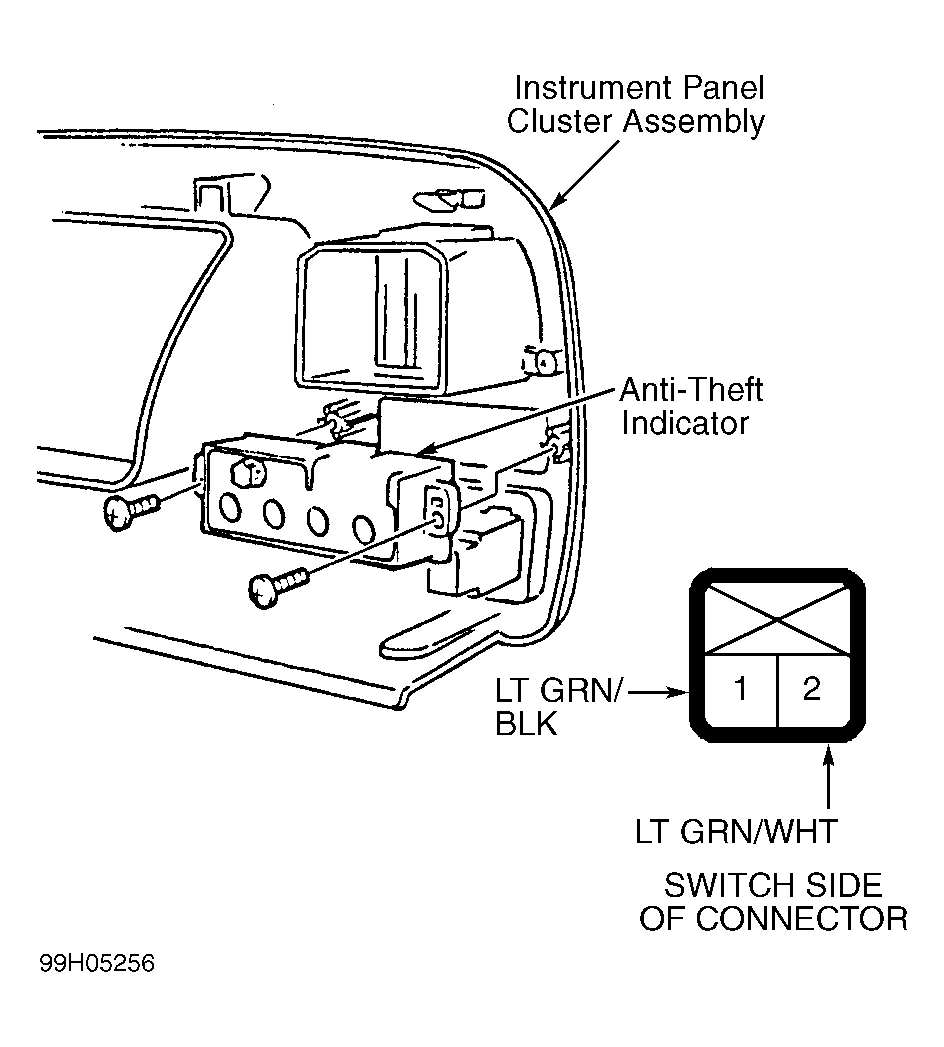

Fig 1: Testing Anti-Theft Indicator (Trooper)

Courtesy of ISUZU MOTOR CO.
