There are SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

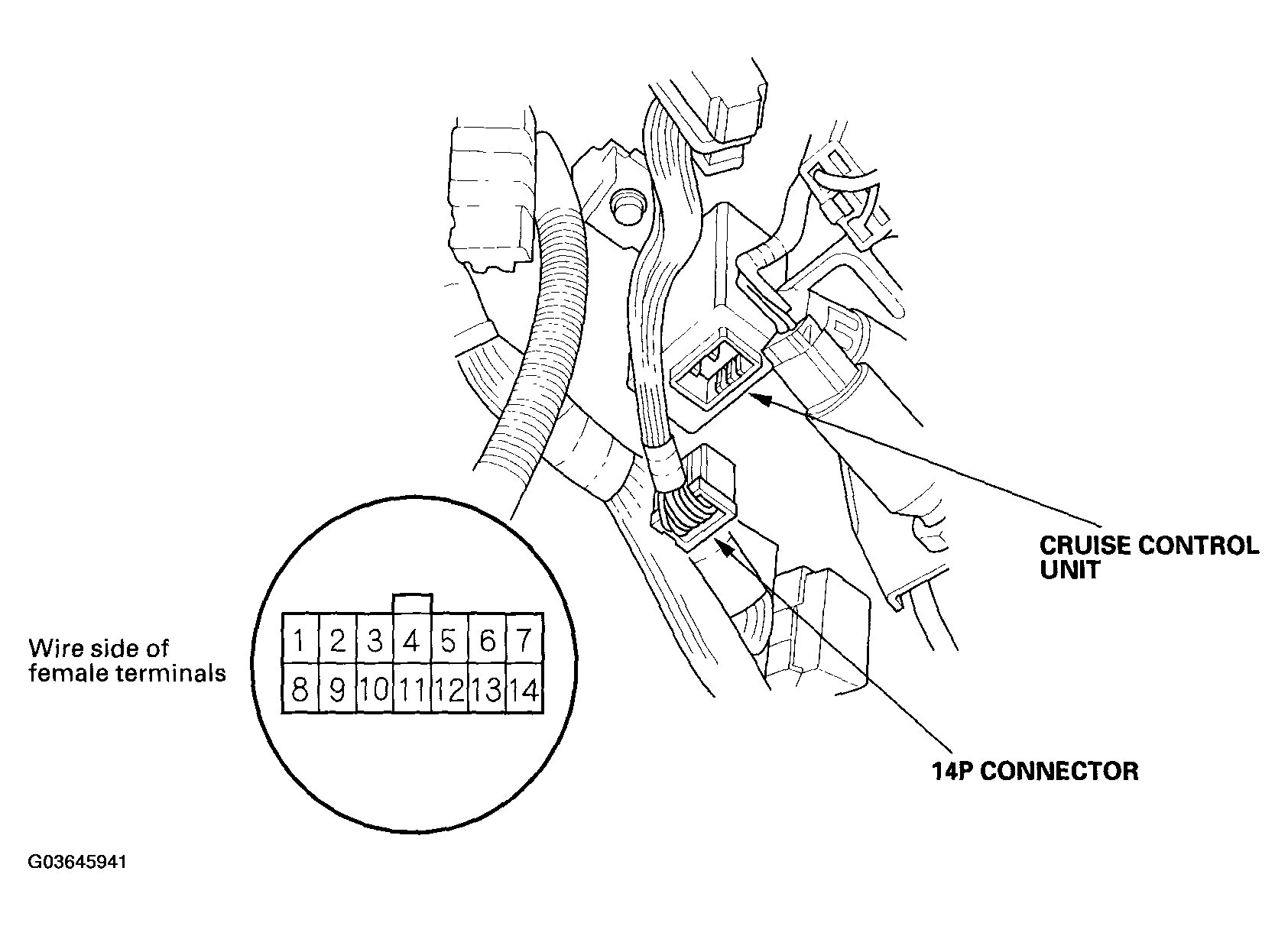

- Disconnect the 14P connector from the control unit.
- Inspect the connector and socket terminals to make sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.
- With the 14P connector disconnected, do these input tests.
- If test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the cruise control unit may by faulty. Substitute a known-good cruise control unit, and retest. If the system works properly, replace the cruise control unit.
CRUISE CONTROL UNIT INPUT TEST (2003-05 MODELS)
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if result is not obtained |
|---|---|---|---|---|
| 1 | BRN/BLK | Connect battery power | Check the operation of the magnetic clutch: Clutch should click and output link should be locked. |
|
| 3 | BLK | Under all conditions | Check for continuity to ground: There should be continuity. |
|
| 4 | BLK/RED | Ignition switch ON (II) | Check for voltage to ground: There should be battery voltage. |
|
| 5 | WHT/BLK | Brake pedal pressed, then released | Check for voltage to ground: There should be battery voltage with the pedal pressed, and 0 V with the pedal released. |
|
| 6 | GRY/RED | Set/decel switch pressed | Check for voltage to ground: There should be battery voltage. When testing terminal No. 6, there should be no voltage on terminal No. 7. |
|
| 7 | LT GRN/BLK | Resume/accel switch pressed | Check for voltage to ground: There should be battery voltage. When testing terminal No. 7, there should be no voltage on terminal No. 6. | |
| 9 | BRN/YEL | Connect battery power to the BRN/YEL terminal and ground to the BRN/WHT terminal | Check the operation of the actuator motor: You should hear the motor. |
|
| 11 | BRN/WHT | |||
| 10 | BLU/YEL | Ignition switch ON (II) | Attach to ground: CRUISE CONTROL indicator in the gauge assembly should comes on. |
|
| 12 | BLU/WHT | Ignition switch ON (II) and cruise control main switch ON; raise the front of the vehicle, and rotate one wheel slowly while holding the other wheel
NOTE:
This input test must be done with the 14P connector reconnected.
|
Check for voltage between the BLU/WHT (+) and BLK (-) terminal: There should be 0---5 V or more repeatedly. |
|
| 13 | LT GRN | Cruise control main switch ON, then OFF | Check for continuity between No. 2 terminal and No. 13 terminal: There should be continuity with the cruise control main switch ON and no continuity with the cruise control main switch OFF. |
|
| 14 | M/T: LT BLU | Clutch pedal released | Check for continuity to ground: There should be continuity.
NOTE:
There should be no continuity when the clutch pedal is pressed.
|
|
| A/T: PNK | Shift lever in D, D3 | Check for continuity to ground: There should be continuity.
NOTE:
There should be no continuity when shift lever is in other positions.
|
|
|
| 2 | PNK | Reconnect the cruise control unit 14P connector, turn the ignition switch ON (II), and cruise control main switch ON | Check for voltage to ground: There should be battery voltage. |
|
| 8 | BLU/BLK | Reconnect the cruise control unit 14P connector, start the engine, press the cruise control main switch ON, and drive the vehicle at speeds over 25 mph (40 km/h) with the cruise control set | Check for voltage to ground: There should be about 1V |
|
