Cruise Control Combination Switch Test/Replacement

WARNING: This page is about a different car, the 2007 Honda Accord, 2006 Honda Accord, 2005 Honda Accord, 2004 Honda Accord, and 2003 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the two screws, then disconnect the connector, and remove the switch.

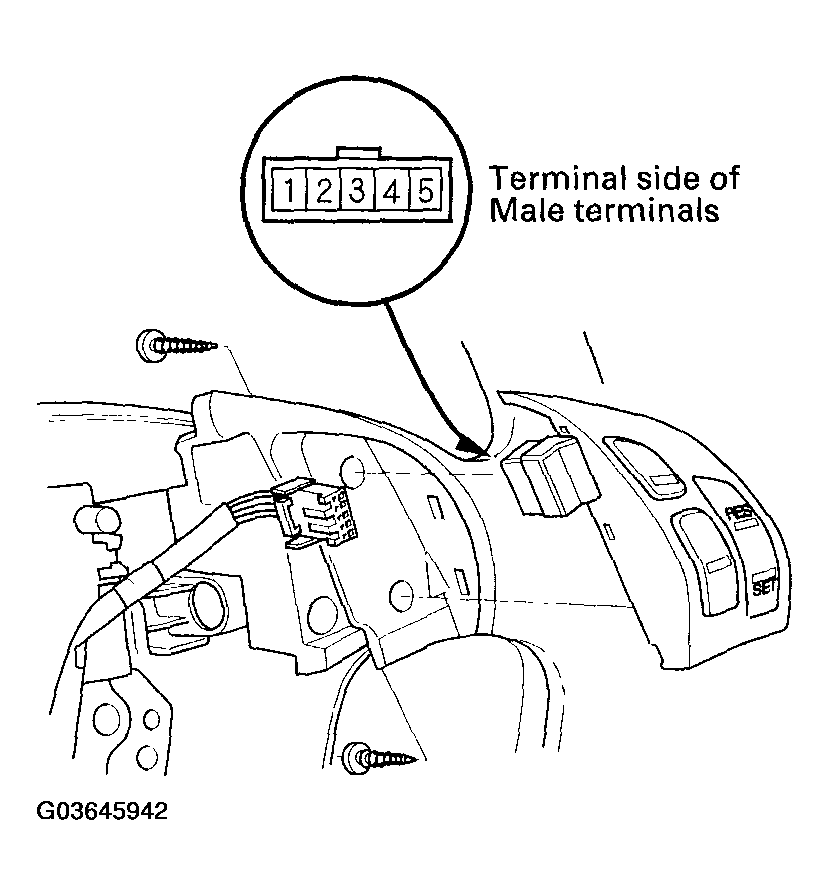

Fig 1: Disconnecting Connector And Removing Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to Fig 2 .
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.

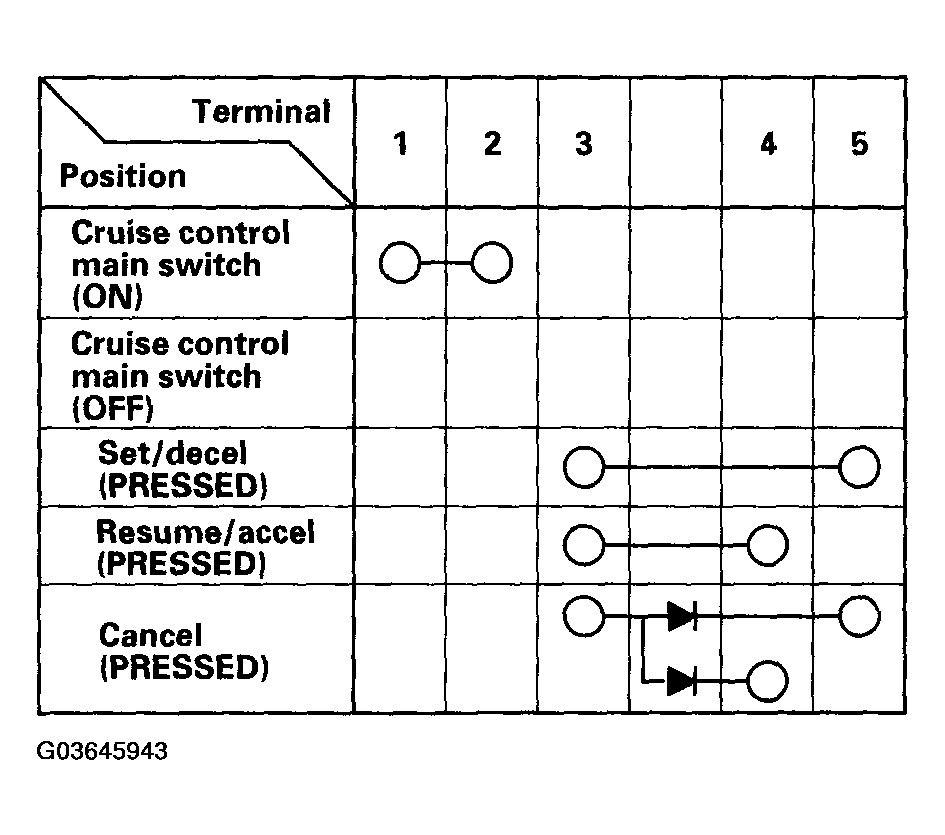

  Fig 2: Checking Continuity Between Terminals Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
