Audio Unit Removal/Installation

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations, precautions and procedures before performing repairs or service. See AIR BAG RESTRAINTS SYSTEM .

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.

Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
Disconnect the negative cable from the battery.
Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
Remove the bolts, disconnect the audio unit connectors (A) and the antenna lead (B), then remove the audio unit.

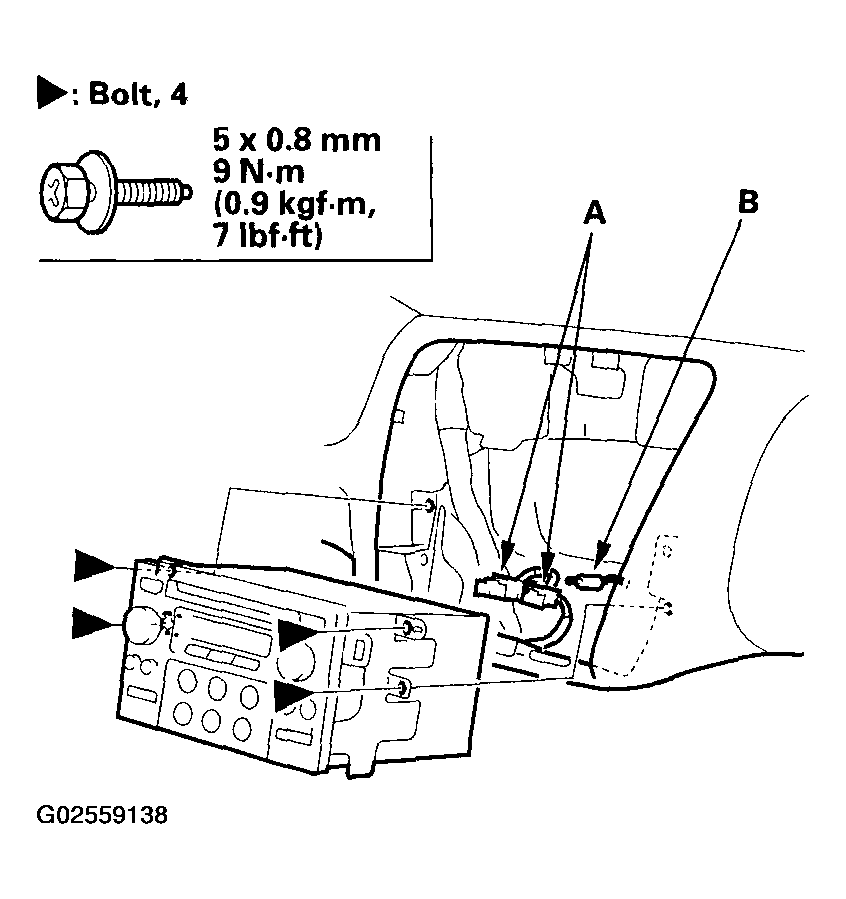

Fig 1: Removing Audio Unit Connectors & Antenna Lead
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Make sure the audio unit connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
