Audio Unit Connector Replacement
WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
When replacing an audio unit connector, match the wires to the cavities as listed in the following table. Cavities 1, 3, 11, 12, and 13 are not used.

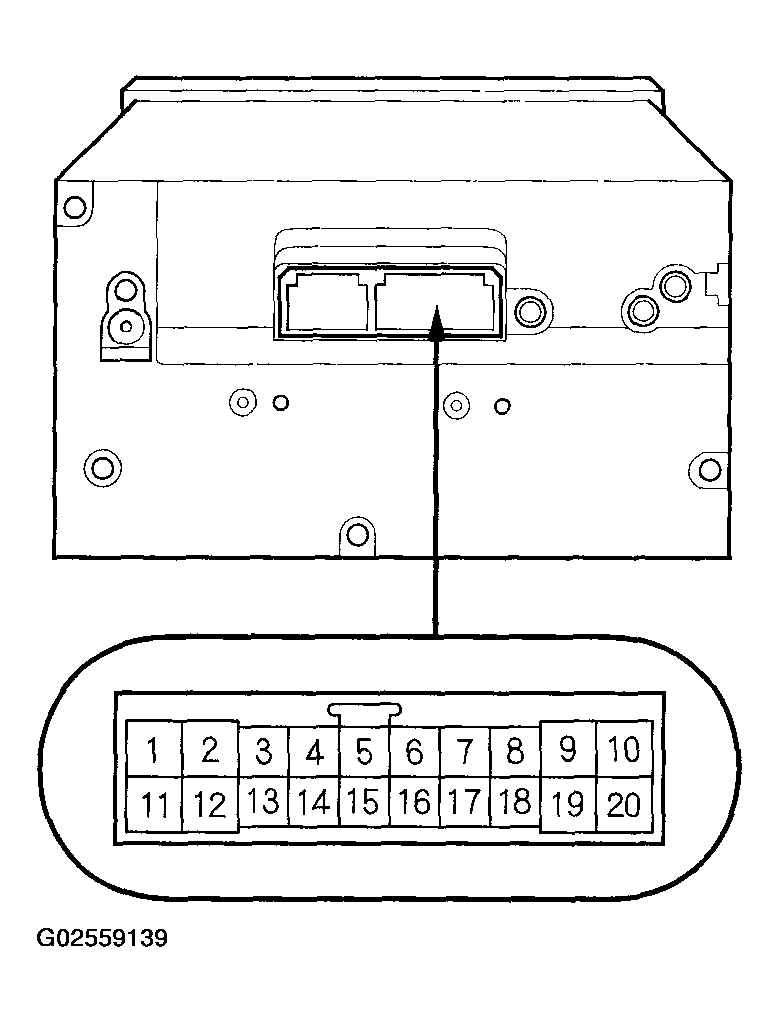

Audio Unit Connector Identification
| Cavity | Wire | Connects To | ||
|---|---|---|---|---|
| 2 | WHT/RED | ACC (Main stereo power supply) | ||
| 4 | BLU | Security in | ||
| 5 | RED/YEL | Right rear speaker ( + ) | ||
| 6 | BLU/YEL | Left rear speaker ( + ) | ||
| 7 | RED/GRN | Front passenger's speaker ( + ) Right tweeter ( + ) | ||
| 8 | BLU/GRN | Driver's door speaker ( + ) Left tweeter ( + ) | ||
| 9 | RED/BLK | Lights-on signal | ||
| 10 | WHT/GRN | Constant power | ||
| 14 (1) | BLK | Security out | ||
| 15 | BRN/WHT | Right rear speaker ( - ) | ||
| 16 | GRY/WHT | Left rear speaker ( - ) | ||
| 17 | BRN/BLK | Front passenger's door speaker ( - ) Right tweeter ( - ) | ||
| 18 | GRY/BLK | Driver's door speaker ( - ) Left tweeter ( - ) | ||
| 19 | RED | Multiplex control unit, driver's | ||
| 20 | BLK | Ground (G502) | ||
|
||||
