Component Location Index

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

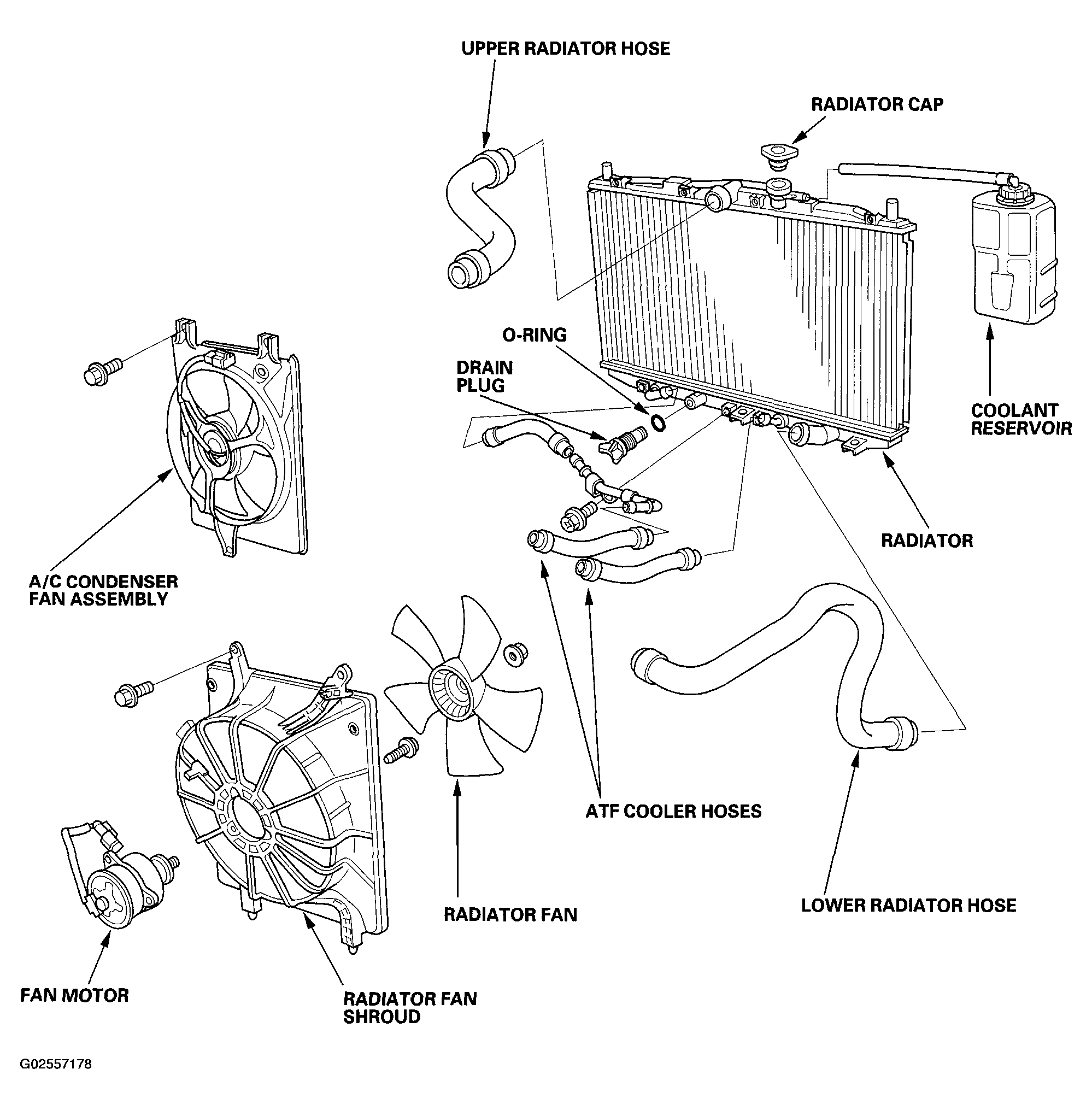

Fig 1: Locating Cooling System Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

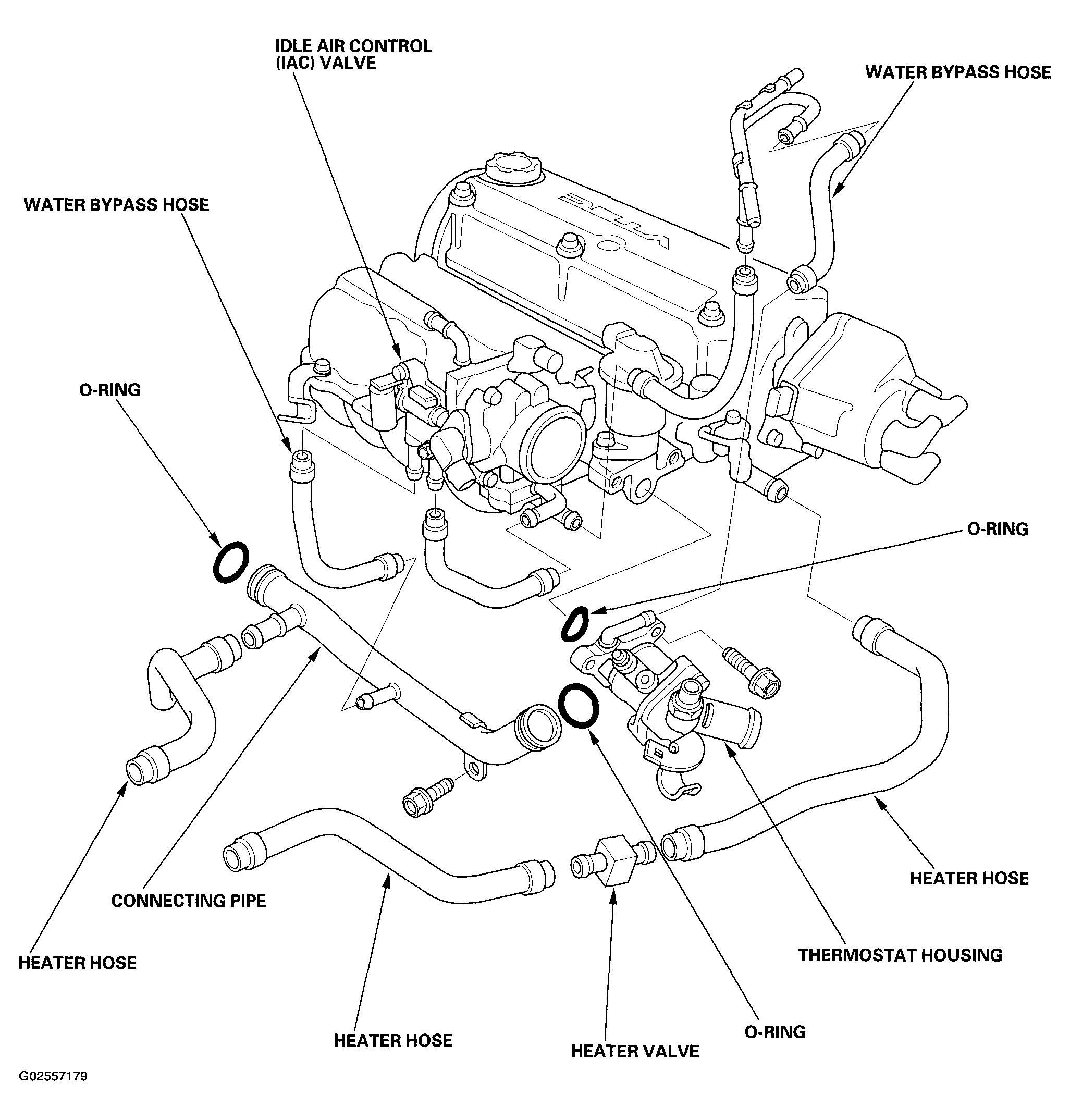

Fig 2: Locating Cooling System Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

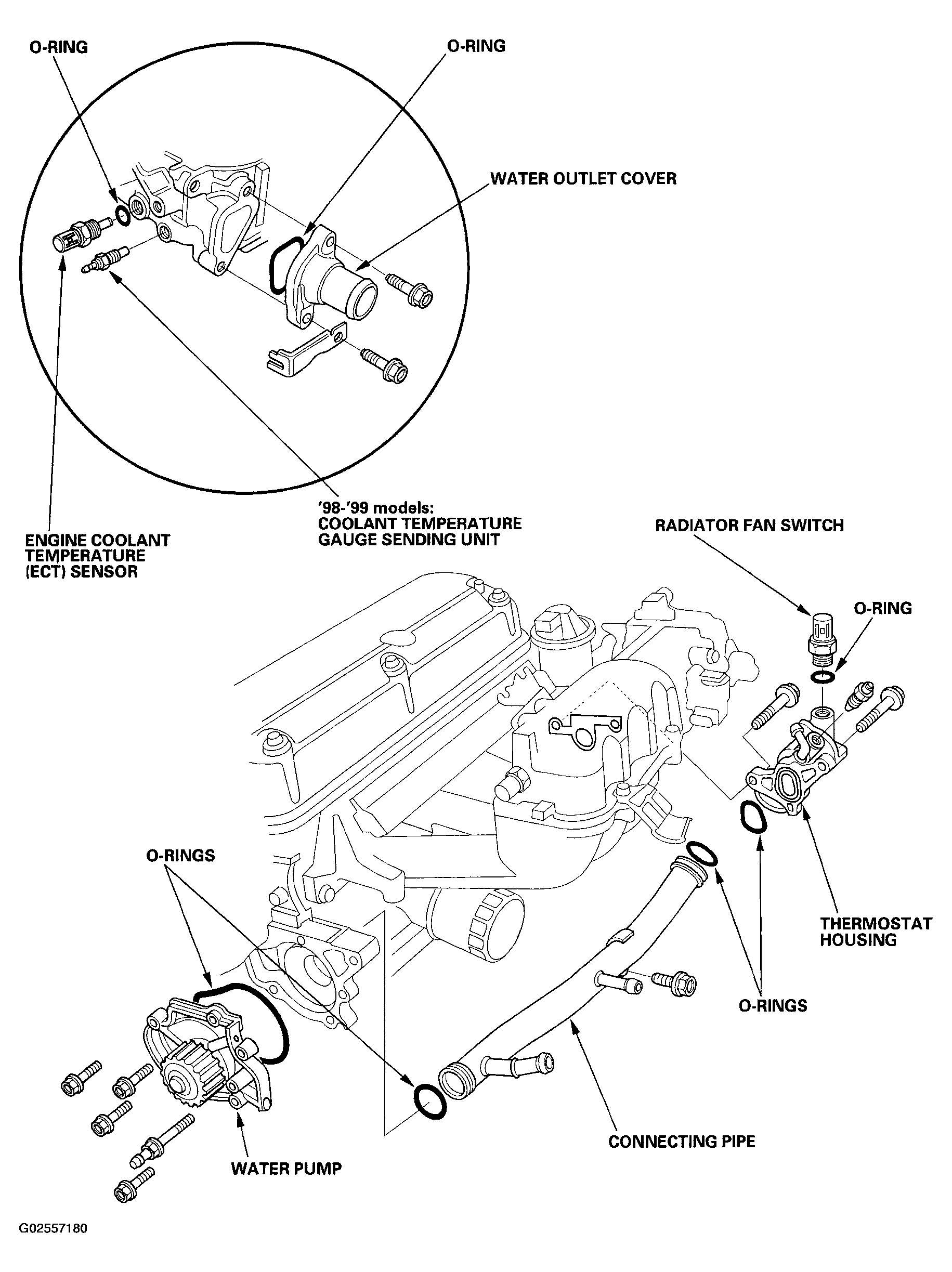

Fig 3: Locating Cooling System Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
