Section 7 (A/C-Heater System): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Isuzu Rodeo, 1999 Isuzu Amigo, 1999 Honda Passport, 1998 Isuzu Rodeo, and 1998 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.

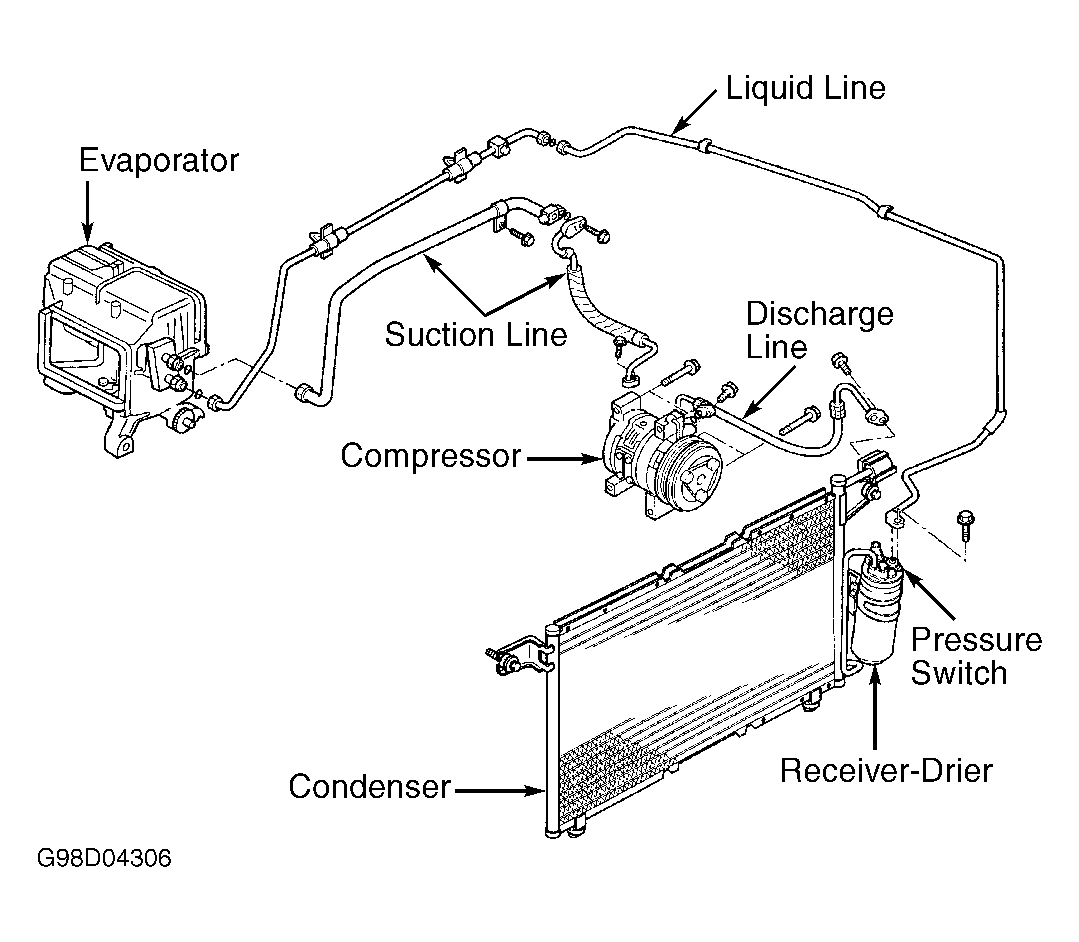

The A/C-heating system blends cool and warm air in correct proportions to meet cooling/heating requirements. System components include evaporator, compressor, condenser, receiver-drier and expansion valve. See Fig 1 .
The compressor is controlled by an electronic thermostat located on evaporator housing. Compressor is protected by a pressure switch that shuts compressor off when system pressure exceeds or drops below predetermined levels.
