Clutch Pedal Position Switch Test

WARNING: This page is about a different car, the 2002 Honda Accord, 2001 Honda Accord, 2000 Honda Accord, 1999 Honda Accord, and 1998 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 3P connector from the clutch pedal position switch.

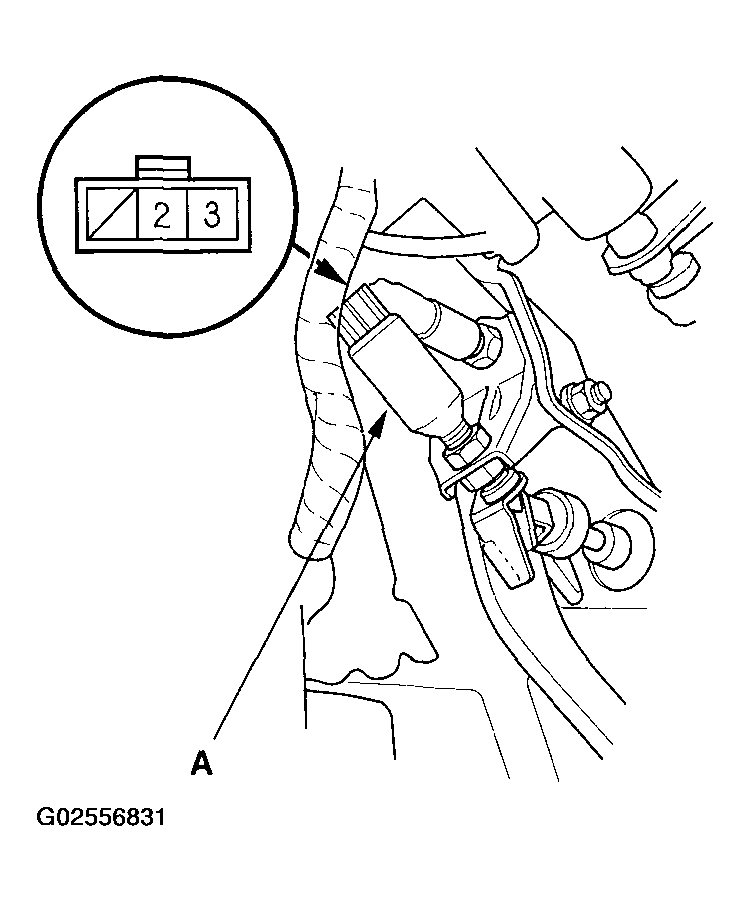

Fig 1: Identifying Clutch Pedal Position Switch 3P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch pedal position switch.
Check for continuity between the terminals according to the table.

Fig 2: Clutch Pedal Position Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, replace the switch or adjust the pedal height (see CLUTCH PEDAL & CLUTCH PEDAL POSITION SWITCH ADJUSTMENT ).
