Mirror Control Panel Switches

Turn ignition off. Remove mirror control panel from center console. Mirror control panel contains mirror control switch, defogger switch and folding switch. See Fig 1 . Using an ohmmeter, check for continuity between specified terminals for each switch while operating switch in specified positions. See Fig 2 . Replace any switch that does not test as specified.

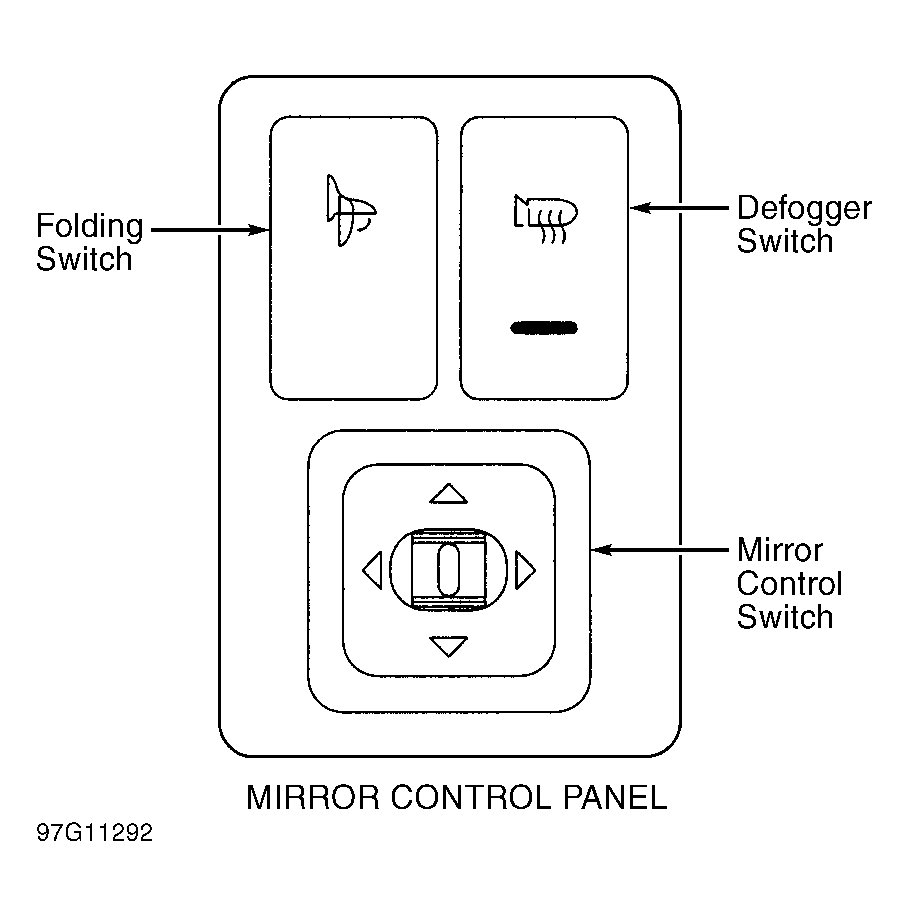

Fig 1: Identifying Mirror Control Panel Switches
G97G11292Courtesy of ISUZU MOTOR CO.

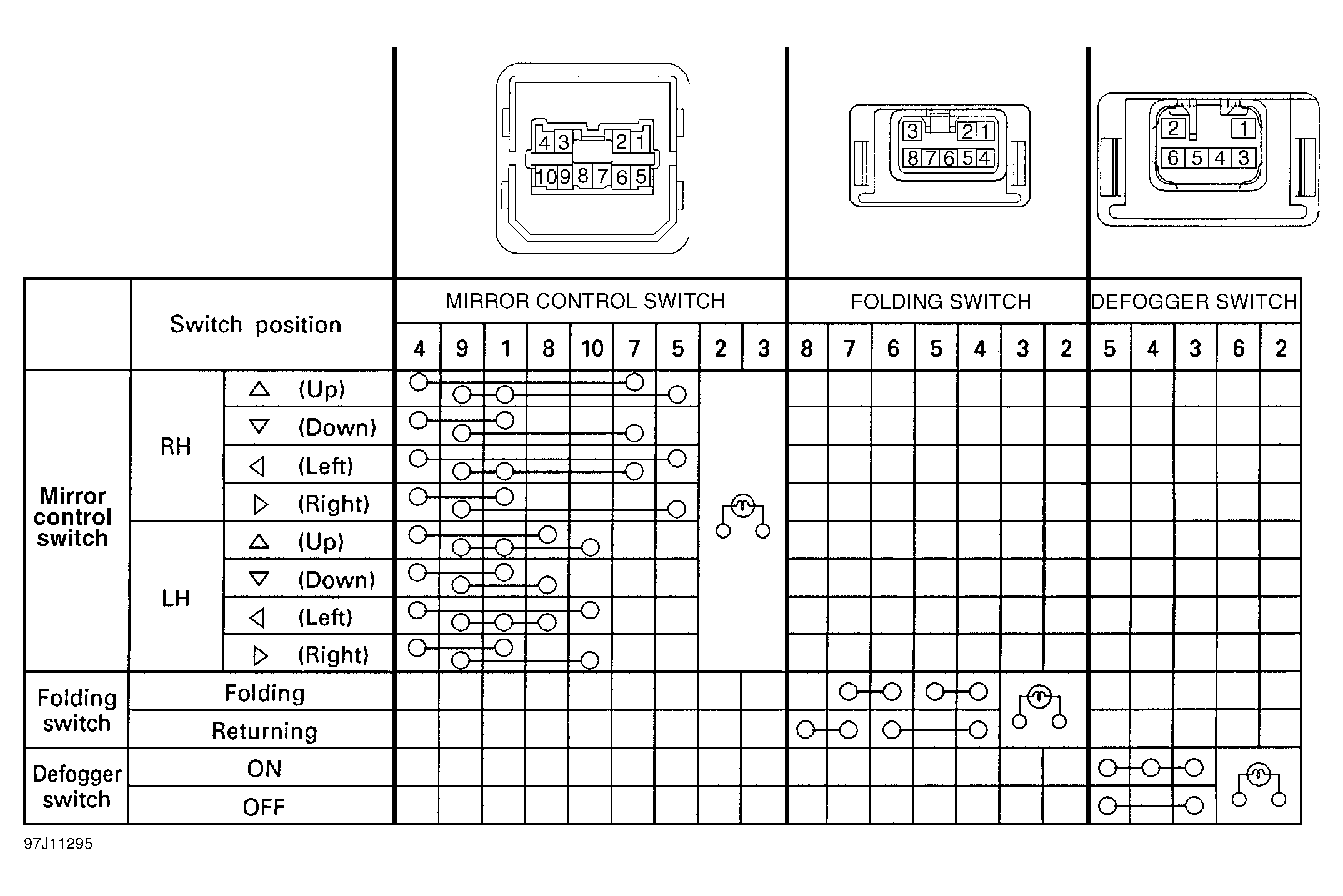

Fig 2: Testing Mirror Control Panel Switches
G97J11295Courtesy of ISUZU MOTOR CO.
