Front Wiper Switch Test

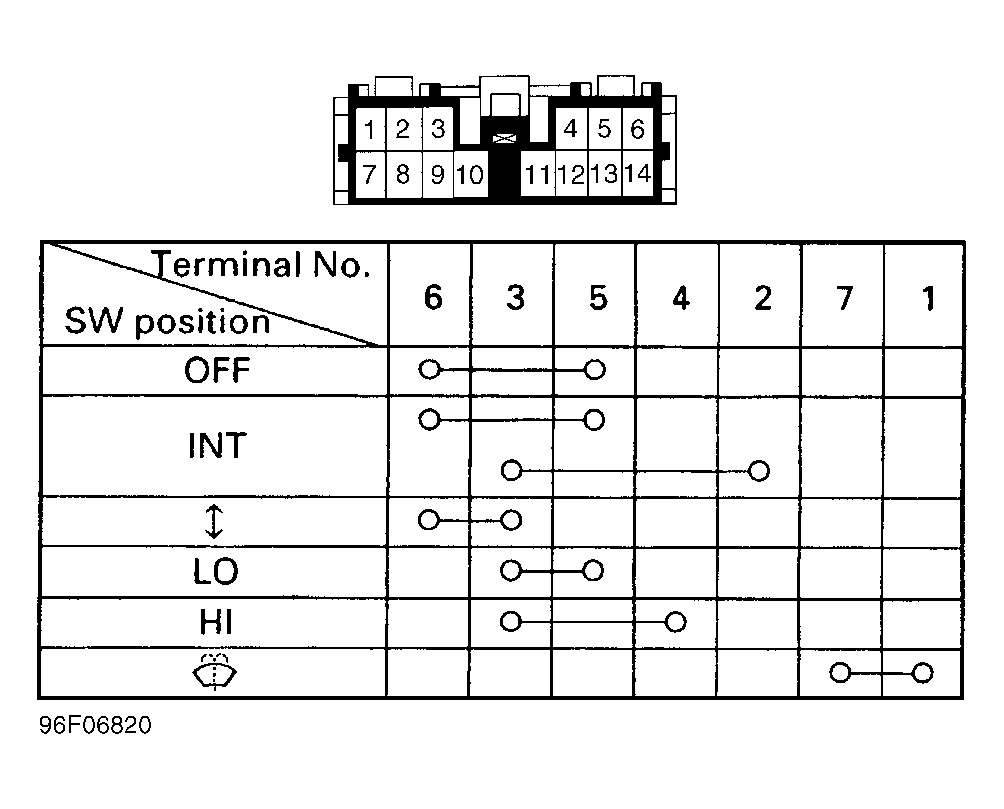

Disconnect wiper switch connector. Using ohmmeter, check continuity between specified wiper switch terminals with wiper switch in appropriate position. See Figure . Replace combination switch if readings are not as specified. See appropriate COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES .
