Combination Switch

  1. If necessary, remove cruise control switch (part of combination switch assembly. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.
  2. Disconnect cruise control switch harness connector. Check continuity between specified terminals of combination switch connector with switch in appropriate position. See Fig 1 . Replace combination switch if readings are not as specified. See COMBINATION SWITCH under REMOVAL & INSTALLATION in STEERING COLUMN SWITCHES article.

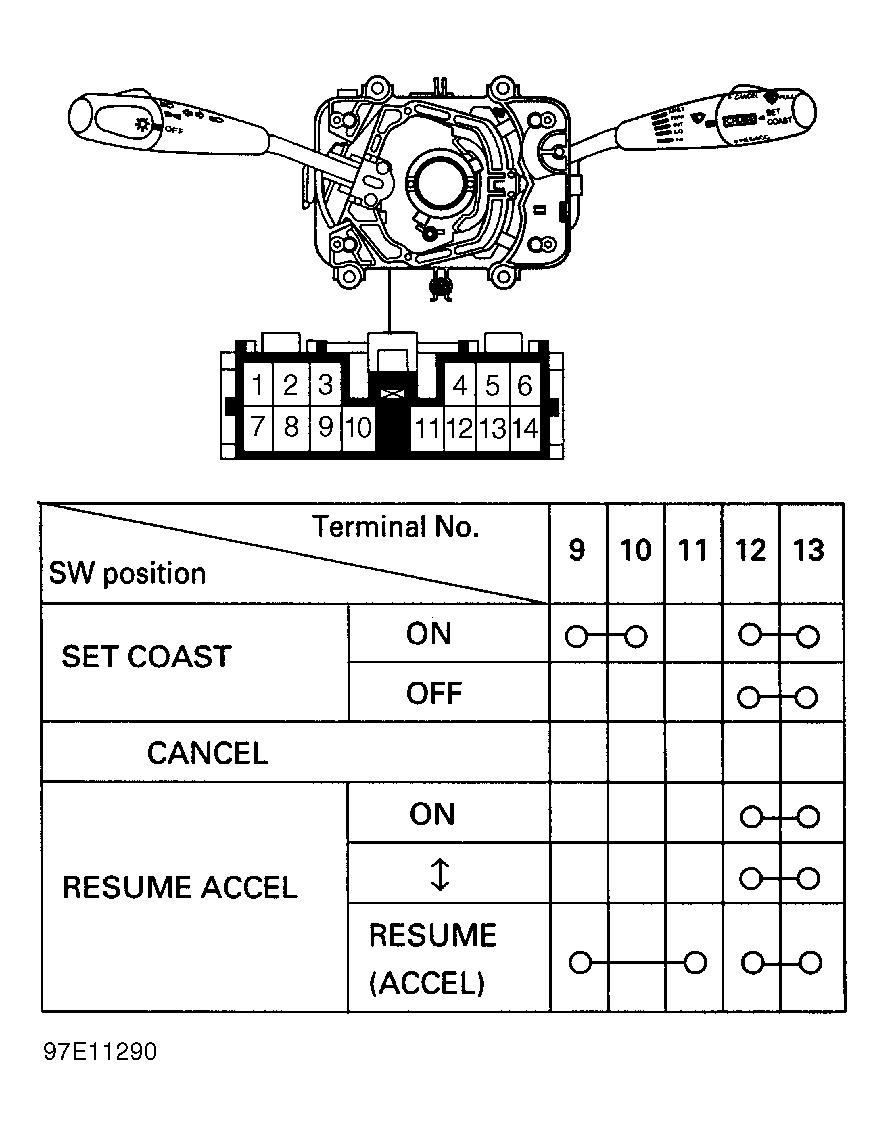

Fig 1: Identifying Combination Switch & Connector Terminals
G97E11290Courtesy of ISUZU MOTOR CO.
