Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

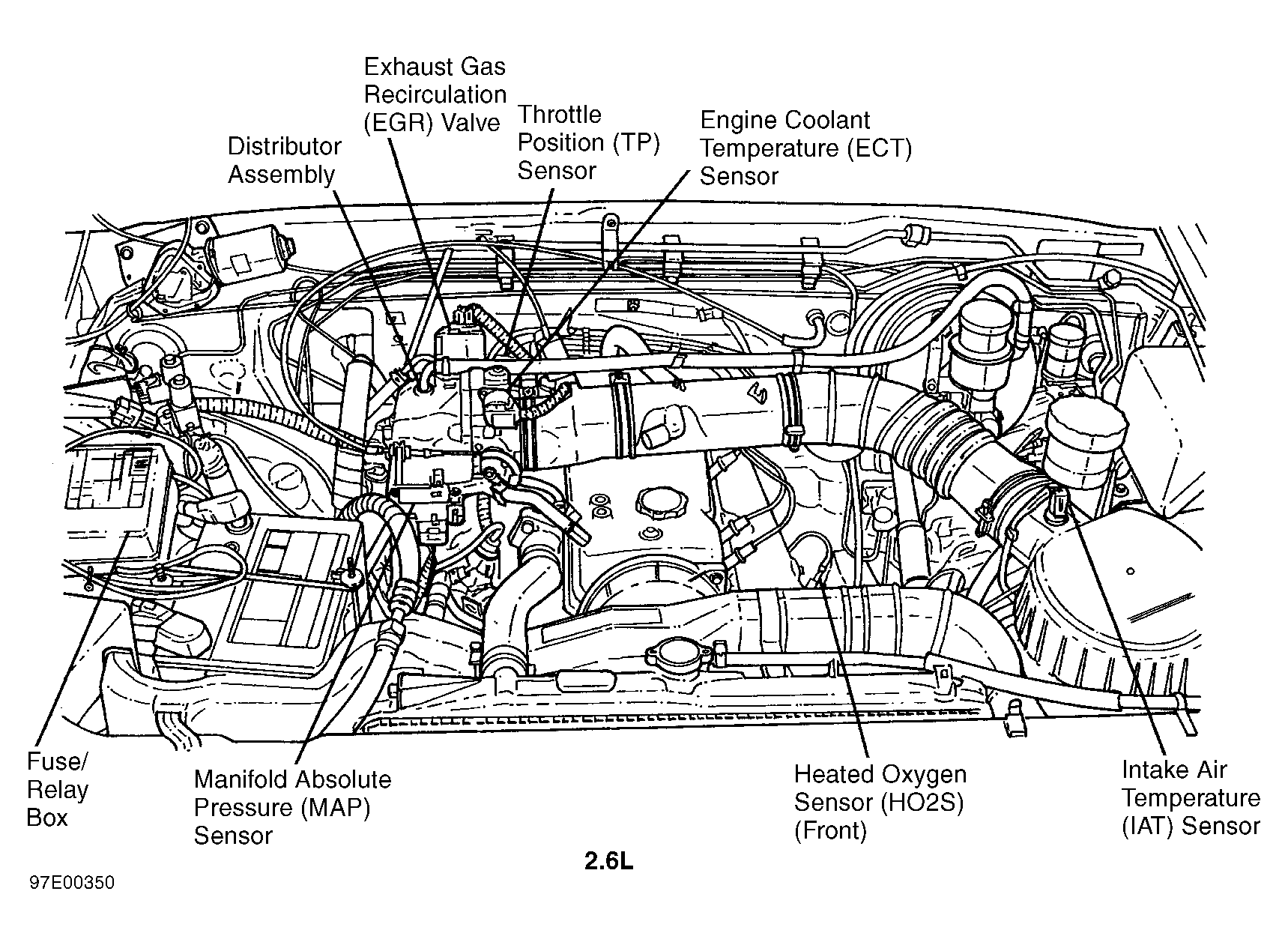

Fig 1: Engine Compartment (2.6L)
G97E00350

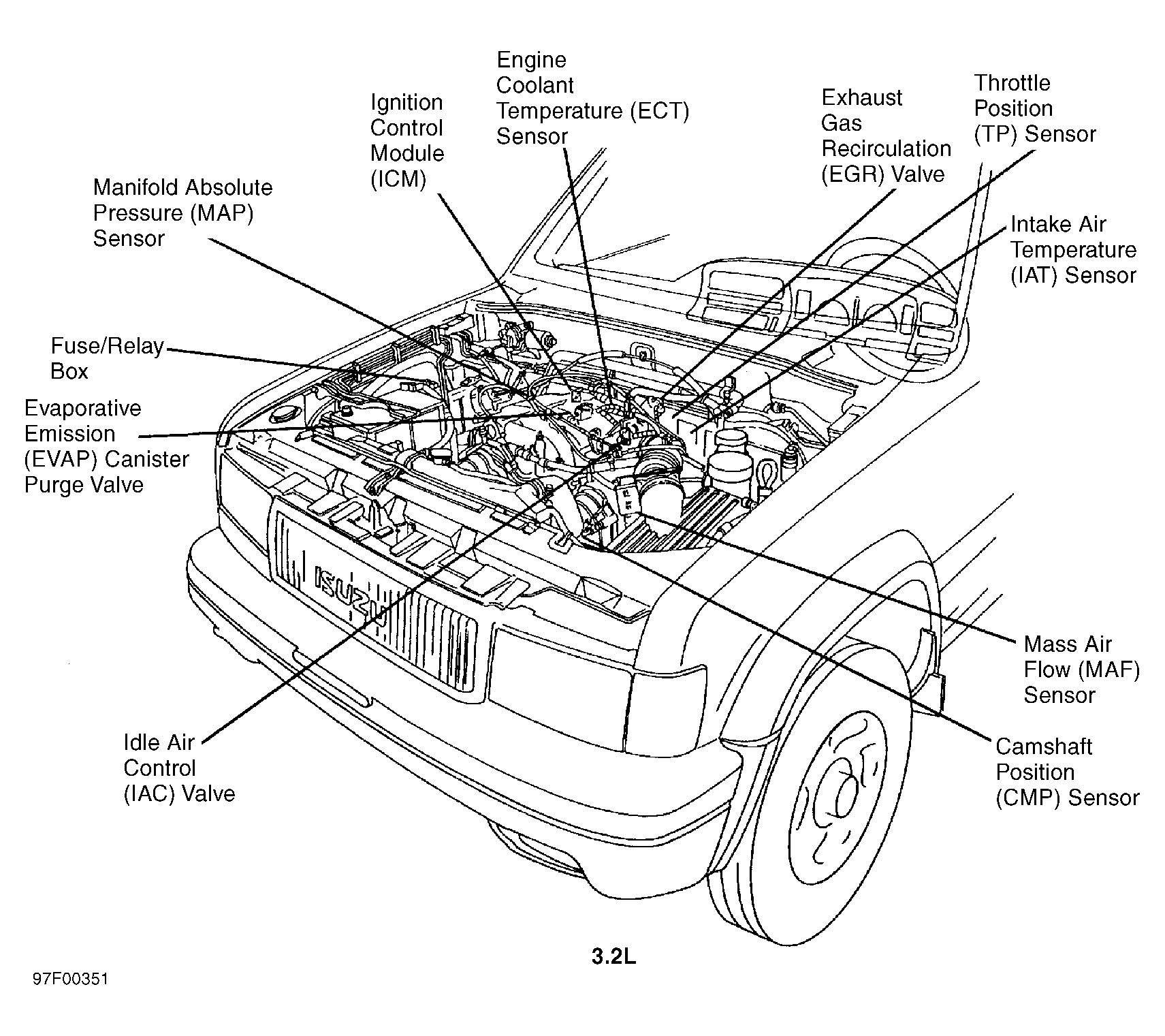

Fig 2: Engine Compartment (3.2L)
G97F00351
