Home >> Isuzu >> 1997 >> Rodeo S, 2.6 E >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.6L >> Circuit Testing >> DTC P0441 - EVAP System No Flow During Purge >> Notes

DTC P0441 - EVAP System No Flow During Purge: Notes

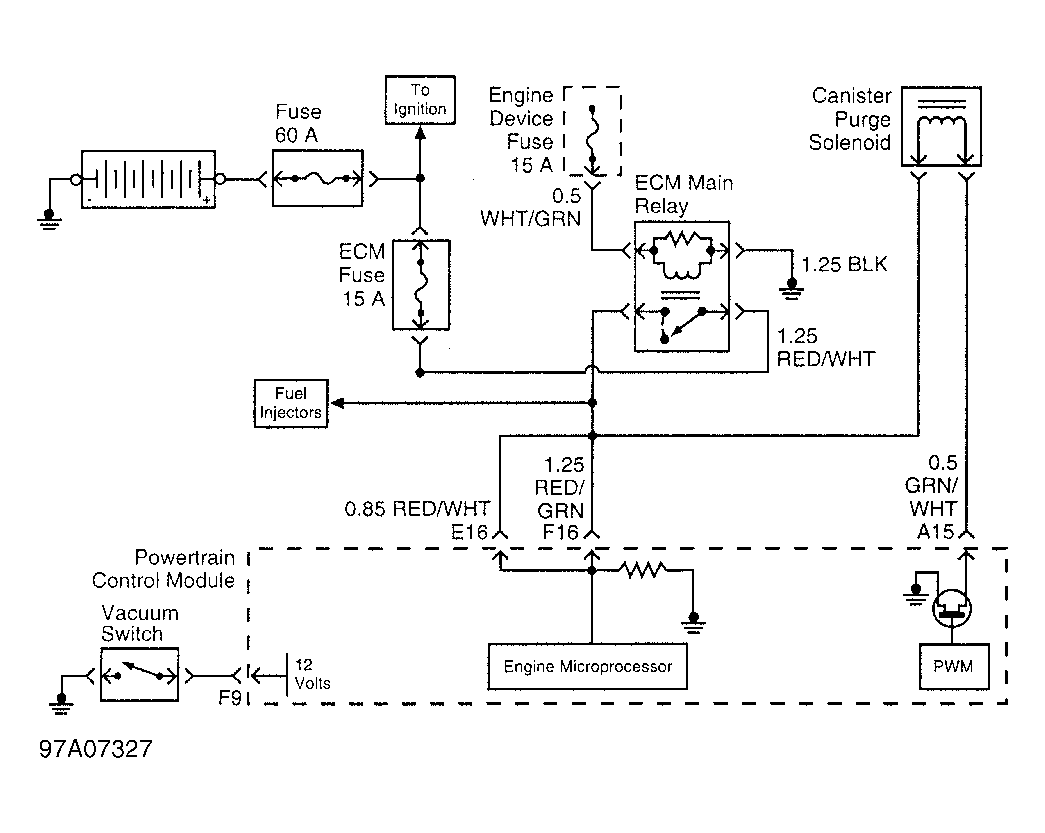

Fig 1: EVAP Circuit

G97A07327

Courtesy of ISUZU MOTOR CO.
