DTC P0201 - Injector 1 Control Circuit: Notes

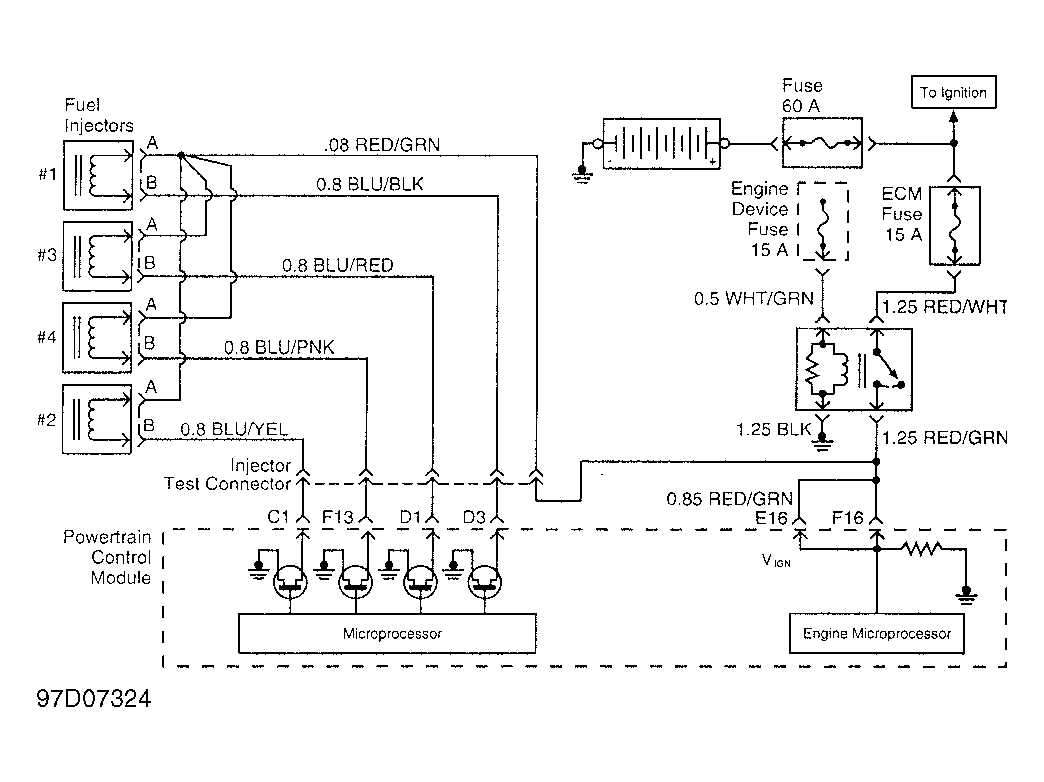

Fig 1: Fuel Injector Control Circuit

G97D07324

Courtesy of ISUZU MOTOR CO.
